Description

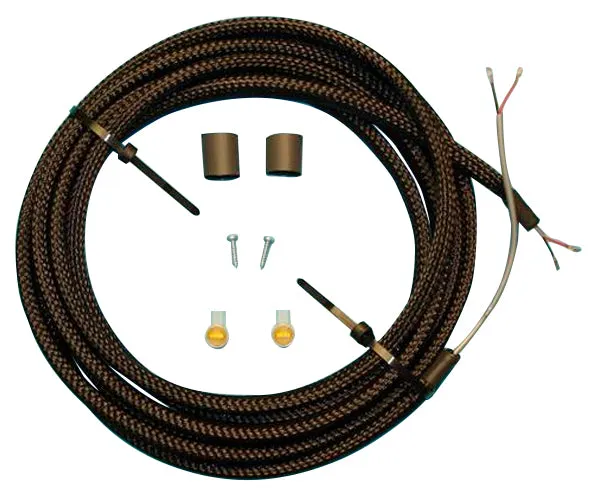

Water Moccasin Sensor Strip for Large Area Flood Detection
Undetected water damage, such as that caused by leaking pipes or corroded water heaters, cost homeowners tens of thousands of dollars each year. Such repairs are time consuming and costly to correct. Applications could include computer room sub-floor areas, telephone equipment rooms, bathrooms, laundry rooms, any areas adjacent to a water storage tank or piping. Also evaporative air conditioners, drip pans, overflows and/or drains. Using no mechanical parts the Water Sensors are triggered by a moisture bridge across the sensor contacts.
Closed Loop Sensors use an external power source to energize a built-in relay contact so battery power is not recommended. Used in a closed loop configuration, an alarm condition will occur when moisture is detected, or if power to the sensor is lost, and if the sensor should fail. The relay output can be wired directly to any alarm panel or can be used to actuate an external device, i.e. transmitter, annunciator, etc.
Features
Features
- Water Sensor Built Into a 10 Foot Mesh Water Strip Sensor
- For Perimeter or Large Area Flood Detection
- Ideal for Basement Floors/Walls, Computer Server Rooms, Water Pipes, Attics or Anywhere Water Damage Could Occur
- Automatic Reset
- 12 VDC Closed Loop
- Made in U.S.A.
Specifications
Specifications
Technical Specs: |
|||
| Operating Voltage | 12 VDC | ||
| Operating Current | 10 mA | ||
| Wire Connections | Red | 12 VDC | |
| Black | -Ground | ||
| Green | Relay Contact | ||
| White | Relay Contact | ||
| Contact Resistance | 100 mOhms | ||
| Switching Voltage | 200 VDC Max | ||
| Switching Current | 1 Amp Max | ||
| Carry Current | 1 Amp Max | ||
| Power | 10 VA Max | ||
| Operating Temperature | -40º C to 75º C | ||
| Storage Temperature | -40º C to 85º C | ||
| Polyester Mesh Temperature | 125º C Max | ||
What's in the box?
What's in the box?
- Qty 1 - Water Moccasin Sensor Strip With Relay Contact
