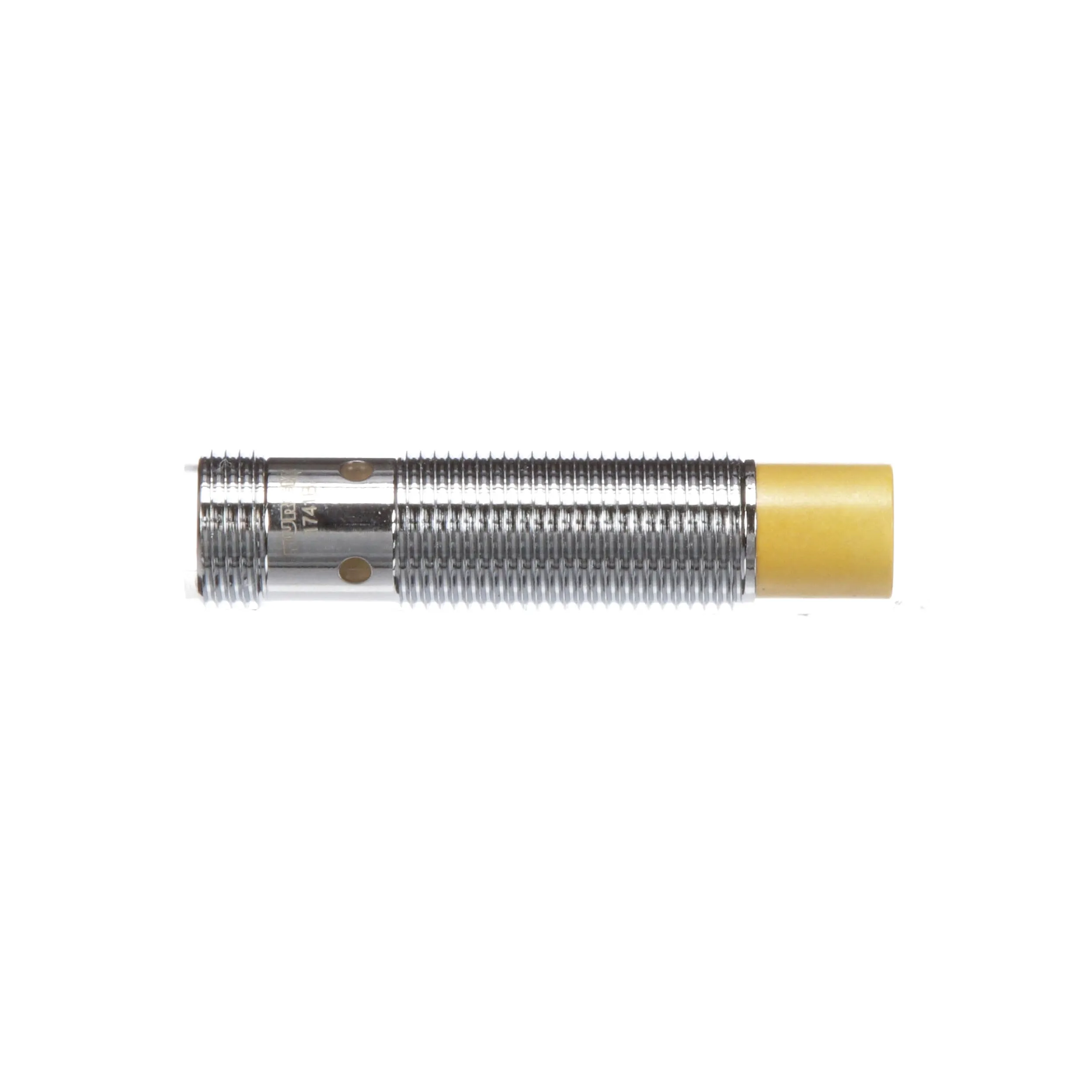

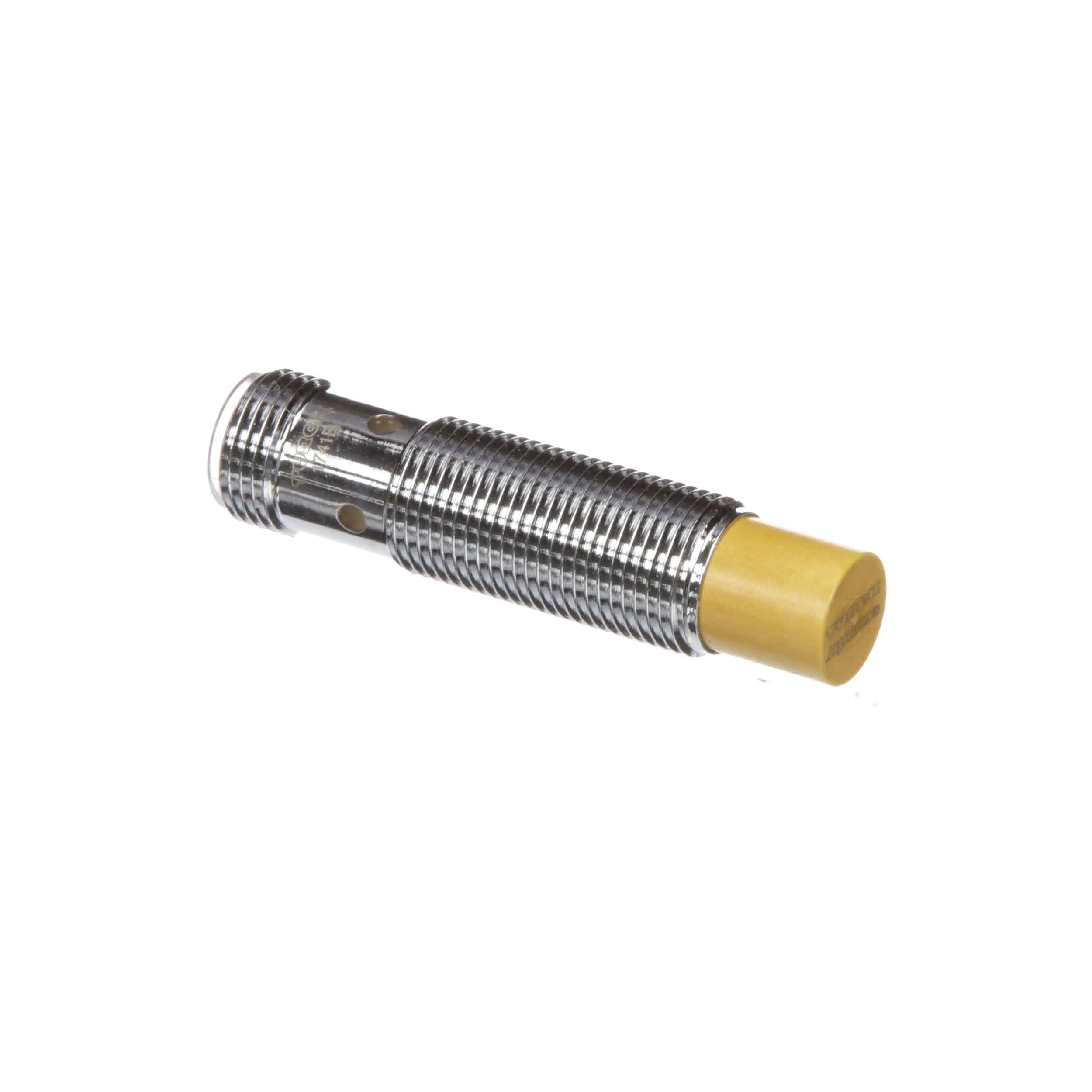

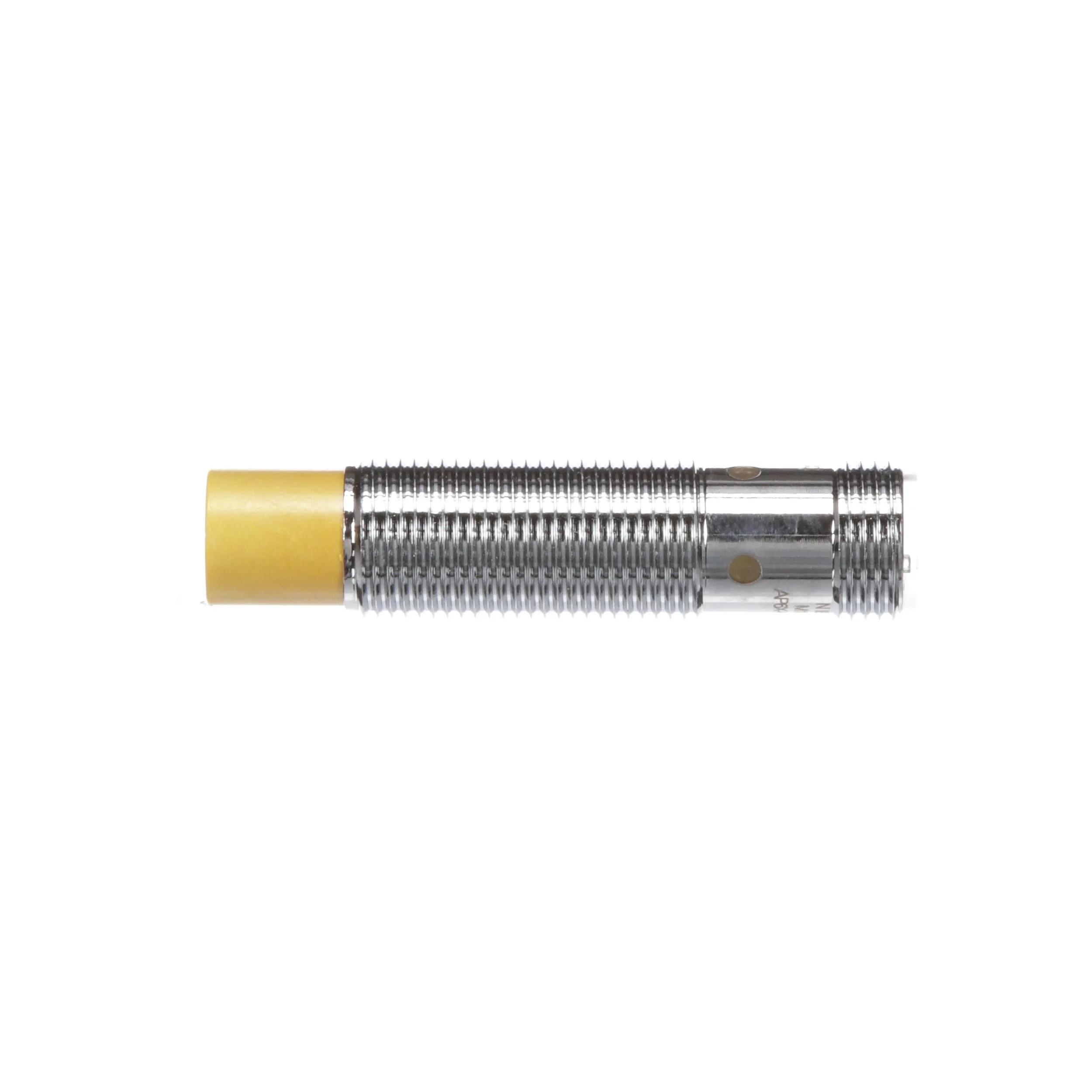

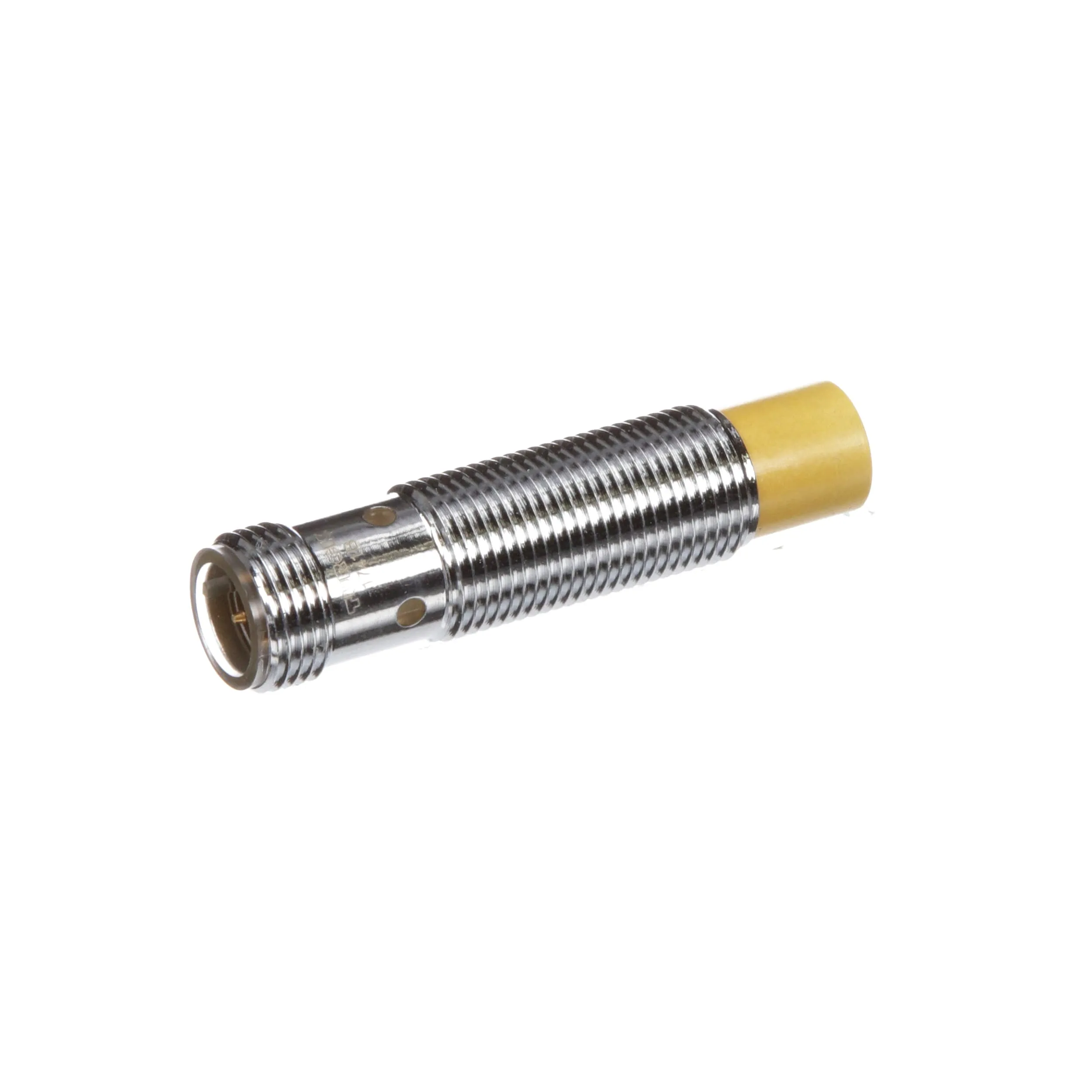

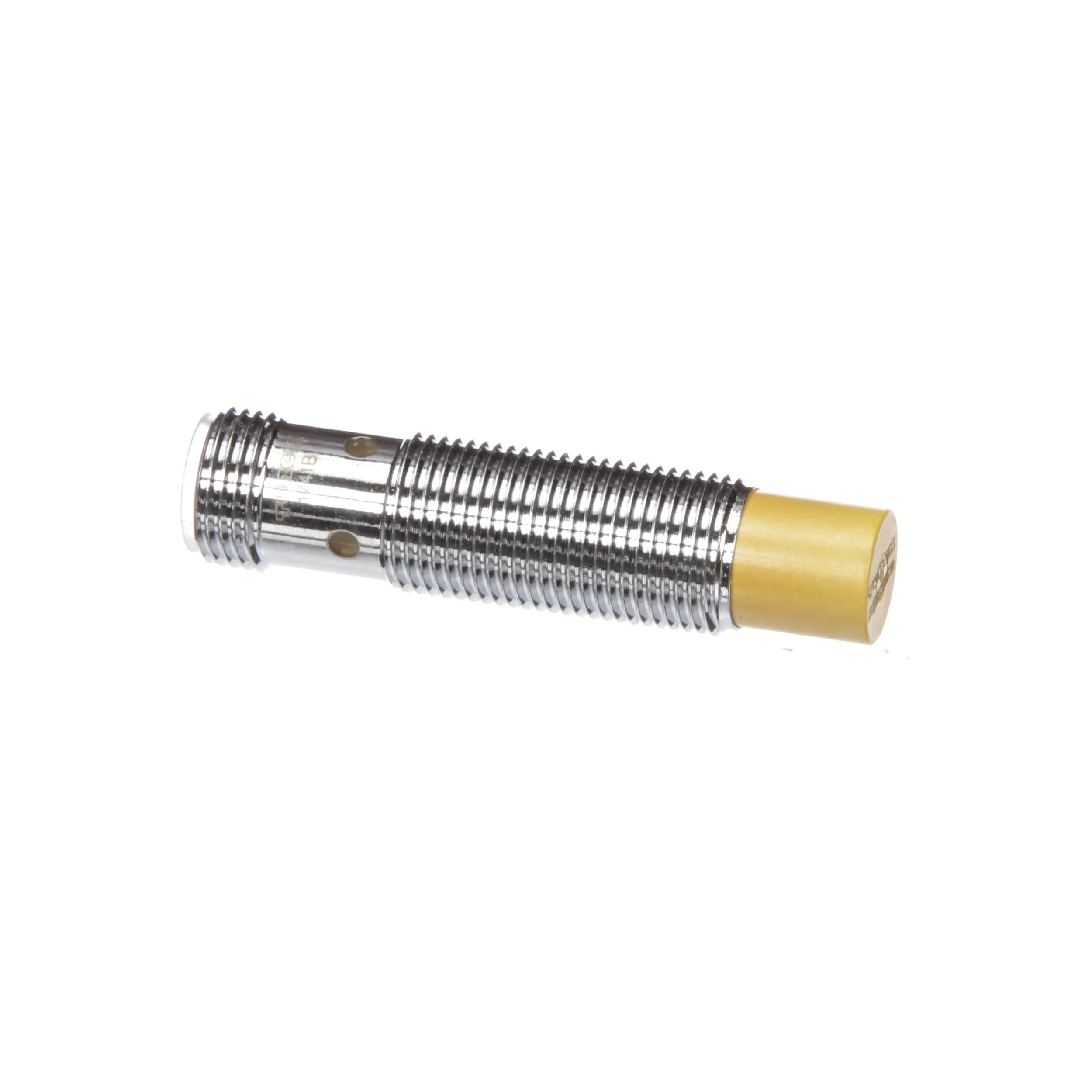

TURCK NI8U-M12-AP6X-H1141
TURCK NI8U-M12-AP6X-H1141
  • TURCK NI8U-M12-AP6X-H1141
  • TURCK NI8U-M12-AP6X-H1141
  • TURCK NI8U-M12-AP6X-H1141
  • TURCK NI8U-M12-AP6X-H1141
  • TURCK NI8U-M12-AP6X-H1141
Product Details ＋
Product Attribute Attribute Value
Alternate Mfr Part Number M1644140
Body Style Cylindrical
Connection Type M12 3-Pin
Current Consumption 200 mA (Max.)
Current, Switching 200 mA
Frequency, Switching 2 kHz
Housing Material CPB
Indicator LED
IP Rating IP67
Maximum Operating Temperature 85 C
Measurement Range 8 mm
Minimum Operating Temperature -40 C
Mounting Type M12 Threaded Non-Flush
Operating Temperature, Maximum 85 C
Operating Temperature, Minimum -40 C
Output PNP
Primary Type Inductive Proximity Sensors
Series
Shielding Unshielded
Supply Voltage 30 VDC
Termination 3-wire

Overview

10 to 30 VDC Supply Voltage, 200 mA (Max.) Current Consumption, Inductive Sensors

  • Temperature operating -30 to 85 °C

    Features
  • Choice of Barrel with Potted-In Cable or M8 ( picofast®), M12 ( eurofast®) Quick-Disconnect
  • Short Circuit and Overload Protection Incorporated
  • Reverse Polarity and Wire Break Protection
  • LEDs Indicate: Output Energized and Short Circuit Warning
  • Normally Open Output
    Specifications
  • Environment Rating: NEMA 1, 3, 4, 4x, 6, 13; IP 67
  • Operating Temperature: -13°F to 158°F
  • Continuous Load Current: 200 mA Max.
  • Voltage Drop: 1.8 VDC at 200 mA
    • TURCK NI8U-M12-AP6X-H1141
    • DefaultTitle

    $ 99.71

    $ 99.71

    Please select combo product attributes
    The combo subtotal is $,SAVE$
    Unavailable
