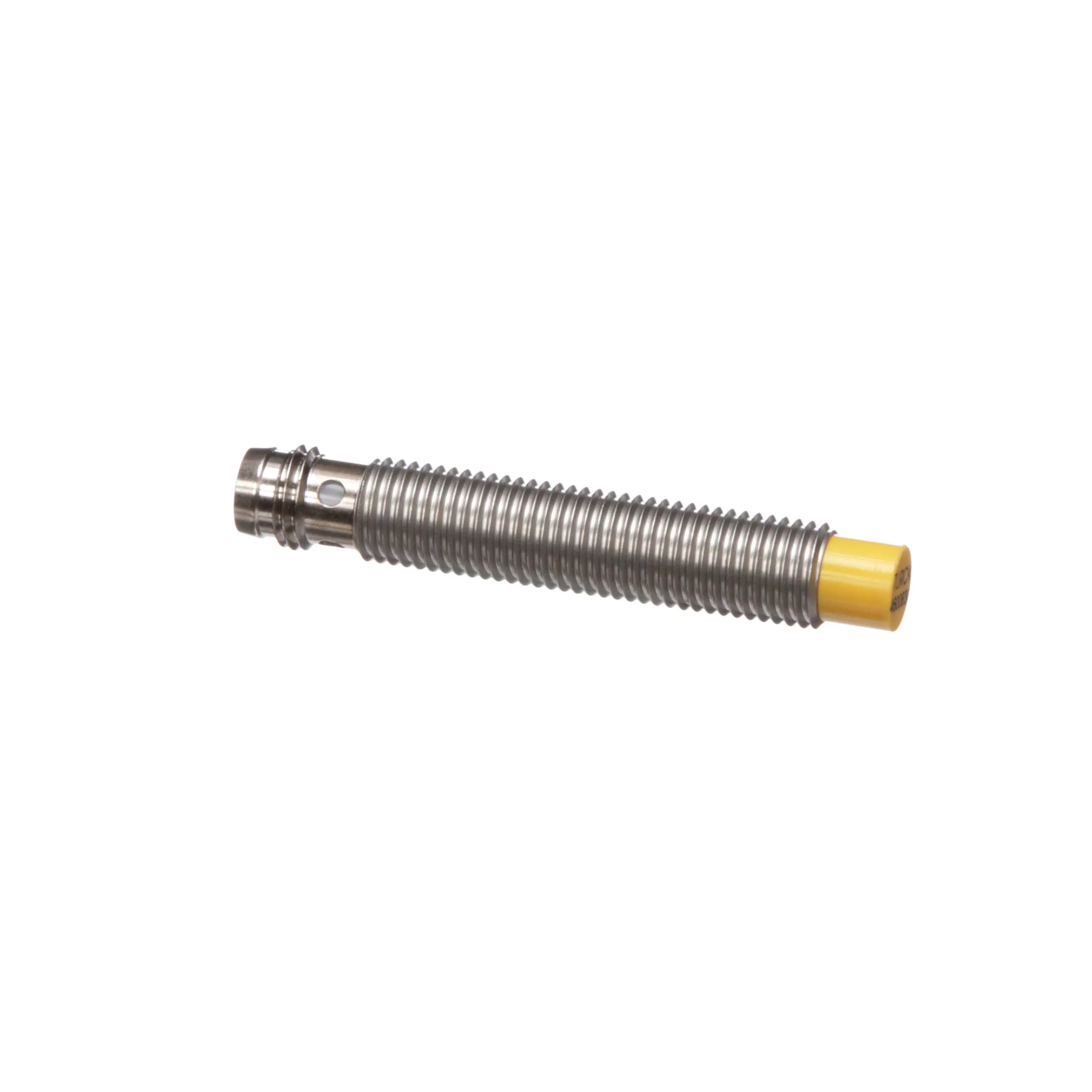

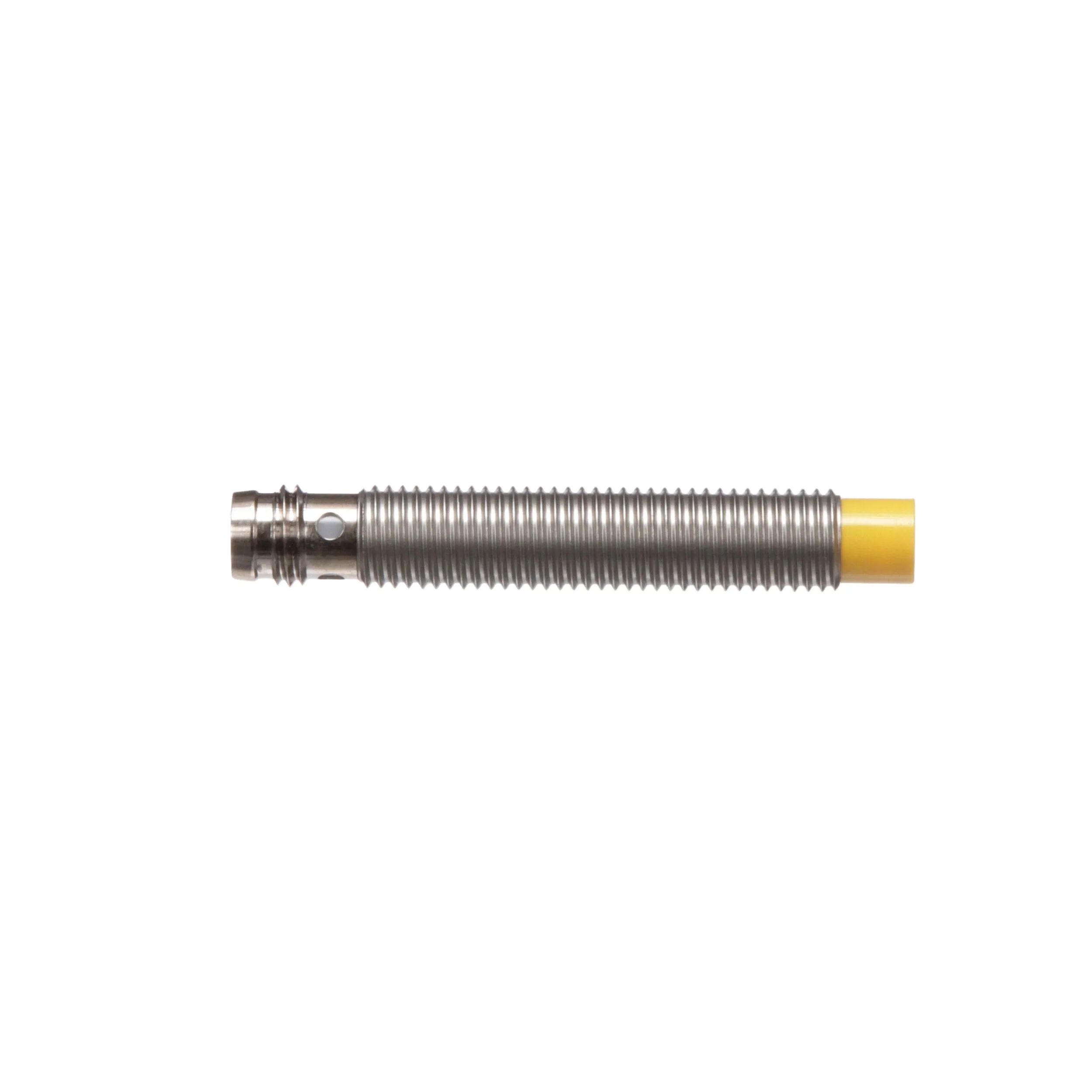

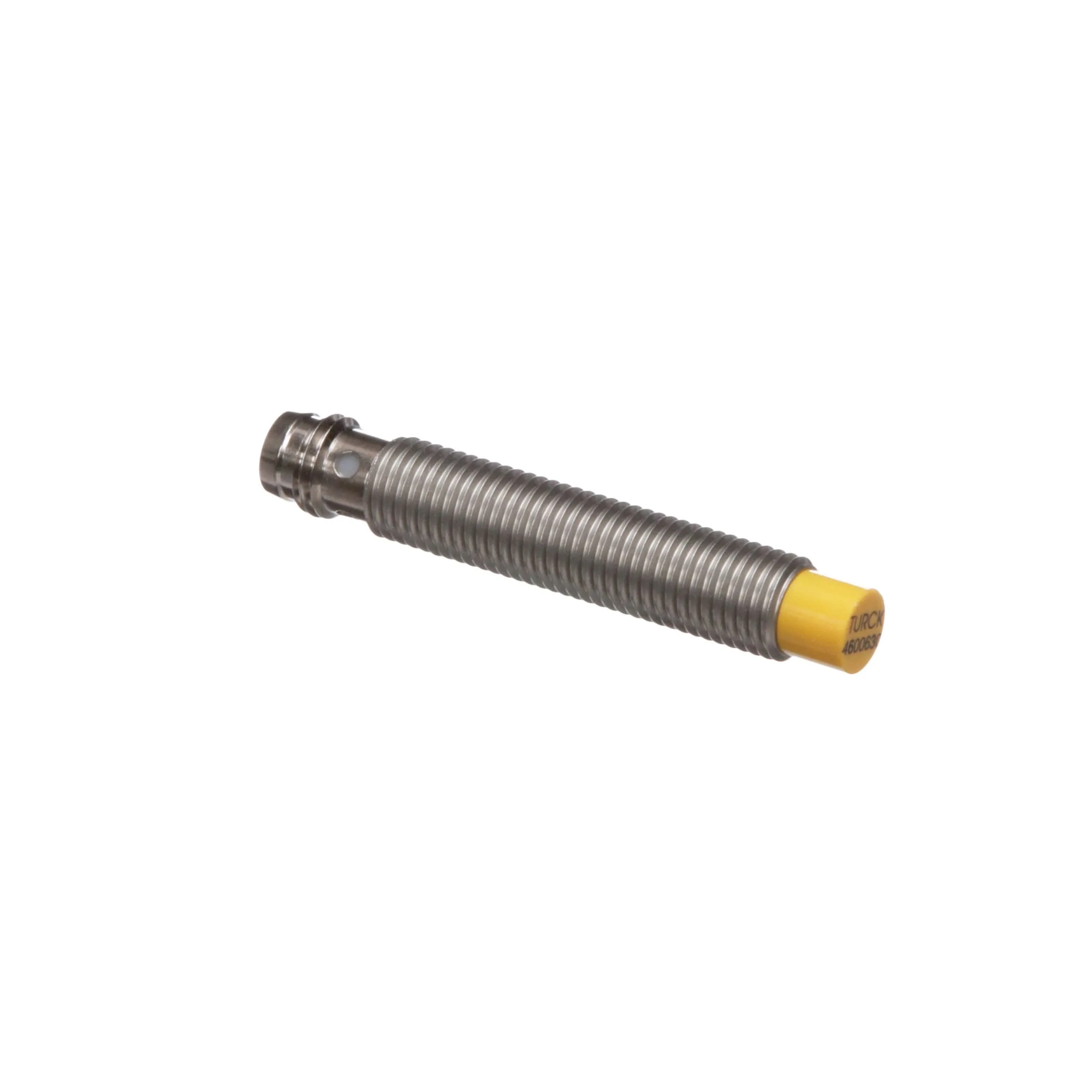

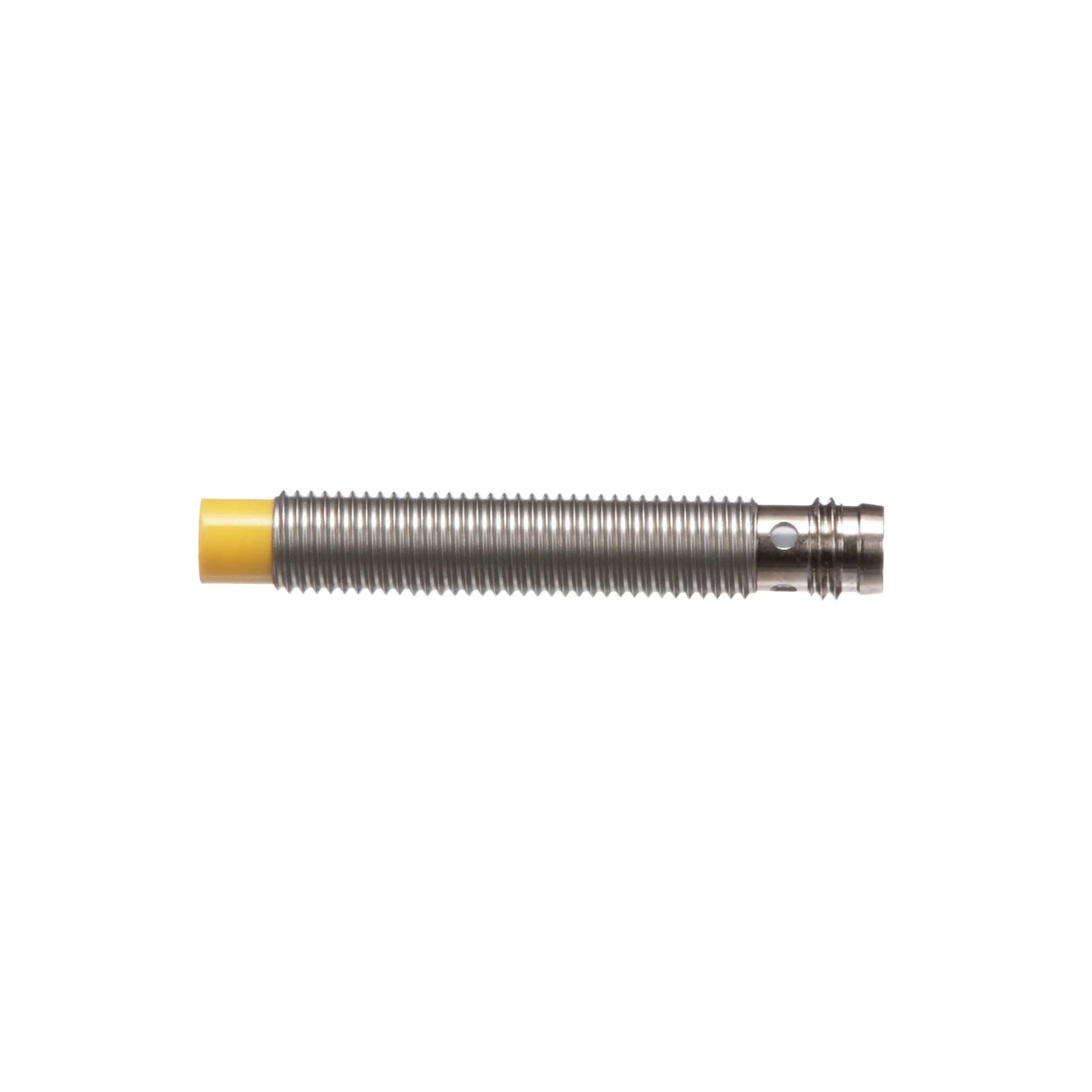

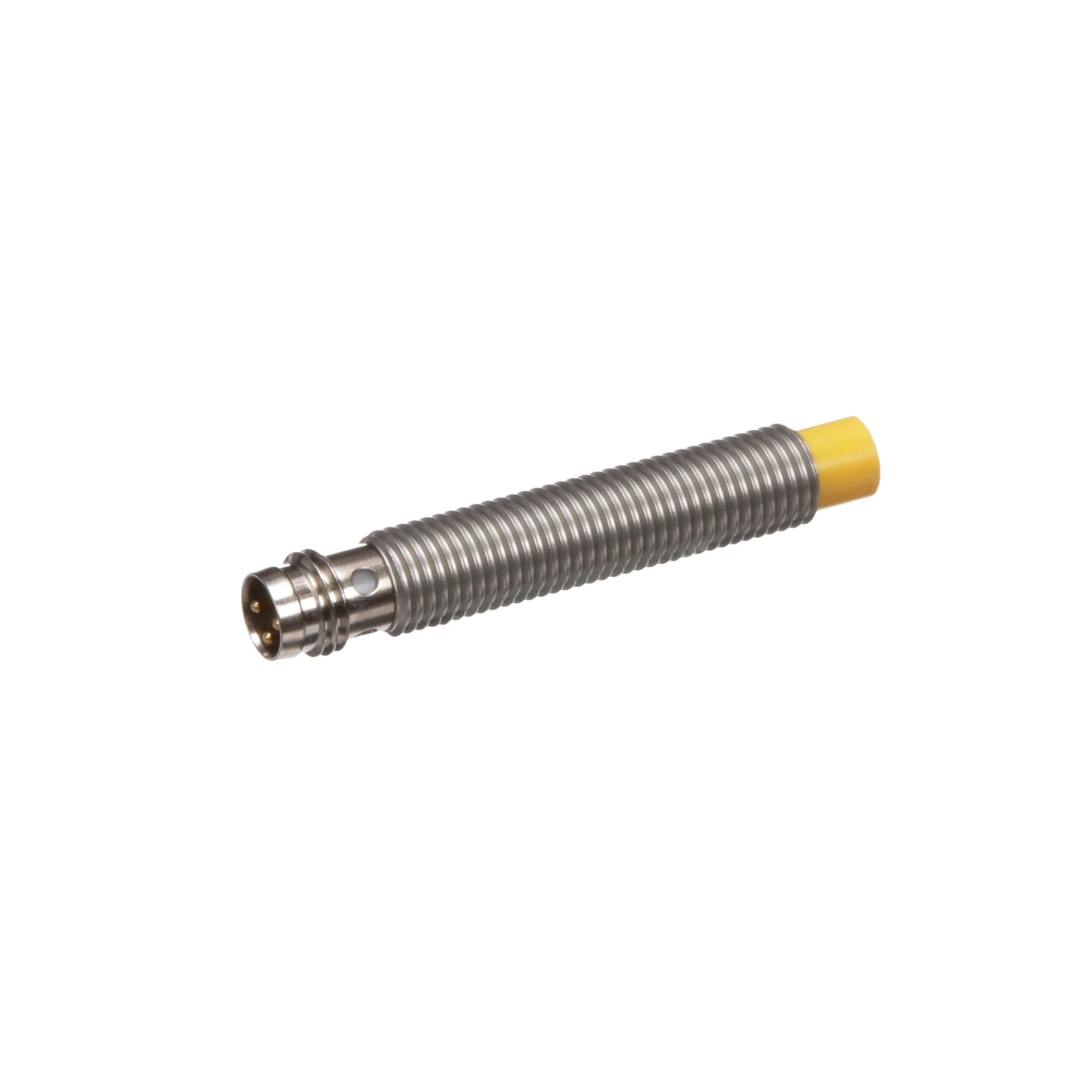

TURCK NI4U-EG08-AN6X-V1131
TURCK NI4U-EG08-AN6X-V1131
  • TURCK NI4U-EG08-AN6X-V1131
  • TURCK NI4U-EG08-AN6X-V1131
  • TURCK NI4U-EG08-AN6X-V1131
  • TURCK NI4U-EG08-AN6X-V1131
  • TURCK NI4U-EG08-AN6X-V1131
Product Details ＋
Product Attribute Attribute Value
Alternate Mfr Part Number S4600630
Body Style Cylindrical
Connection Type M8 3-Pin
Current Consumption 150 mA (Max.)
Current, Switching 150 mA
Frequency, Switching 2 kHz
Housing Material Stainless Steel
Indicator LED
IP Rating IP68
Maximum Operating Temperature 85 C
Measurement Range 4 mm
Minimum Operating Temperature -40 C
Mounting Type M8 Threaded Non-Flush
Operating Temperature, Maximum 85 C
Operating Temperature, Minimum -40 C
Output NPN
Primary Type Inductive Proximity Sensors
Series
Shielding Unshielded
Supply Voltage 30 VDC
Termination Wired Connector

Overview

10 to 30 VDC , 2000 Hz Frequency Range, Inductive Sensors

  • Temperature operating range -30 to 85°C

    Features
  • Choice of Barrel with Potted-In Cable or M8 ( picofast®), M12 ( eurofast®) Quick-Disconnect
  • Short Circuit and Overload Protection Incorporated
  • Reverse Polarity and Wire Break Protection
  • LEDs Indicate: Output Energized and Short Circuit Warning
  • Normally Open Output
    Specifications
  • Environment Rating: NEMA 1, 3, 4, 4x, 6, 13; IP 67
  • Operating Temperature: -13°F to 158°F
  • Continuous Load Current: 200 mA Max.
  • Voltage Drop: 1.8 VDC at 200 mA
    • TURCK NI4U-EG08-AN6X-V1131
    • DefaultTitle

    $ 99.61

    $ 99.61
