Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | S1600500 |
| Body Style | Rectangular |
| Connection Type | M8 3-Pin |
| Current, Switching | 100 mA |
| Dimensions | 1.260" L x 0.787" W x 0.315" H |
| Frequency, Switching | 1 kHz |
| Housing Material | Zinc |
| Indicator | Green (Power), Yellow (Output) |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | Bracket/Panel Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP |

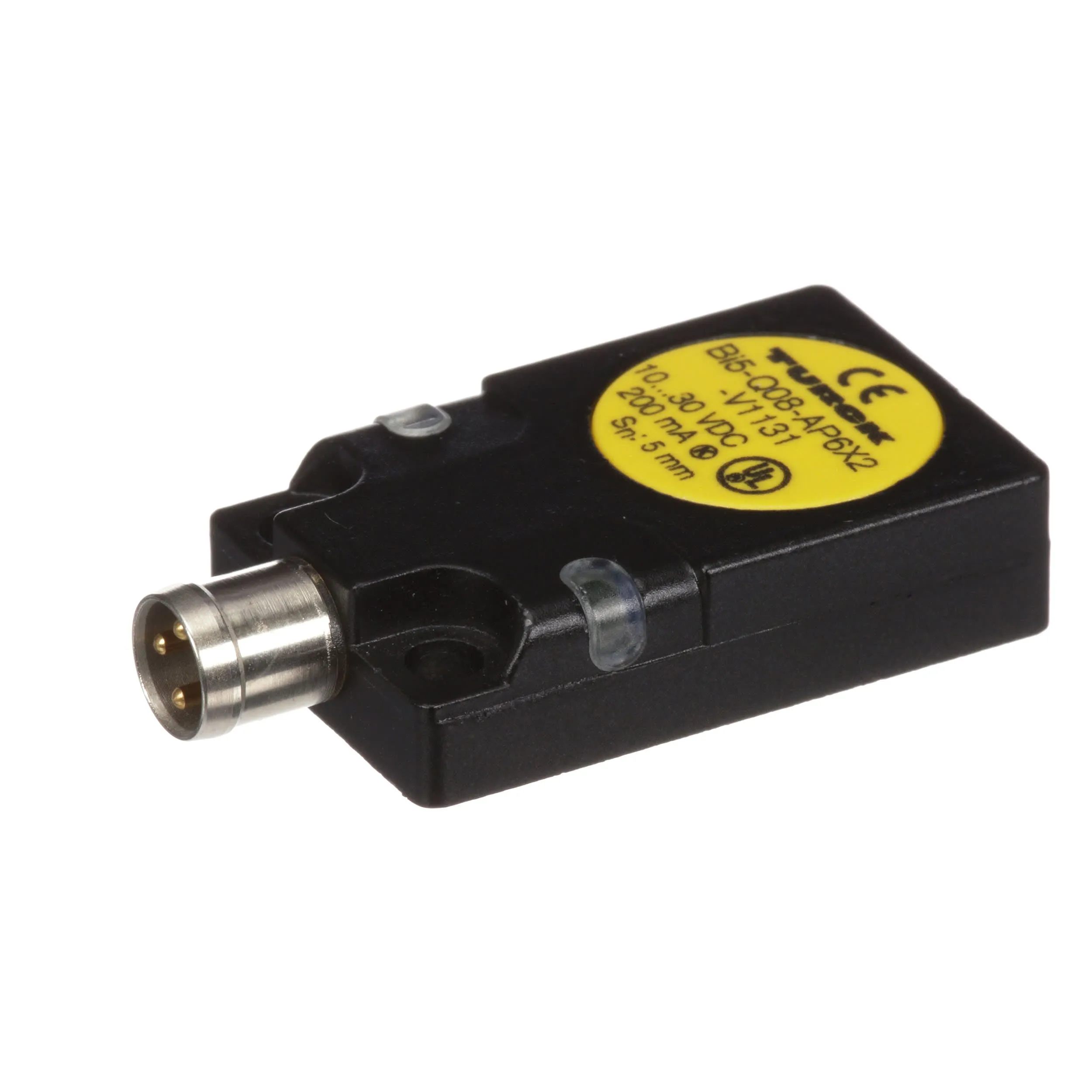

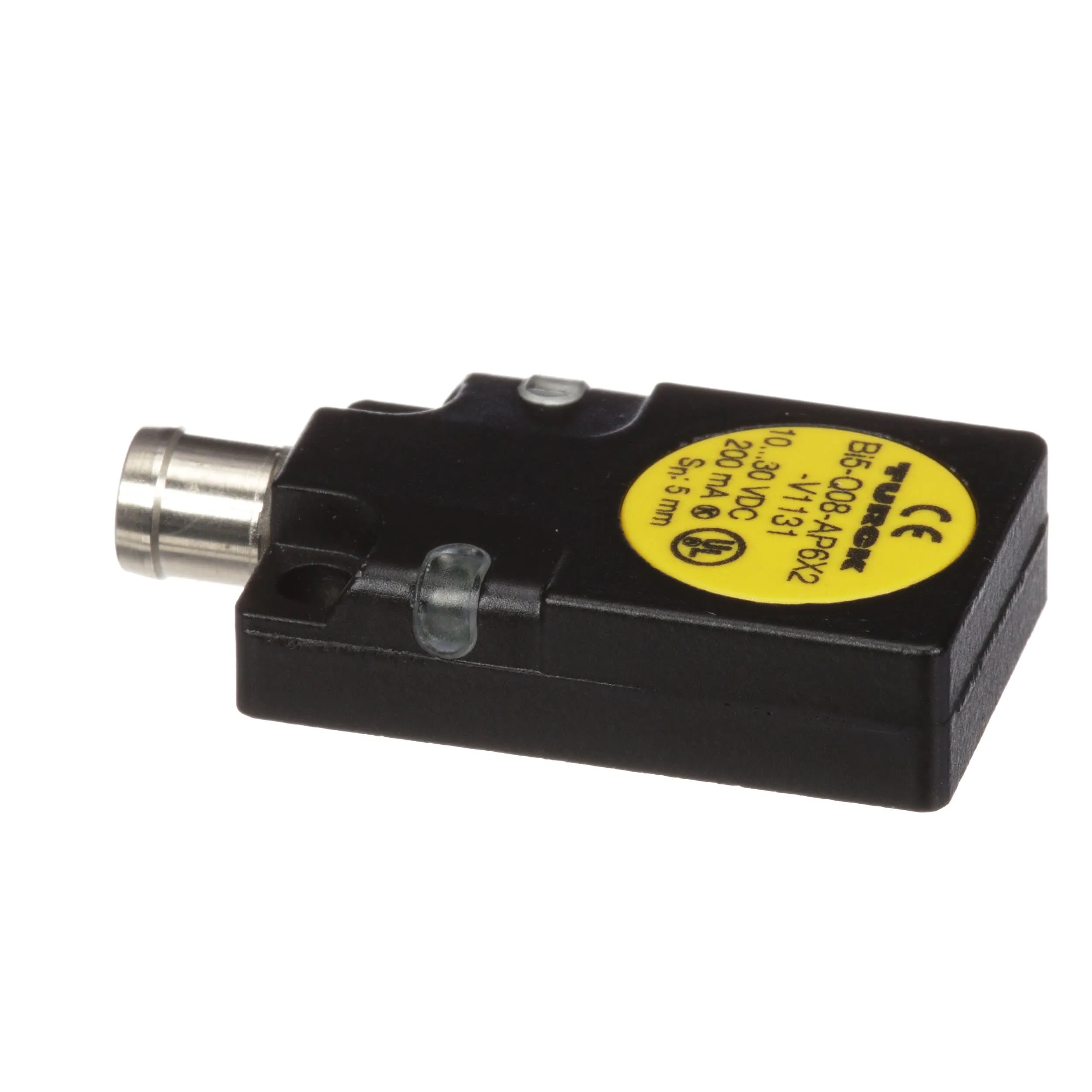

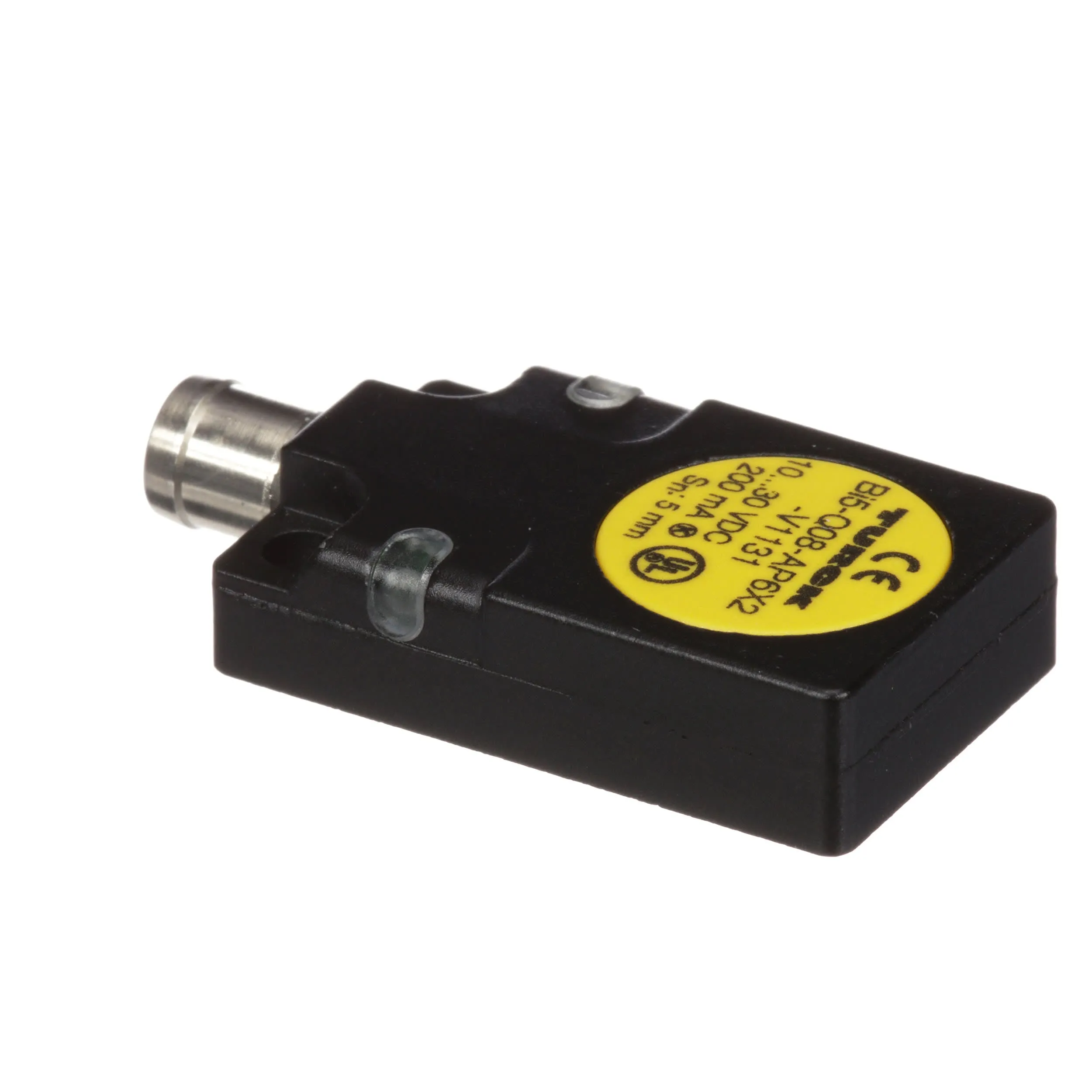

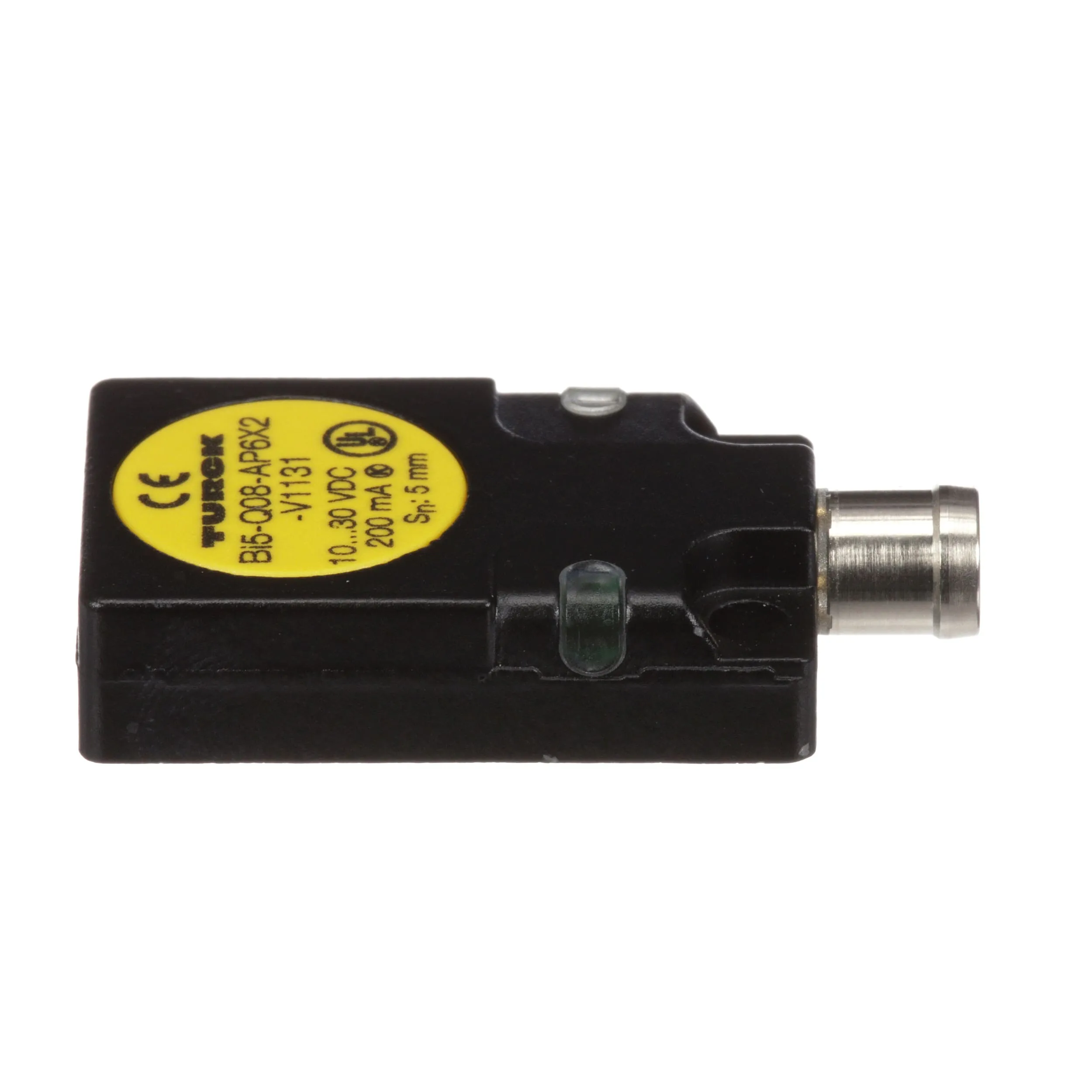

| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Shielded |
| Supply Voltage | 30 VDC |
Overview
TURCK sensors are changing the shape of sensing. They fit in confined sensing areas where other sensors won't work with their superior 2-50 mm ranges in packages up to 10 times narrower than the competition.
