The TL-SF1005P is a 5-port PoE networking switch providing 4 PoE ports for devices like . This product works great when used with the Alarm.com CSVR 2000P and 2008P. This switch offers data speeds up to 100Mbps and provides PoE power up to 250ft. In addition, the TL-SF1005P supports PoE auto-recovery and priority porting.
TP-Link TL-SF1005P 4 Port POE Fast Network Camera Switch
The TL-SF1005P is a 5-port 10/100Mbps plug-and-play network switch that offers 4 PoE ports for connecting devices like Alarm.com PoE cameras. The main use case regarding our products would be for the we carry. Alarm.com CSVRs provide limited PoE ports depending on the model, but if you need additional PoE ports for hardwired cameras you have or plan to add, you can use the TL-SF1005P switch. This allows you to use both WiFi and with your ADC CSVR giving you more flexibility on your installation. This network switch can also just be used as a standard PoE switch if need be, providing some nice features for different scenarios, whether you use it for Access Points or even IP phones.
The TL-SF1005P comes in a wall-mountable, compact metal casing and uses a fanless design producing almost no noise. The 4 PoE ports can supply a total of 67 watts across all devices, with a 30-watt maximum per port. In addition, the TL-SF1005P supports an extended-range mode whereby the transmission speed of data is slowed but increases your PoE power range up to a max of 250 feet. Disabling this option allows the switch to use the highest data speed possible, but reduces the PoE range to 100ft. You can also enable a Priority mode which makes Ports 1 and 2 on the device take a higher priority over ports 3 and 4, so if your network is experiencing congestion, you can choose which 2 connected devices will have priority over the others. Another great feature the TL-SF1005P offers is PoE auto-recovery if enabled. Because the switch is constantly monitoring your PoE and Data throughput if the network switch detects a device that is not responding or acts abnormally, the switch will automatically reboot the connected device. This can be a lifesaver for camera systems if a camera malfunctions for any reason where a power cycle may be required to resolve the issue. The TL-SF1005P also features a slew of indicator LEDs including port LEDs, showing data transmission and PoE usage, and an overall power and PoE Max LED showing when the switch is tapped out.
Specs:

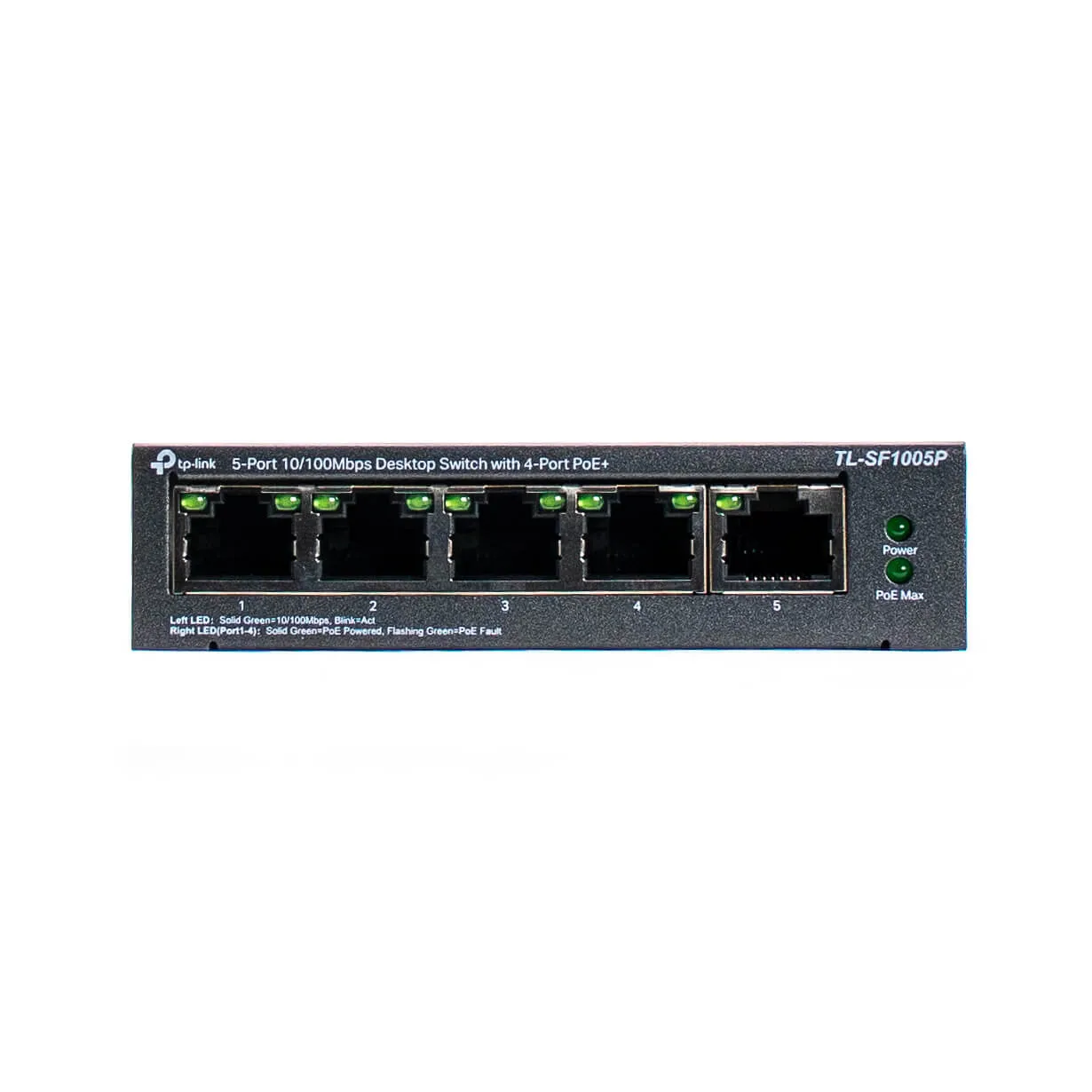

Interface - 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE ports)
AUTO Negotiation/AUTO MDI/MDIX
Network Media - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

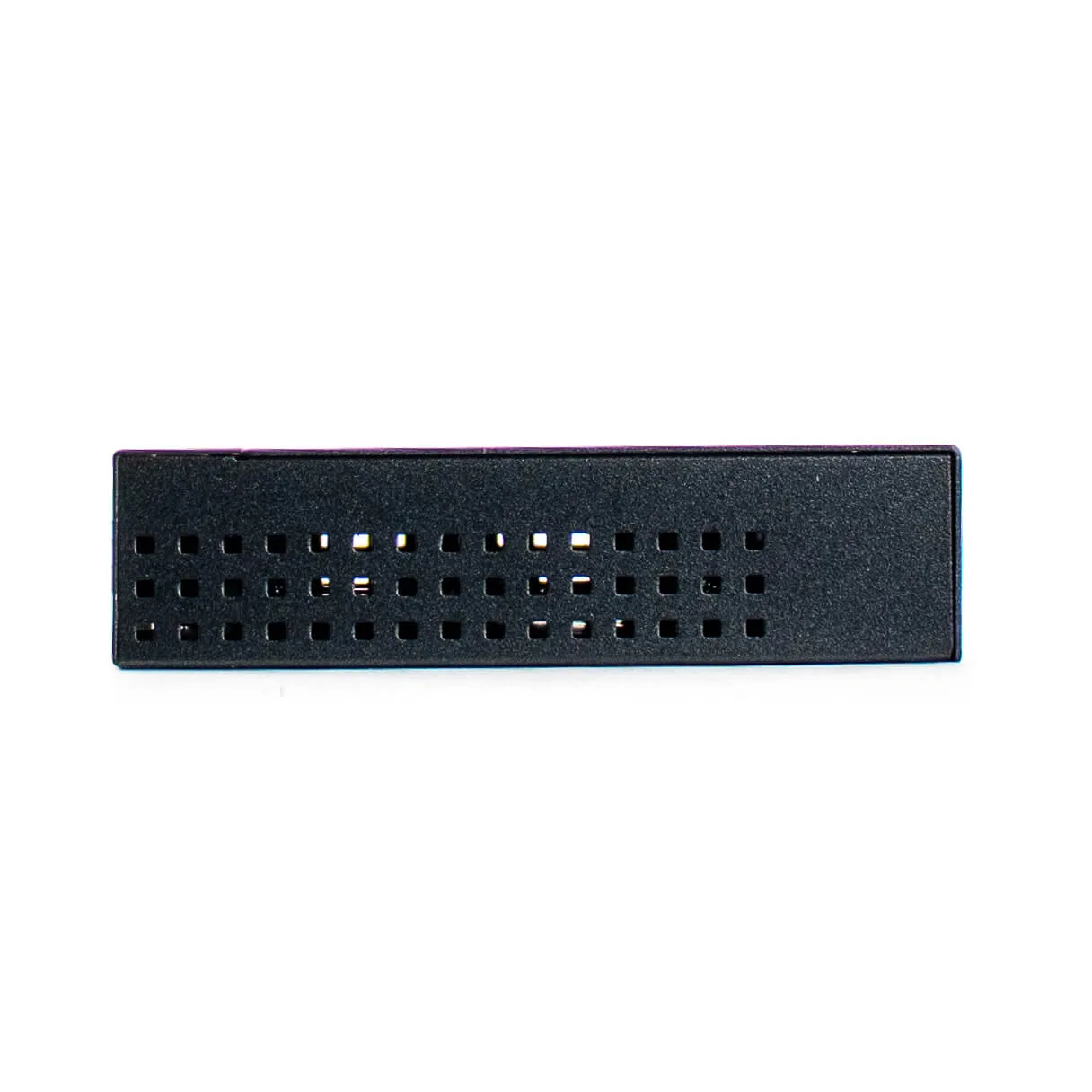

Fan Quantity - Fanless
Physical Security Lock - Yes
External Power Supply - External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate - 0.744 Mpps
PoE Ports (RJ45) - Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 67 W
MAC Address Table - 2K
Jumbo Frame - 2 KB
Switching Capacity - 1 Gbps
Dimensions ( W x D x H ) - 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption - 1.9 W (no PD connected)
74 W (with 67 W PD connected)
Max Heat Dissipation - 6.5 BTU/h(no PD connected)
252.3 BTU/h(with 67 W PD connected)
Transmission Method - Store-And-Forward
Advanced Functions - Compatible With IEEE 802.3af/at Compliant PDs

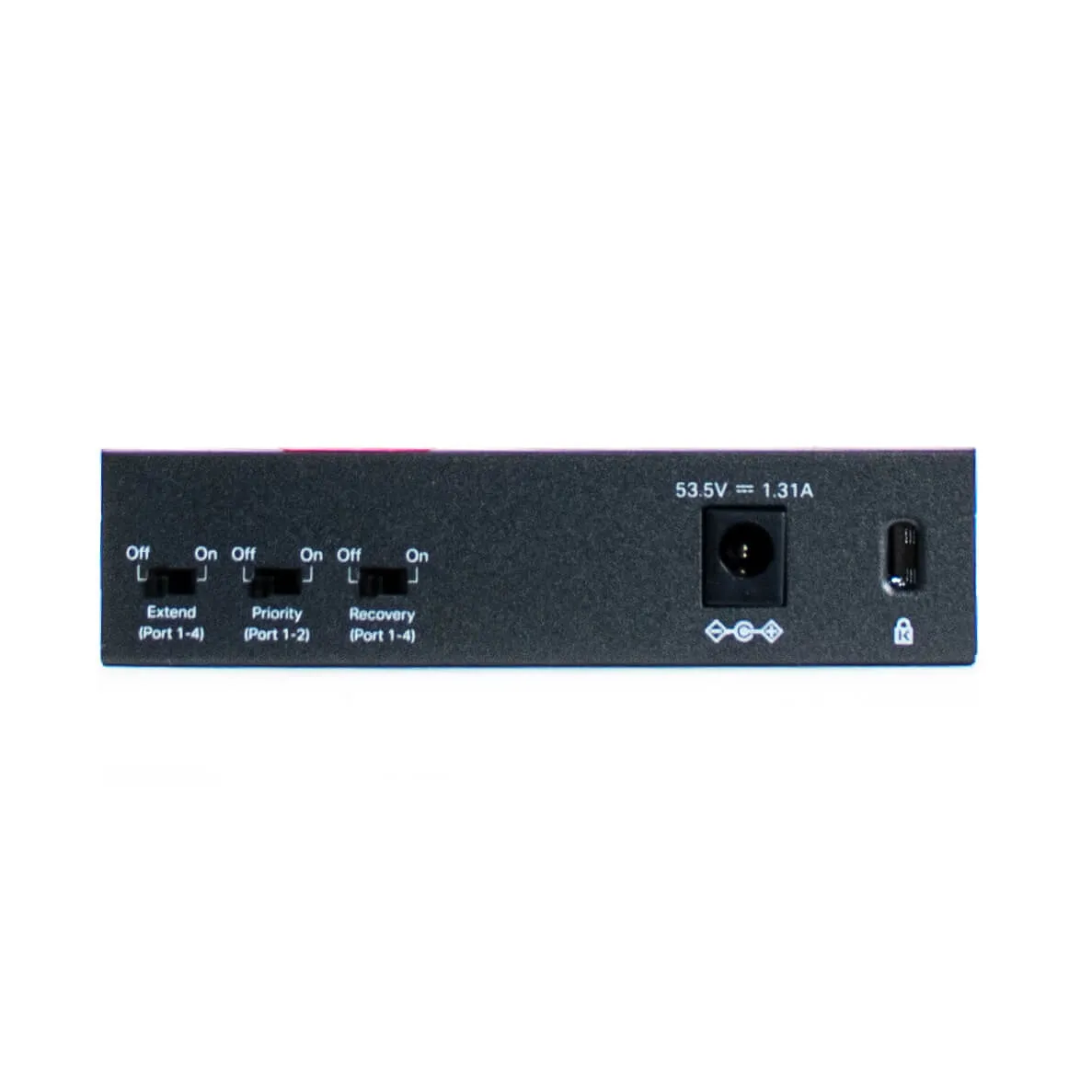

Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Certification - FCC, CE, RoHS

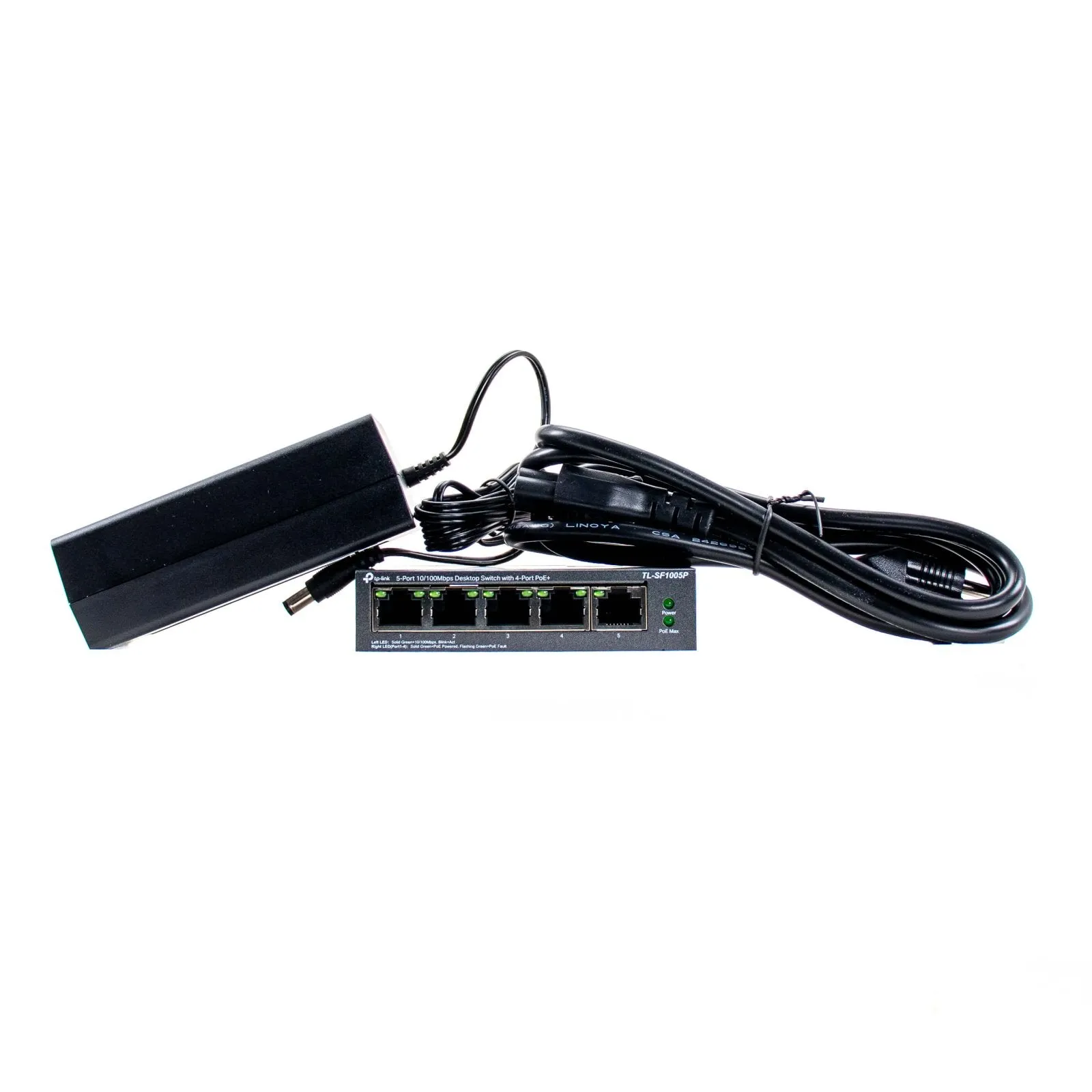

Package Contents - TL-SF1005P, Power Adapter, Installation Guide
Environment - Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
