Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1046135 |
| Application | Outdoor |
| Color | Gray |
| Configuration | 10 fields |
| Dimensions | 160 mm x 155 mm x 185 mm |
| IP Rating | IP67 |
| Light Source | Infrared (905 nm) |
| Measuring Range | 0 m ... 80 m |
| Network Protocols | TCP/IP, OPC |
| Operating Voltage Range | 24 V DC |
| Power Dissipation | 22 W, 55 W heating (typical) |
| Response Time | ≥ 10 ms |
| Series | |
| Special Features | Fog Correction |
| Transmission Speed | 10/100 MBit/s |
| Type | Laser Scanner |
| Weight | 3.7 kg |
Overview

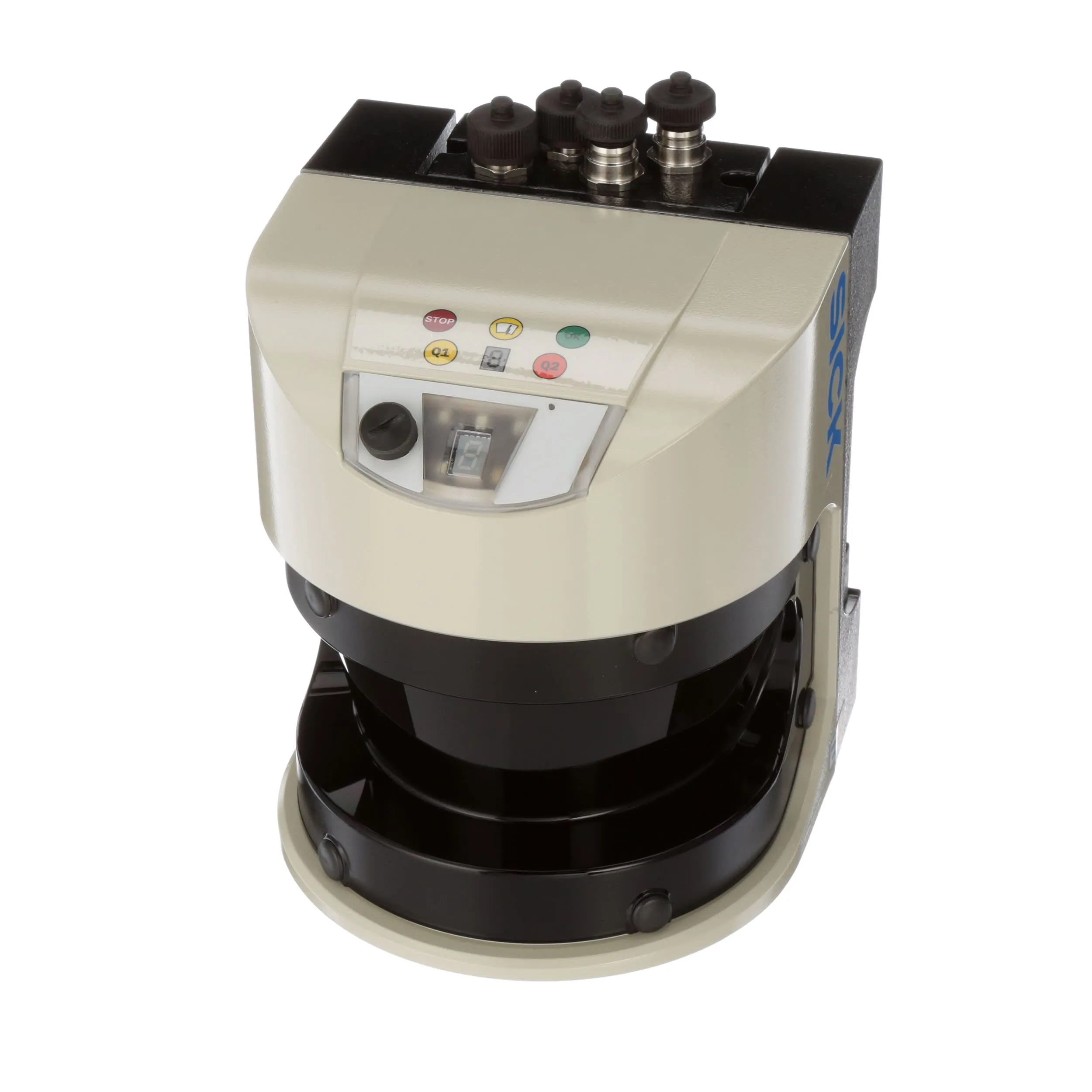

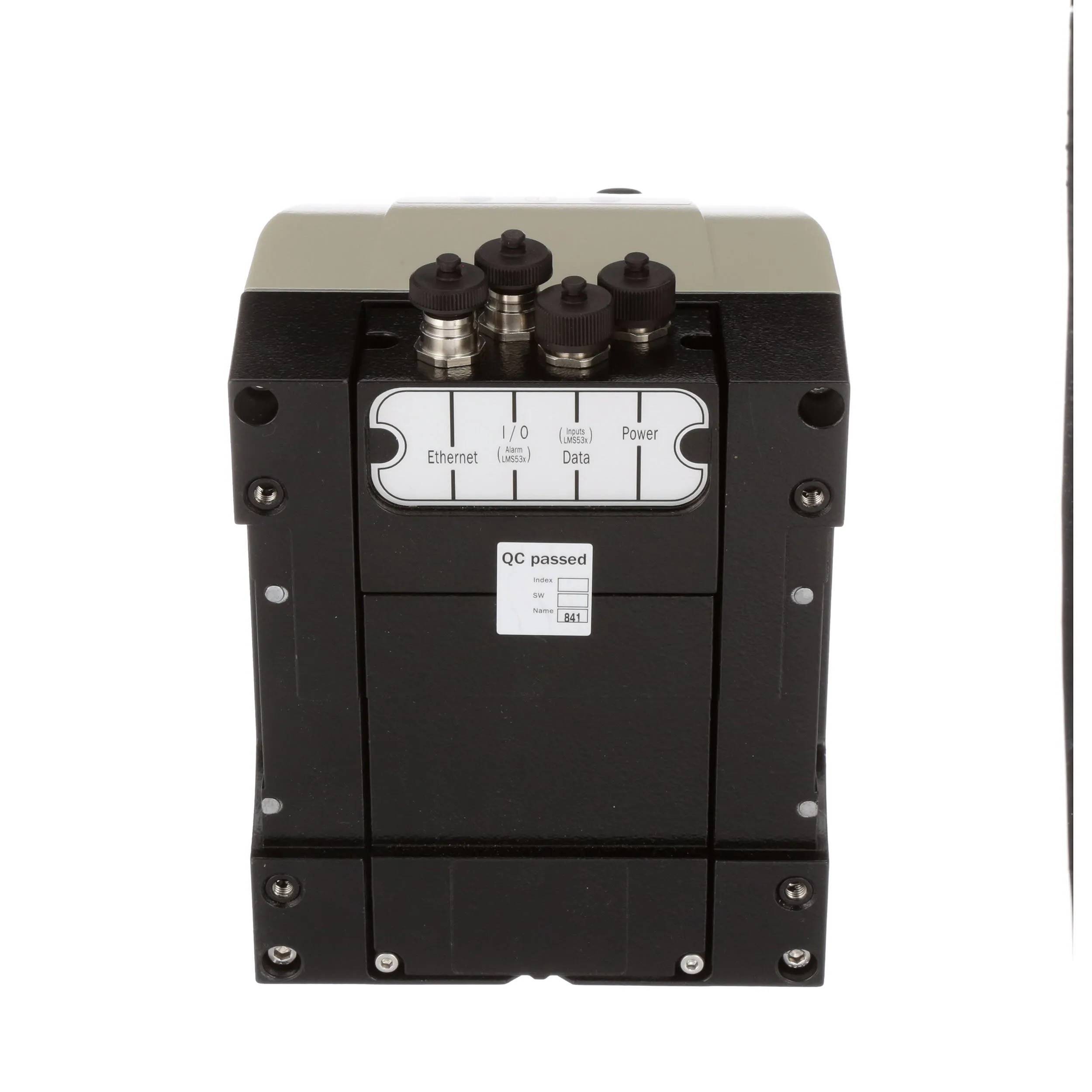

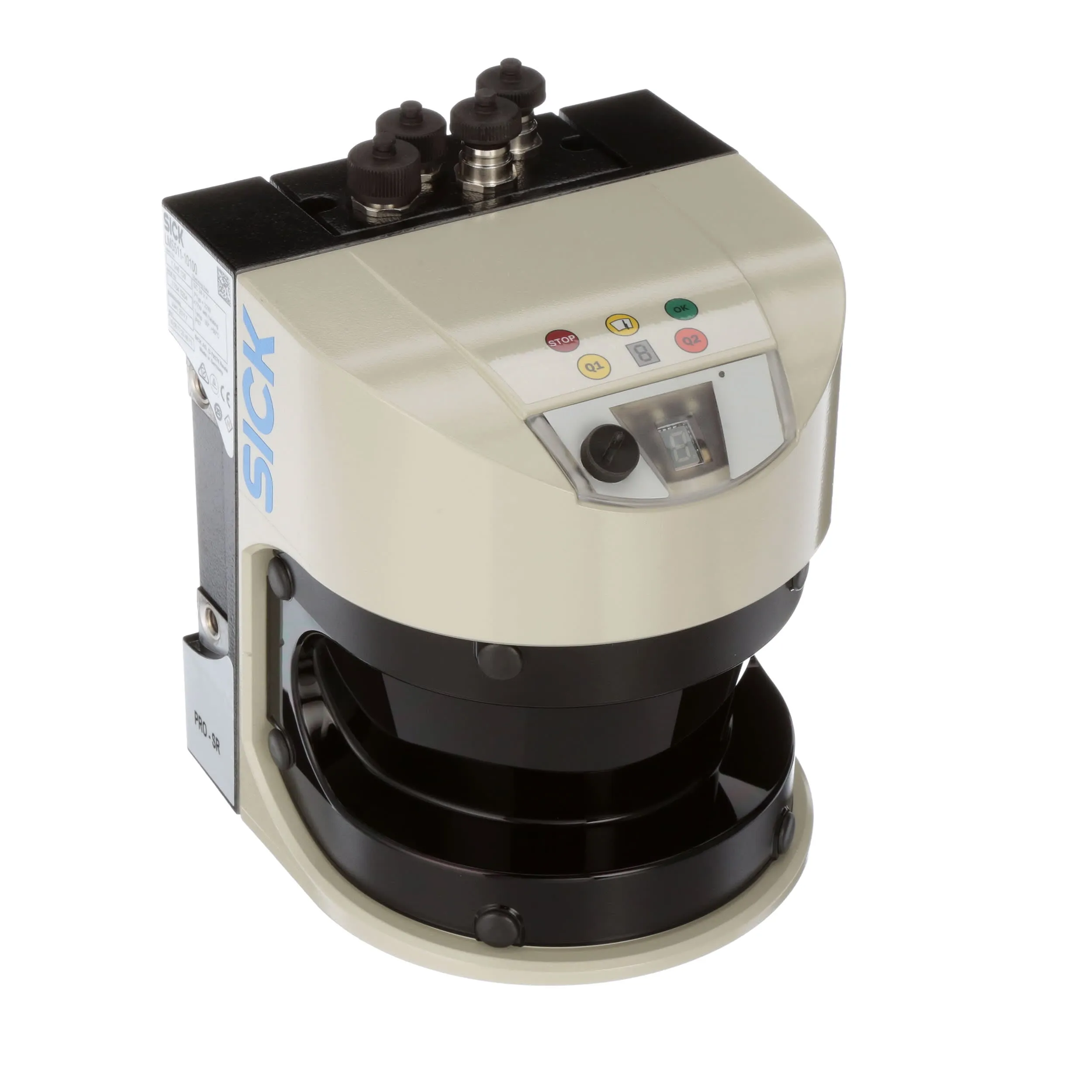

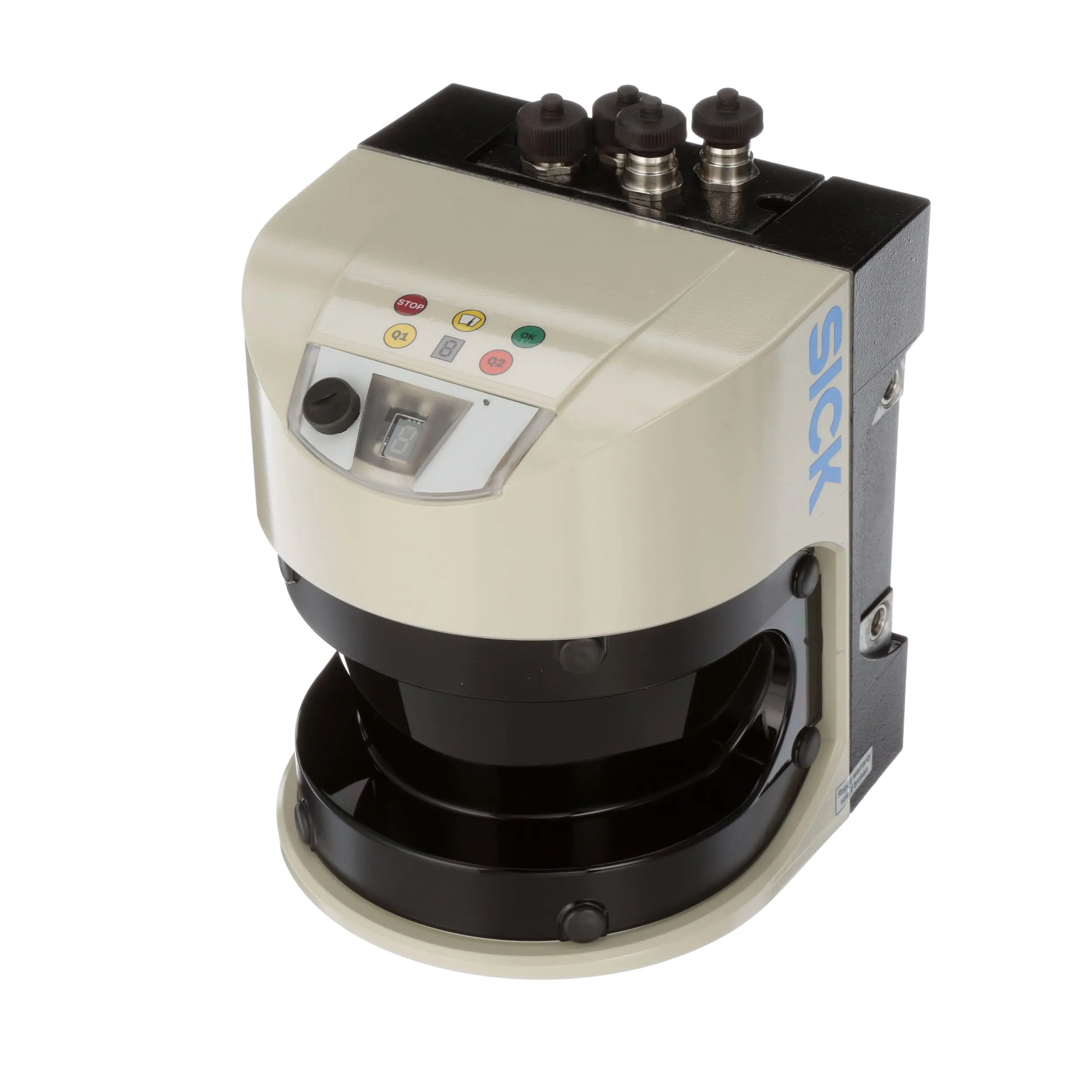

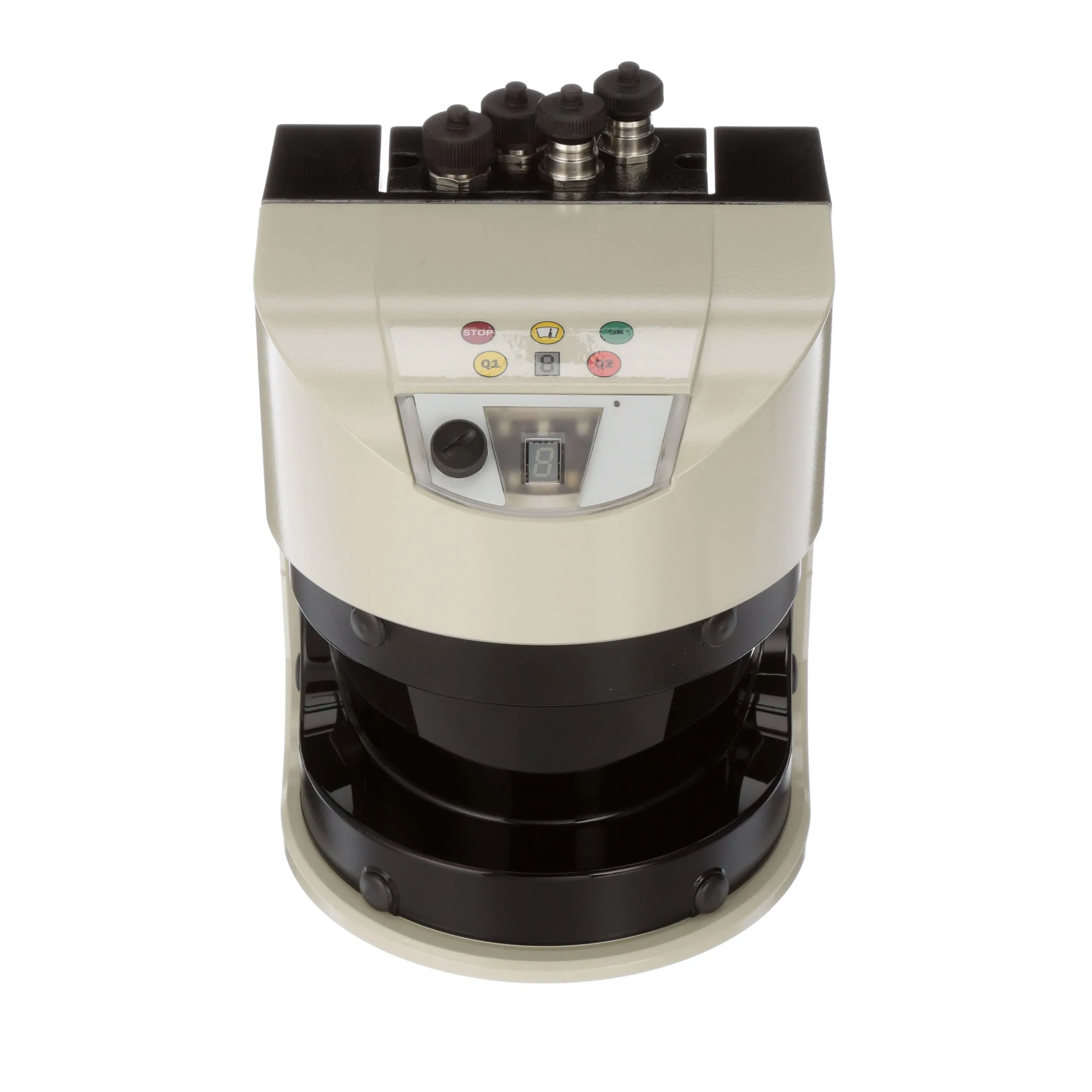

LMS5xx
The LMS5xx laser measurement sensor is the successor of the widely used LMS2xx series. It offers a host of new features to boost performance in existing applications and break ground for new applications. The powerful multi-echo high-speed sampling technology provides dramatically improved reliability even in the worst weather conditions. Major reduction in power consumption and intelligent self-monitoring features for reduced maintenance lead to low total cost of ownership. With two variants, Lite and PRO, users can choose the best solution for their application. LMS5xx has the best performance/price ratio in this sensor class on the market.
At a glance
