Product Details
＋

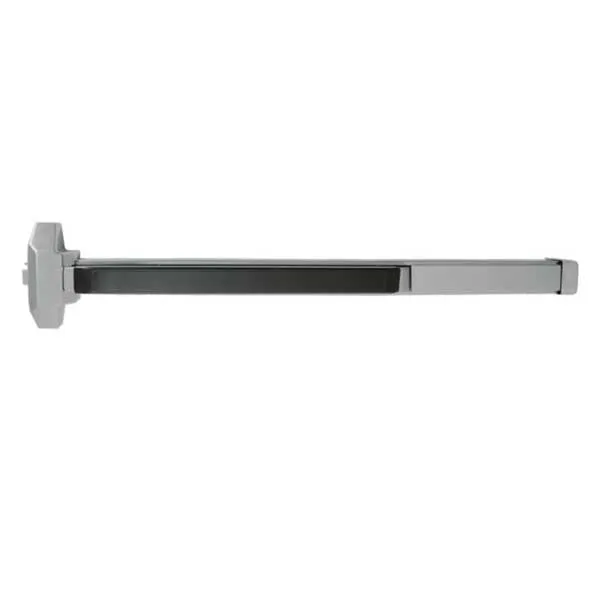

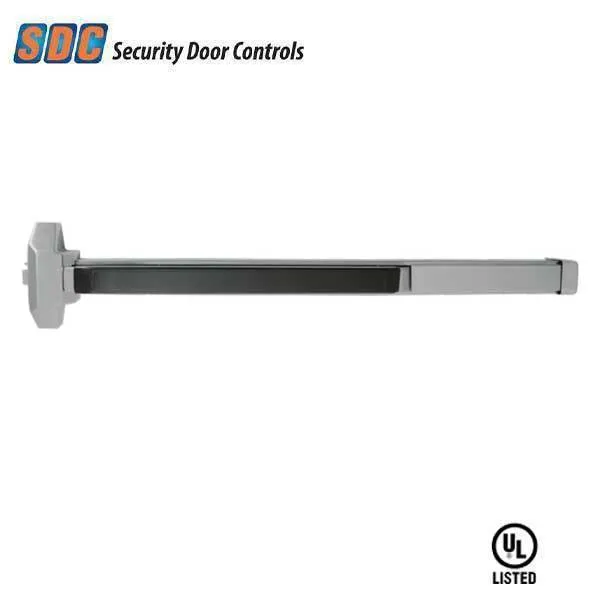

The S4101PU36RE is a Low-Profile, High Value Electrified Grade 1 Exit Device with stainless steel construction. Not all exterior doors have adequate overhang protection, exposing them to weather and corrosion. The S4000ER is corrosion resistant and comes with Motorized Latch Retraction and Request-To-Exit standard at no charge - making it more cost-effective than competitive exit devices requiring add-on options. Application is as easy as Install – Power – Done.
Features:
- Factory-installed motorized electric latch retraction and dogging
- Durable stainless steel construction
- Corrosion-resistant
- Scratch, fingerprint, and impact-resistant touchpad
- Compact industrial design
- Variety of function choices
- Request-to-exit (REX)
| Finish: | 628 Anodized Aluminum |
| Door Width: | 36" |
| Door Height: | ----- |
| Door Stile: | Wide (4” Minimum) |
| Device Type: | RIM |
| Handing: |
Non-Handed |
| Headcover: |
Stainless Steel |
| Rail: | Stainless Steel |
| Pushpad: | Stainless Steel |
| Pushpad Protective Guard: | Nylon 6/6 (30% Glass Fill) |
| End Cap: | Stainless Steel |
| Projection: | 27/16” Neutral 111/16” Depressed |
| Latch: | 3/4” Throw Stainless Steel |
| DeadlatchDeadlatch: | 5/8” Throw Stainless Steel |
| Vertical Rods: | ----- |
| Input: | 24 VDC ± 10% |
| Current Draw: | 700 mA Inrush 200 mA Continuous |
| Request-to-Exit (REX): | SPDT 10 Amp @ 250 VAC Resistive |
| Certifications: | UL Listed |
| Warranty: | Manufacturer 5 Year Warranty |
| Grade: | Grade 1 |
