Product Details
＋

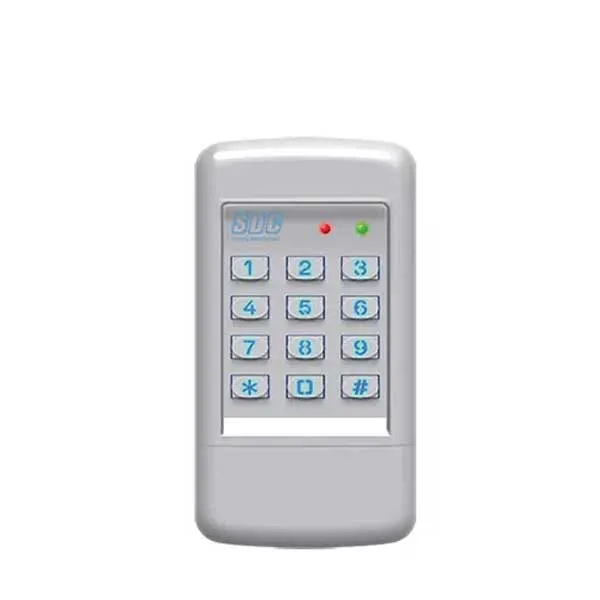

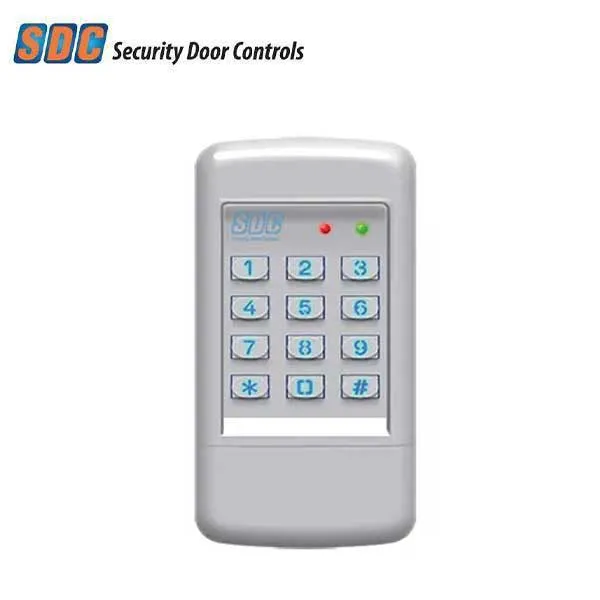

The SDC 920 EntryCheck™ series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.
Features:
- Digital Keypad with or without Wiegand Output for Universal Compatibility
- Weather & Vandal Resistant Housing with Tactile Metal Keys
- 12-Key Illuminated, 3” x 4” Keypad
- Surface or Single-Gang Mount
- Built-In Tamper Switch
- Dual LED Status Indicators
- Adjustable Audible Annunciation
- Configurable Illumination: On, Off, Timed
Specification:
| Construction: | Heavy cast metal body and keypad |
| Voltage: | 12/24 VAC/DC |
| Current: | 30mA Typical, 150mA Maximum |
| Outputs: | Relay 1 - SPDT 5 Amps @ 30VDC Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 – 100mA @ 30VDC |
| Temp: | -4ºF to 140ºF (-20ºC to 60ºC |
| Humidity: | 5% to 95% Non-Condensing |
| Finish: | Powder Coat Painted Cast Metal |
| Mount: | Surface Mount |
| Dimensions: | 3”W x 5-3/4”H x 1-7/16”D (1.5” Wall Projection) |
