Product Details
＋

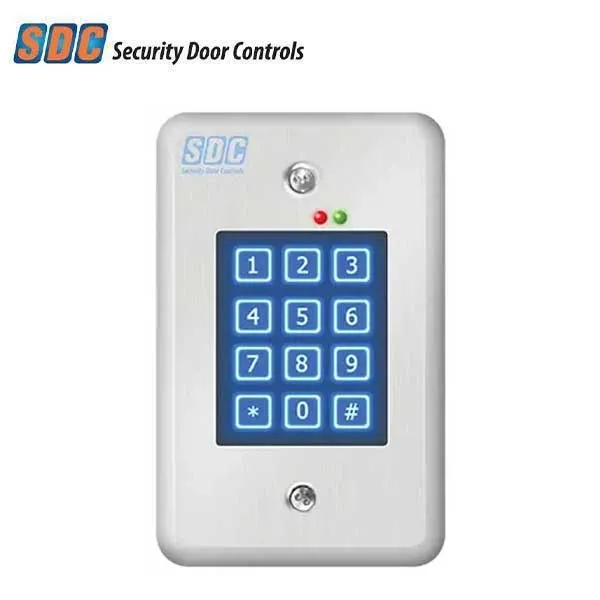

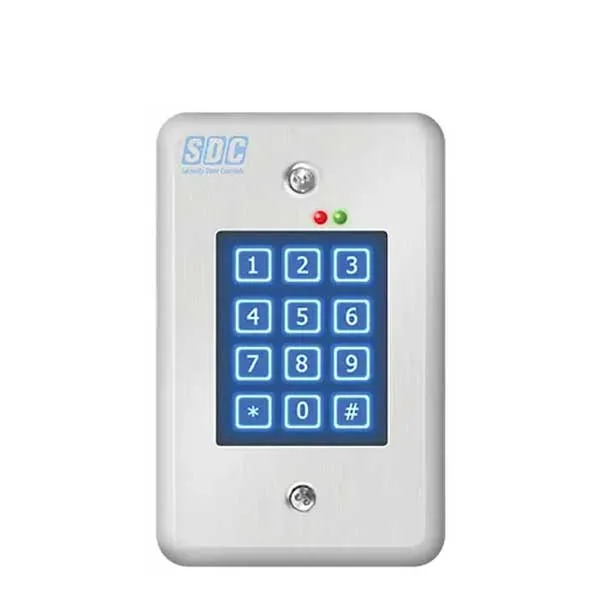

The SDC EntryCheck™ 918 Series are indoor stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.
Features:
- 12-Key Illuminated, Moisture-Resistant, 3" x 4" Keypad
- Tamper-Resistant Screws
- Single-Gang Mount
- Dual LED Status Indicators: Access, lockout
- Adjustable Audible Annunciation
- Configurable Illumination: On, Off, Timed
- 4 Outputs, 2 Relay and 2 Solid State
- Assign Entry PIN’s to Relays 1 and/or 2
- Timed Anti-Passback, Anti-Tailgate
- Keypad Tamper Lockout
- Request-to-Exit/Enter Input
- Thick Stainless Steel Faceplate 3/32”
Specification:
| Construction: | Heavy cast metal body and keypad |
| Voltage: | 12/24 VAC/DC |
| Current: | 30mA Typical, 150mA Maximum |
| Outputs: | Relay 1 - SPDT 5 Amps @ 30VDC Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 – 100mA @ 30VDC |
| Temp: | -4ºF to 140ºF (-20ºC to 60ºC) |
| Humidity: | 5% to 95% Non-Condensing |
| Finish: | Satin Stainless Steel - 630 |
| Mount: | Single-Gang Mount |
| Dimensions: | 3”W x 4-3/4”H x 1-1/2”D (1/4” Wall Projection) |
| Warranty: | 5-Year Manufacturer Warranty |
