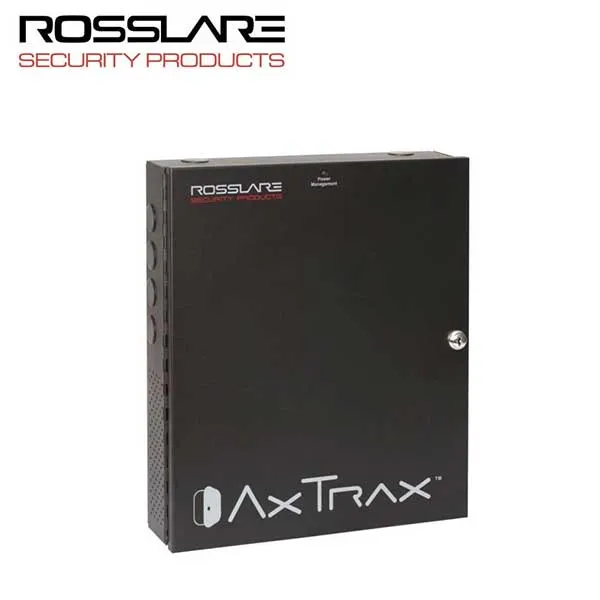

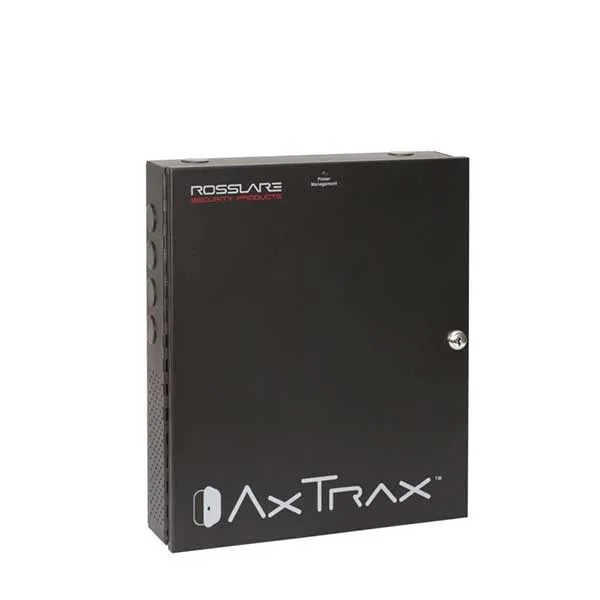

Name: Rosslare - ME1515 - Enclosure For AC825IP Installation
SKU: 318109

Product Details ＋

ROS-ME-1515

The is a power management enclosure in an innovative lockable metal cabinet designed for maximum ease of use, installation, and maintenance. The ME-1515 features a split managed power supply and UPS circuit that is designed to fit and power Rosslare's AC-8215IP series of access control panels.

Global input voltage – 100 to 240 VAC, 1.6 A, 50/60Hz auto select.
Power module delivers isolated 13.8 VDC power @ 2 Amp output channels with PTC resettable fuse and LED indications.
Built-in power event generation to let the control panels receive power supply and UPS events.
Built-in Rosslare LightBar™ for lighting the way during maintenance and installation.
Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating.
Silk screen of all the connections on inside of door. Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket. Can be supplied with various C14 power plugs per country requirements.
Supplied with removable terminal blocks and special key for ease of installation

Dimensions	(H x W x D) 346 x 404 x 101 mm (13.6 x 15.9 x 4.0 in.)
Type	Enclosure
Switch Mode PS Input Voltage	100 ~ 240 VAC, 50 ~ 60 Hz from main power Maximum input current: 1.6 A
Switch Mode PS Output Voltage	15 VDC, 4 A (60 W) to the PM-10 power management board
Power Output from PM-10	Isolated PTC fused output, providing 13.8 VDC, 2 A
Battery Charger Output	13.8 VDC, 300 mA for 12 VDC, 7 Ah lead acid battery
Built-In Speaker (Audio Indication)	0.5 W, 8Ω
LED Indicators	2 LED for Power Outputs 1 and 2 Green LED shows power status visible when case is closed
Operating Temperature Range	-5°C to 40°C (23°F to 104°F)
Lock Type	Mini-cylinder lock with 2 keys
Application	Secure Power Management Enclosure
Compatible	AC-825IP board or two R/S/D/P-805 expansions
Dimensions	404 × 346 × 101 mm (15.9 x 13.6 x 4.0 in.)
