Product Details
＋

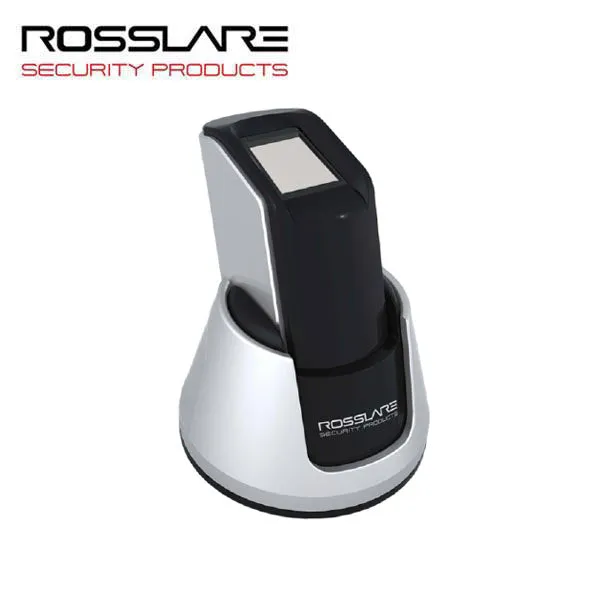

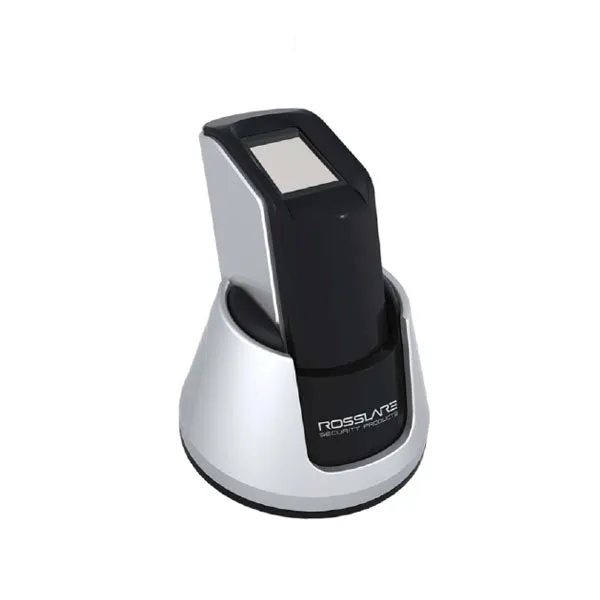

Rosslare’s DR-B9000 is a USB 2.0 fingerprint enrollment scanner to be used with the Rosslare 9000 series fingerprint readers. The enrollment scanner can be set up using the AxTraxNG Client software or with the RosslareBio 9000 standalone management software, which allows third-party controller support. This device features a modern design with a glass scanning surface, making it robust and long lasting.
Features
- Compatible with Rosslare AxTraxNG management system
- Scratch-proof glass scanning surface
- Dual technology IR and camera scanning
- Crystal clear finger scan image
- Well designed for convenient use
- USB 2.0 compliant and USB powered
Specifications
| Operating Voltage | 5 VDC (USB powered) |
| Operating Current |
Standby: 5 mA Normal: 80 mA Maximum: 120 mA |
| System Compatibility | Compatible with a Rosslare's AxTraxNG, as well as many third-party access control software. |
| Compatible Readers |
|
| Interoperability | ISO19794-2/4, ANSI378 |
| Resolution | 500 DPI - 8 bits/pixel (256 Gray Level) |
| ESD Tolerance | < /- 8 KV |
| Platen Area | 14.8 (x) x 17.9mm (y) |
| Effective Sensing Area | 12.6 (x) x 14.8mm (y) |
| Effective Pixel Array | 248 x292 |
| Image Aspect Ratio | 0.85 (x / y) |
| Sensor Size | 14.8 x 17.9 mm |
| Casing Size | 68 x 68 x 81 mm (with Stand) 30 x 48.5 x 70 mm (w/o Stand) |
| Light Source |
White LED |
| Warranty |
2-Year Limited Manufacture Warranty |
