Product Details
＋

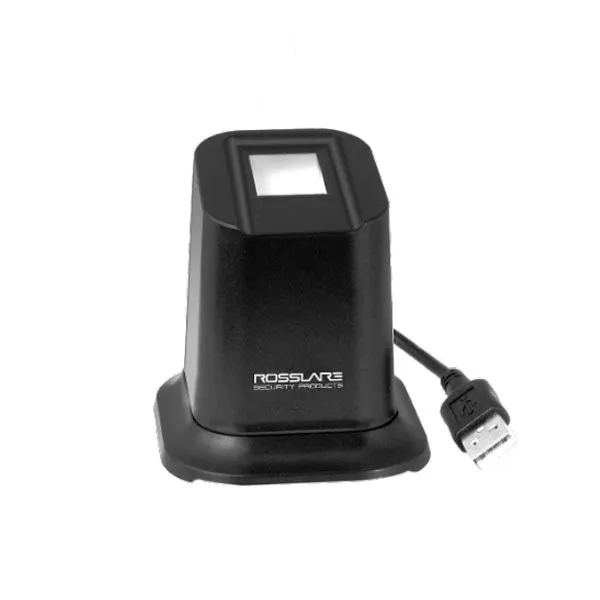

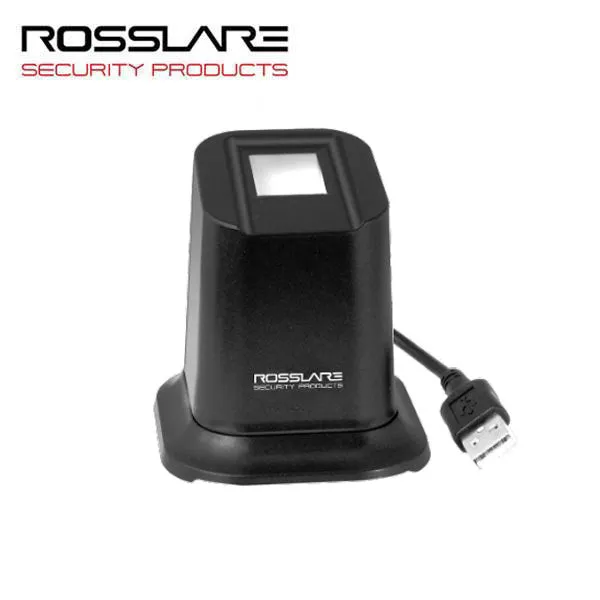

Rosslare’s DR-B8000 is a USB 2.0 fingerprint enrollment scanner to be used with the
Rosslare 8000 series fingerprint readers. The enrollment scanner can be set up
using the AxTraxNG Client software or with the RosslareBio 8000 standalone
management software, which allows third-party controller support. This device
features a modern design with a glass scanning surface, making it robust and
long lasting.
Features
- Compatible with Rosslare AxTraxNG management system
- Supports two speed modes – high speed and full speed – with bulk transfer mode
- Scratch-resistant surface
- Clear finger scan images
- Well designed for convenient use
- USB 2.0 compliant and USB powered
Specifications
| Operating Voltage | 5 VDC (USB powered) |
| Operating Current |
Standby: 5 mA Normal: 80 mA |
| System Compatibility | Compatible with a Rosslare's AxTraxNG, as well as many third-party access control software. |
| Compatible Readers |
|
| Resolution | 500 DPI |
| Enrollment Read Time | <20 ms |
| Image Reading Speed | 15 fps |
| Sensor Size | 22 x 18 mm (0.9 x 0.7 in.) |
| Casing Size | 68 x 74 x 75 mm (2.7 x 2.9 x 3.0 in.) |
| Light Source |
White LED |
| Warranty |
2-Year Limited Manufacture Warranty |
