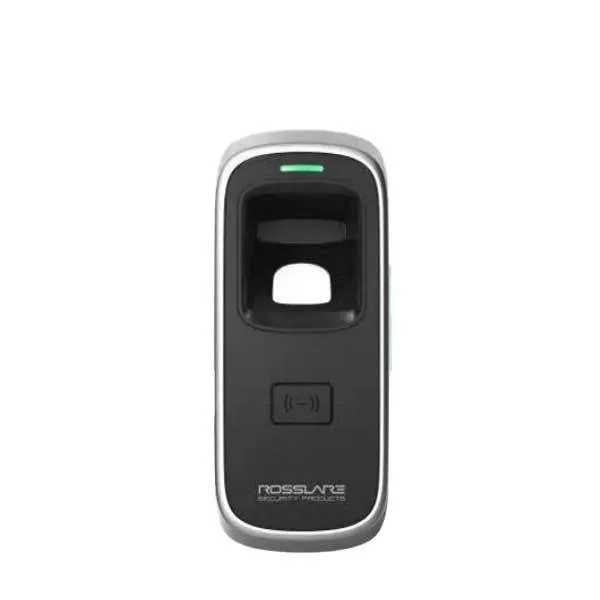

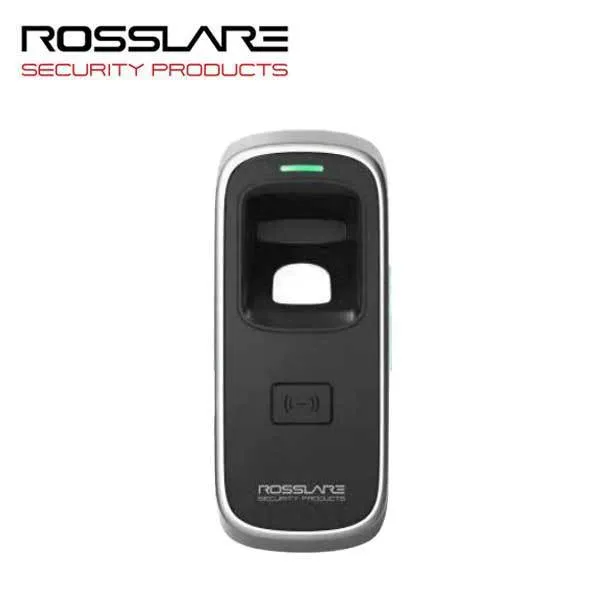

The AY-B8650 features a rugged metal case (IK10) and epoxy potting for protection. This fingerprint and 13.56 MHz MIFARE card reader is suitable for indoor and outdoor operation (IP65). AY-B8650 can enroll 7,000 fingerprint templates (1:N) and enables dual factor authentication (Fingerprint Card). It can connect via Wiegand to any third-party access control panel and has TCP/IP connectivity for terminal management. The reader can be set up easily using the AxTraxNG Client software. Alternatively, Rosslare’s standalone RosslareBio 8000 management software is perfect for interfacing with existing third-party systems.

Features

• Supported by Rosslare AxTraxNG software
• Small compact design for indoor/outdoor use
• Anti-vandal (IK-10)
• Capacity for 7000 templates 1:7000 with highspeed CPU (search time is less than 1 s)
• Combined RFID card and fingerprint for highersecurity with dual factor applications
• Built-in TCP/IP / RS-485, and Wiegand connectivity
• 100,000 non-volatile event log
• Wide thermal operating range (-20°C to 60°C)
• Built-in buzzer and LED indication



Specifications:

Technology:	Optical (sealed optical chamber, scratch-resistant glass, wet or dry finger)
Image Resolution:	500 DPI
Scan Area:	22 x 18 mm (0.9 x 0.7 in.)
Capacity:	Up to 7000 biometric templates on reader
Time 1: N	< 1 s
RFID:	Built-In 13.56 MHz MIFARE
CPU:	32-bit ARM core
Communication:	Wiegand, RS-485, TCP/IP (10/100 Mbps), mini-USB
Dimensions:	2.0 x 4.9 x 1.4 in.
Power:	12 VDC regulated power supply
Rating:	IP65, IK10
Certifications:	CE & FCC

Downloads:

Rosslare - B8650 - Access Control Fingerprint & Card Reader - Outdoor - 7000 users - 13.56 MHz MIFARE - 12VDC - IP65
