Product Details
＋

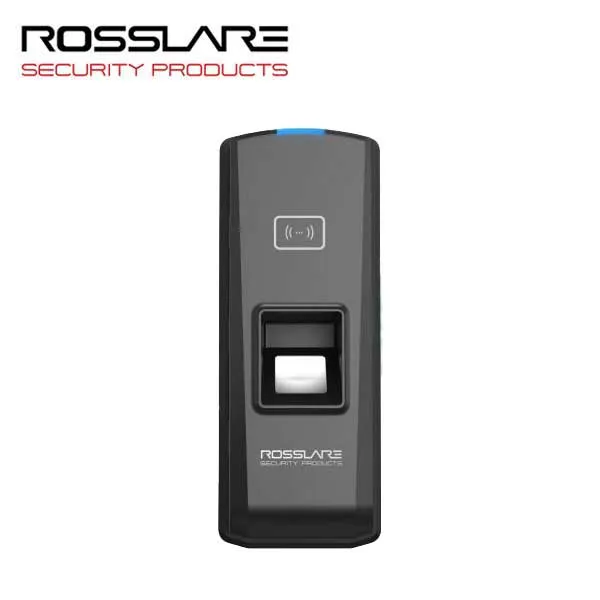

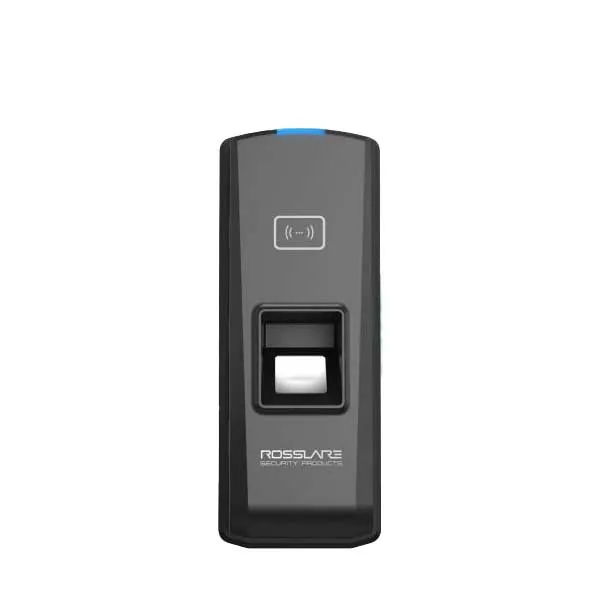

The AY-B8520 is a high-quality fingerprint & card reader for indoor applications, which is ideal for any project by providing excellent performance while remaining cost-effective. With a capacity of 7000 fingerprint templates and a built-in 125 kHz (EM) credential reader, it enables higher security by dual factor authentication (Fingerprint Card). When used with the AxTraxNG™ Server with integrated template management and distribution module, fingerprint template enrollment can be done concurrently on multiple workstations. Rosslare’s standalone RosslareBio 8000 management software is perfect for interfacing with existing third-party systems.
Features
- Small compact design, for indoor use
- Capacity for 7000 templates 1:7000 with high speed CPU (search time is less than 1s)
- Combined RFID card and fingerprint for higher security with dual factor applications
- Built-in TCP/IP, RS-485, and Wiegand connectivity
- 50,000 non-volatile event log
- Wide thermal operating range (-20°C to 60°C)
- Built-in buzzer and LED indication
- Modern design that blends into almost any architectural challenge.
Specifications:
| Technology: | Optical (sealed optical chamber, scratch-resistant glass, wet or dry finger) |
| Image Resolution: | 500 DPI |
| Scan Area: | 22 x 18 mm (0.9 x 0.7 in.) |
| Capacity: | Up to 7000 biometric templates on reader |
| Time 1: N | < 1 s |
| RFID: | 125 kHz EM credential reader |
| CPU: | 32-bit ARM core |
| Communication Ports: |
Wiegand 26-Bit, RS-485, TCP/IP (10/100 Mbps), mini-USB 2.0 |
| Dimensions: | 5.7 x 2.2 x 1.5 in. |
| Power: | 12 VDC regulated power supply |
| Certifications: | CE & FCC |
