The J401 carrier board is a versatile extension board that provides powerful support for NVIDIA Jetson Orin NX/Nano modules. It boasts an impressive range of features, including a 1xGbE port, 1x CAN for data transfer, M.2 Key M for SSD, M.2 Key E for WiFi/Bluetooth, 2 CSI, and 1 HDMI for high-quality video capture and display. The board also includes 4x USB 3.2 ports, a fan, RTC, and a flexible 9-19V power supply, making it suitable for use in a wide range of industrial automation systems.
The J401 carrier board's robust design and comprehensive feature set make it a reliable tool for building powerful AI applications. It can be used in a variety of settings, including video analytics, security and surveillance systems, and autonomous robots. With its excellent video capture and display capabilities, it provides users with high-quality images and reliable performance. Whether you're a hobbyist or a professional developer, the J401 carrier board is an excellent choice for taking your AI projects to the next level.
Features
- Exceptional Performance Carrier Board: Support the NVIDIA Jetson Orin NX/Nano module, leveraging powerful computing power to take on tough tasks with ease
- Versatile Connectivity: Offer 1x Gigabit Ethernet port for networking, 4x USB 3.2 Type-A (10Gbps) ports,1x USB2.0 Type-C port, 1x CAN connector for fast data transfer
- Flexible Storage and Wireless Expansion: Mount with 1x M.2 Key M 2280 and 1x M.2 Key E slots, offering ample space for flexible storage and wireless connectivity expansion
- Advanced Peripherals Supported: Assemble 2x 15 pins CSI camera connector, 1x HDMI 2.1, 1x fan, 1x RTC for multiple peripherals
- Wide Range of Input Voltages: From 9-19V DC, providing flexibility in power supply options
Description
reComputer J401 carrier board supports NVIDIA Jetson Orin NX/Nano module, bringing exceptional performance and being engineered to tackle tough edge computing tasks with ease. It's the perfect choice for developing industrial automation systems, building powerful AI applications, and more.
It features networking capability that is equipped with a Gigabit Ethernet port for fast networking. It also comes with four USB 3.2 Type-A (10Gbps) ports, one USB 2.0 Type-C port, and one CAN connector for versatile connectivity options.
This extension board has been mounted with one M.2 Key M 2280 and one M.2 Key E slot for ample space for flexible storage and wireless connectivity expansion.
In addition, there are multiple peripherals supported on the board. It can enable users to capture and display high-quality video content with two 15-pin CSI camera connectors and the HDMI 2.1 port. There also includes a FAN connector for cooling purposes and one RTC socket for reliable timekeeping.
The board supports a wide input range of 9-19V DC, making it flexible to integrate into a variety of computing tasks. It maintains operation in the temperature range from -10°C to 60°C.
Application
- Industrial automation systems
- Robotics and autonomous vehicles
- Video processing and analytics
- Medical imaging and diagnostics
- Gaming and multimedia
- Digital signage and advertising displays
- Scientific and engineering simulations and modeling
Specification
|
Specifications |
reComputer J401 |
|
Jetson Module supported |
Jetson Orin NX/Nano |
|
Display |
1* HDMI 2.1 |
|
CSI Camera |
2* CSI （2-lane 15pin） |
|
Networking |
1* Gigabit Ethernet (10/100/1000M) |
|
USB |
4* USB 3.2 Type-A (10Gbps); 1* USB2.0 Type-C (Device Mode) |
|
M.2 Key M |
1* M.2 Key M 2280(connector to Support NVMe SSD) |
|
M.2 Key E |
1* M.2 Key E(connector to Support WiFi/BlueTooth) |
|
Fan |
1* 4 pin Fan Connector(5V PWM) |
|
CAN |
1* CAN |
|
Multifunctional Port |
1* 40-Pin Expansion header,1* 12-Pin Control and UART header |
|
RTC |
1*RTC 2-pin,1*RTC socket |
|
Power |
9-19V |
|
Power Supply |
DC 12V/5A(Barrel Jack 5.5/2.5mm) |
|
Temperature |
-10℃~60℃ |
|

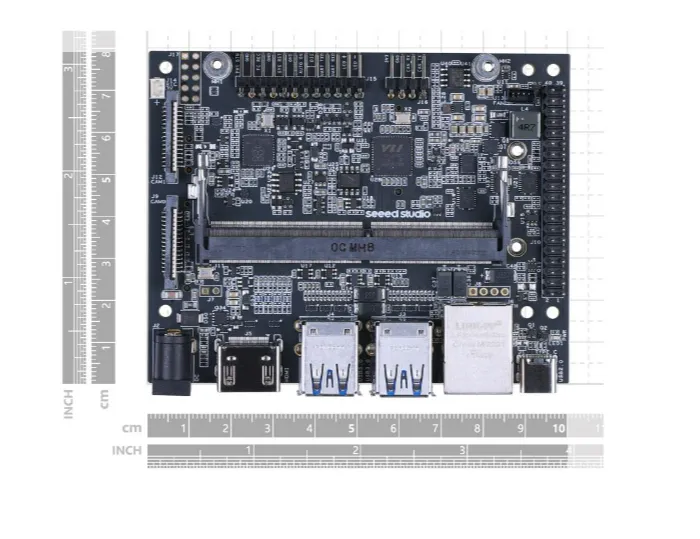

Mechanical |
100mm*80mm |

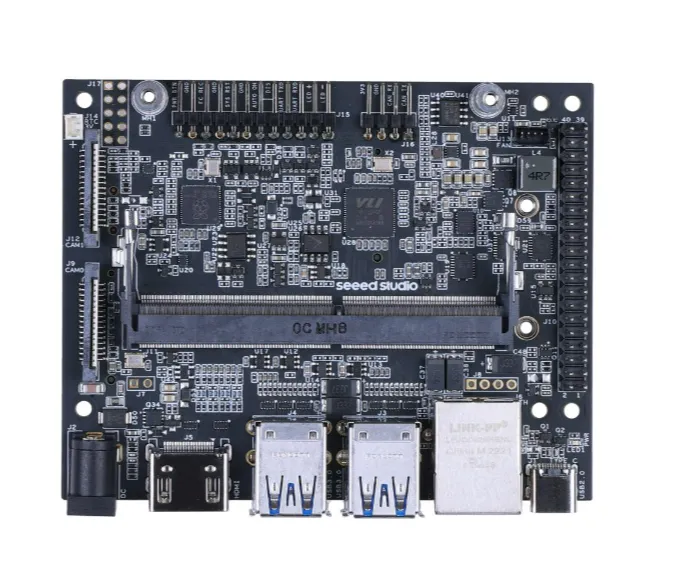

Hardware Overview

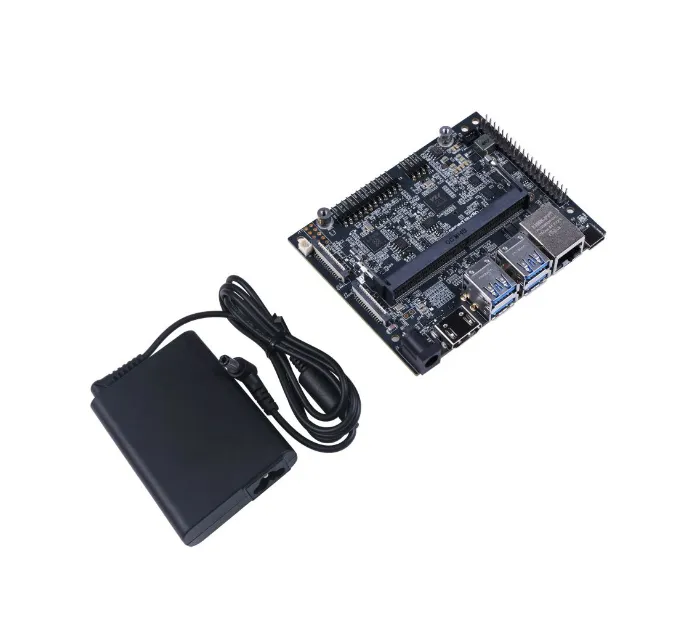

Part List
|
Seeed carrier board (reComputer J401) x1 |
x1 |
|
12V/5A power adapter x1 |
x1 |
