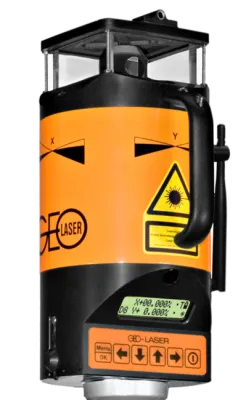

NL-9V Fully Automatic 2 Inclination Laser
PRODUCT OVERVIEW
The NL-9V is a surface construction laser capable of electronic self-levelling over two axes. It emits a laser beam which turns into a light plane as it rotates horizontal with single or double inclination up to steep inclination.
FEATURES
-
Fully automatic
Automatic levelling. inclination zeroing and cut-out in case of low battery or jerky movement. -
Robust metal housing
laser/remote control Plastic-coated swept and filled with nitrogen 100 % watertight. -
Inclination measurement parallel to ground
Even if the inclination is not known. it simply can be adapted to the ground. -
Increased safety
Control indicators with blinking warning system for levelling operation status and low battery. The name of the owner can be saved in the device to protect against theft. Automatic laser cut-out in case of jerky movement (bumps), Shift guard for X/Y inclination setting and rotational speed. -
Illuminated clearly legible LCD display
Self-explanatory for on/off device data company data lock function inclination algebraic sign unit % or ‰ rotor speed operating status battery level and menu. -
Special laser beam quality
Diode laser with visible beam high life expectancy and low power consumption. -
Range deactivation of laser
Thereby the emission of laser beam can be limited from 400 gon to 300 gon or 200 gon or 100 gon. -
Lithium ion rechargeable battery
Operation time to 27 hours with one charge. Rechargeable in 5 hours max. without having to take out the battery. -
Two-way radio remote control (optional)
Operation of the laser completely via radio control up to 350 m.
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
SPECIFICATIONS
Laser class | 2, P P < 2,6 mW |
---|---|
Laser | Diode visible red 658 nm to steep inclination. |
Laser range | to 1000 m |
Inclination range | X-Axis - 5 % to 20 % Y-Axis - 5 % to 5 % |
Self-levelling range | over the complete inclination range |
Reading accuracy | 0,001 % |
Permissible deviation | ± 5 mm/100 m |
Operating time | up to 27 hours |
External power supply | 11 V DC to 14 V DC with cable 0117.02 |
Undervoltage cut-out | yes |
Waterproof | to 0.35 bar |
Temperature range | - 10° C to 50° C |
Weight | 3,6 kg |
Rotor speed | from 600 - 1000 RPM |
Adjustment | possible in the field without having to open the device |
