Name: microSD Click
SKU: 468831

Product Details ＋

Need more additional memory? We’ve got just the thing for you - microSD click. It features a microSD card slot for microSD cards used as a mass storage media for portable devices. microSD click is designed to run on 3.3V power supply. Industry standard SPI interface ensures simple communication at high data rates. Use it for reading or storing data like music, text files, videos and more.

Using microSD cards

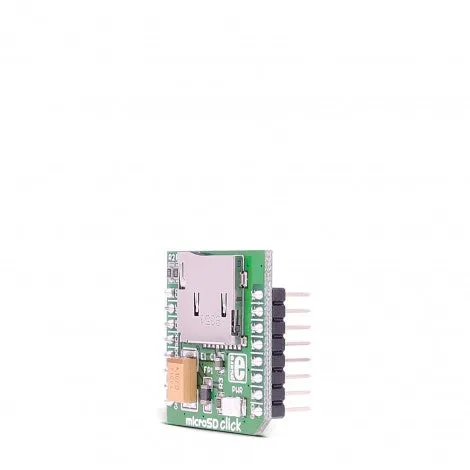

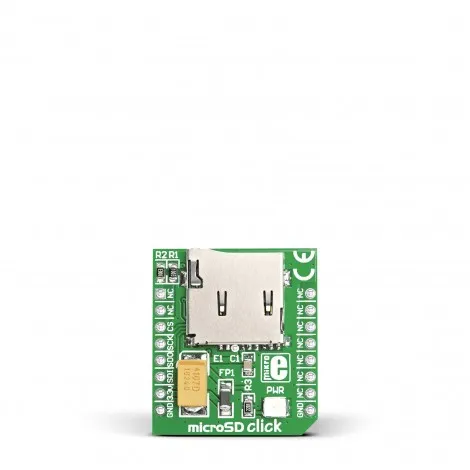

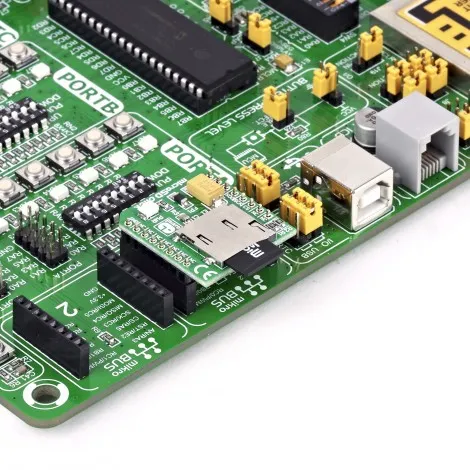

Board contains the slot for standard microSD cards. Once power is turned on, power LED will indicate that board is in operation. Data is read and written to the card using industry standard SPI interface.

Power supply – 3.3V only

Board is designed to use 3.3V power supply only. If you need to add MMC/SD feature to your 5V prototype or development board, we recommend you to use other boards such as the MMC/SD Accessory Board.

Specifications

Type	microSD
Applications	microSD click is ideal for storing and reading acquisition data, images, music, video and data files, or any other application where fast mass storage is needed.
On-board modules	microSD card slot
Key Features	microSD card slot for microSD cards used as a mass storage media for portable devices
Interface	SPI
Compatibility	mikroBUS
Click board size	S (28.6 x 25.4 mm)
Input Voltage	3.3V

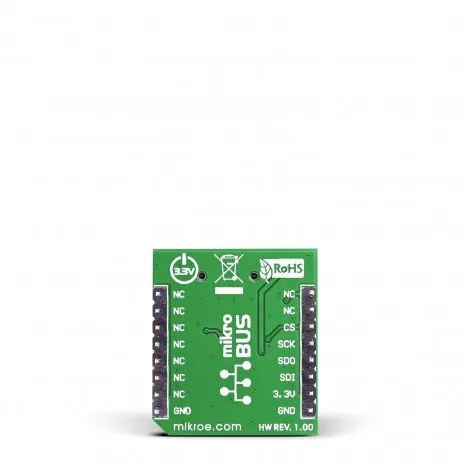

Pinout diagram

This table shows how the pinout on microSD click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
	NC	2	RST	INT	15	NC
SPI chip select	CS	3	CS	TX	14	NC
SPI clock	SCK	4	SCK	RX	13	NC
Serial data output	SDO	5	MISO	SCL	12	NC
Serial data input	SDI	6	MOSI	SDA	11	NC
Power supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

Programming

Code examples for microSD click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet shows part of the code that is responsible for microSD click initialization.

01 void main() {
02   const char   FILL_CHAR = 'm';
03   unsigned int i, SectorNo;
04   char         mmc_error;
05   bit          data_ok;
06
07  ANCON0 = 0;                      // Configure ports as digital I/O
08   ANCON1 = 0;
09   ANCON2 = 0;
10
11  Mmc_Card_Detect_Direction = 1;   // Set card detection pin to be input
12
13  UART1_Init(19200);               // Initialize UART1 module
14   Delay_ms(10);
15   UART1_Write_Line("Insert microSD Card");
16
17  while(Mmc_Card_Detect)           // Loop until card is detected
18     ;
19
20  Delay_ms(500);
21
22  UART1_Write_Line("microSD Card inserted");  // microSD Card present report
23
24  // Initialize SPI1 module
25   SPI1_Init_Advanced(_SPI_MASTER_OSC_DIV4, _SPI_DATA_SAMPLE_MIDDLE, _SPI_CLK_IDLE_LOW, _SPI_LOW_2_HIGH);
26
27  // Initialize MMC card
28   mmc_error = Mmc_Init();
29   if(mmc_error == 0)
30     UART1_Write_Line("MMC Init-OK");    // If MMC present report
31   else
32     UART1_Write_Line("MMC Init-error"); // If error report
