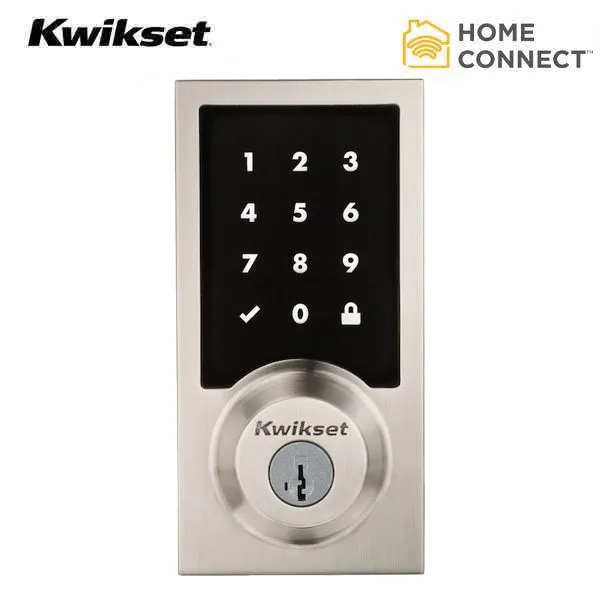

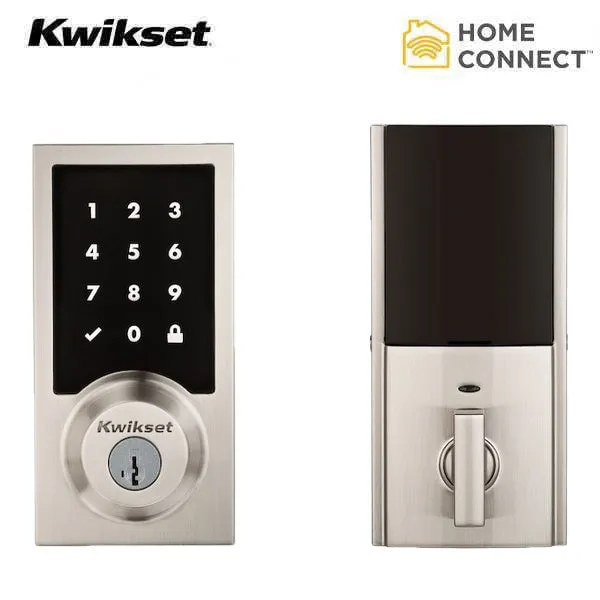

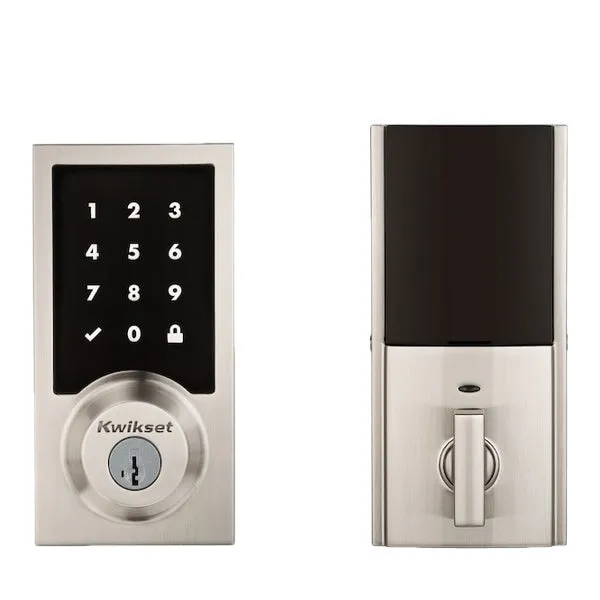

The SmartCode touchscreen Smart Lock with Home Connect technology enables the lock to wirelessly communicate with other devices in the home. The lock allows the user (through a web-enabled device) to remotely check the door lock status, lock or unlock the door, and receive notifications via email or text. SmartCode is a one-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. It features patented SecureScreen™ technology to prevent code detection from fingerprints on the touchscreen. SmartCode is easy to install, program, and use, and operates on 4 AA batteries. It also features SmartKey Security as the backup keyway. This single-cylinder deadbolt can be locked or unlocked by using the keypad or key from the outside as well as the turn button from the inside. The satin nickel finish's crisp, clean appearance adds to the product's overall look and brings a modern feel.
Features:
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options.
- Comes with 2 keys

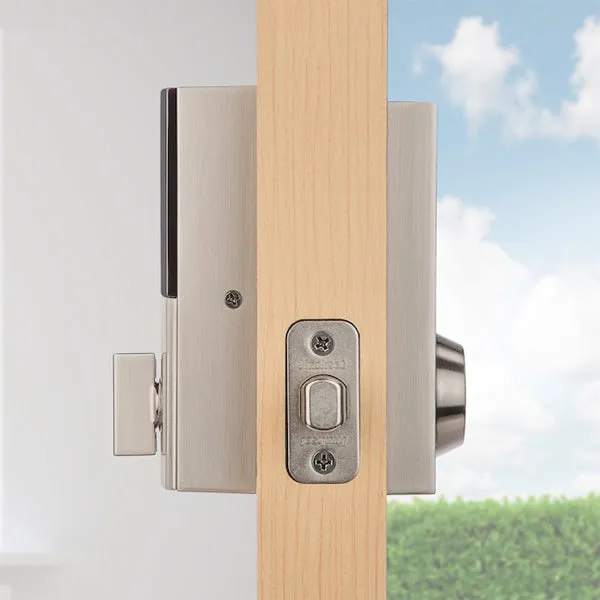

- The deadbolt latch has a round corner faceplate
- ANSI?BHMA grade 2 certified
- The latch has an adjustable backset of 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1-inch deadbolt throw
- The locking mechanism functions with a turn piece on the interior of the lock
- Meets or exceeds underwriter laboratories' (UL) testing requirements specified for each product grade or rating
- Requires 4 AA batteries, included
- The keypad stays lit for 30 seconds after inactivity
- Expanding your security system solution with Home Connect technology, your keyless entry lock will now communicate wirelessly to security and home automation systems via Z-wave
Specifications:
| Product Type | Deadbolt |
| Style | Contemporary |
| Entry Has Smartkey | Yes |
| Has Microban | No |
| ANSI Grade | Grade 2 |
| Min Door Thickness | 1-3/8" |
| Max Door Thickness | 1-3/4" |
| Assembled Height | 5-17/32" |
| Assembled Width | 2-25/32" |
| Assembled Length | 1-3/16" |
| Latch Backset Size | Adjustable |
| Cross Bore | 2-1/8" |
| ADA Compliant | No |
| Voice Control Enabled | Google assistant via Wink hub; Google assistant via Samsung SmartThings; Alexa via Wink Hub; Alexa via Samsung SmartThings |
| Lock Technology | Z-Wave500 |
| Hub Required | Hub required for remote access |
| Electronic Works with | Alexa; SmartThings: Wink |
| # of codes | 30 |
| Battery Type Required | 4 AA, included |
