Product Details
＋

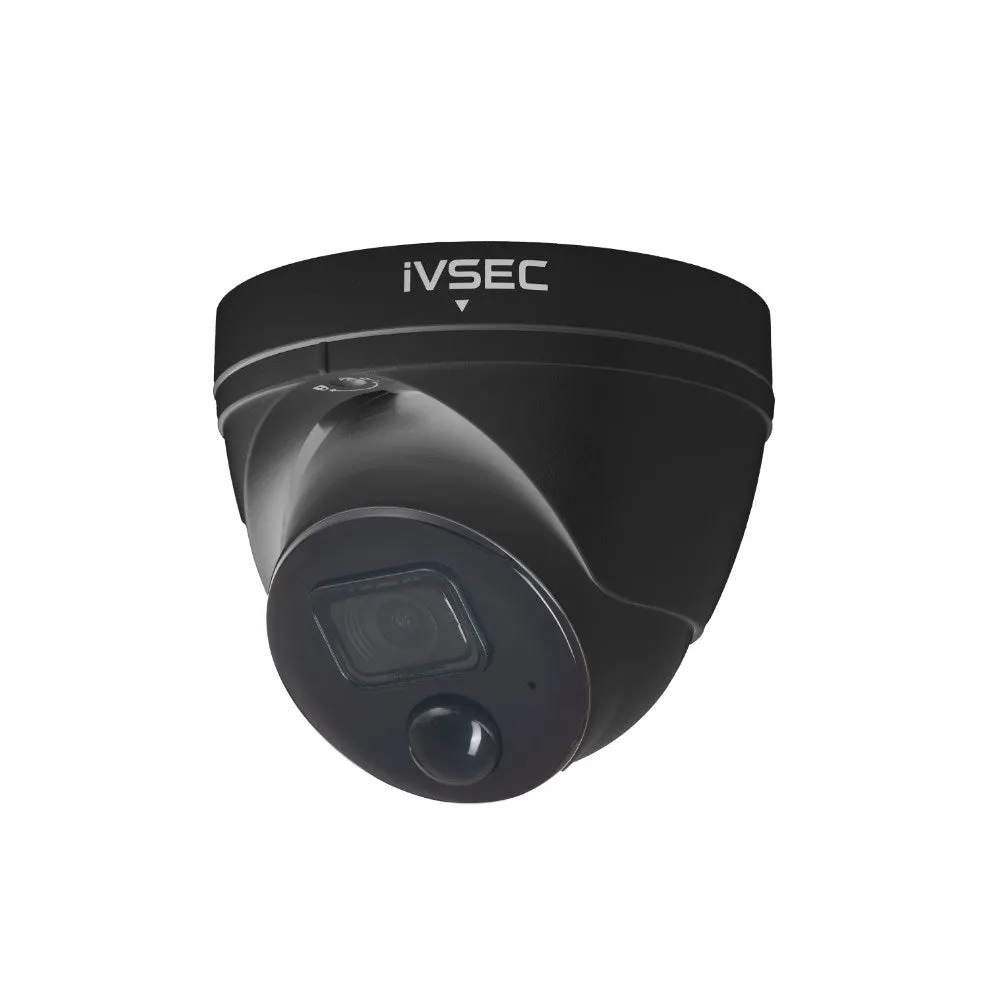

IVSEC TURRET IP CAMERA, 8MP, SONY SENSOR, 3.6MM LENS, POE, IP66, 30M IR, IVS, BLACK
SONY Starvis sensor, Human and vehicle tracking, Extra photos/frames per second (FPS), Improvements to Wide Dynamic Range (WDR) to handle difficult lighting. Locking mechanism on housing. Supports SD card. New tech Infra-red LEDs.
Technical Specifications
| Camera Type | Dome |
| Image Sensor | 1/2.8″ 8MP Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 8 |
| Maximum Video Resolution | 3840 x 2160 |
| Lens | 3.6 mm (H.FOV: 88°) |
| Lens Type | Fixed |
| Maximum Night IR Distance (M) | 30 |
| Image clarity | 4 |
| Connectors | RJ-45 |
| Video Compression | H.265, H.264 |
| ONVIF (depends on firmware version) | ONVIF( Profile S/G/T) |
| Operating Environment | -30～ 55°C/less than ≤ 95% RH |
| Dimensions | 100×100 mm |
| Weight (Net) | 0.44 |
| Accessories | IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | <7W |
| Connectors (web) | RJ-45 , DC Power Input |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| Vandal Resistant | Yes |
| Frame Rate at Resolution | 20 |
| Day/Night Mode | Auto |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card | Yes |
| Video Compression | H.265, H.264 (3 streams) |
| Audio Streaming | Yes (microphone included) |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video | IVS such as Perimeter Intrusion Detection, Human and Vehicle Detection, Face Detection, Motion Detection. |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet (10/100 Base-T) |
| UPNP | Yes |
| In The Box | Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs |
