Honeywell FG1625RFM Glassbreak Detector
The Honeywell FG1625RFM Glassbreak Detector by Honeywell is their latest in glassbreak detectors that offers FlexCore signal processing. With FlexCore processing the detector lowers the event of a false alarm because it can tell the difference between breaking glass and other sharp noises such as knocking on the door, things being dropped, etc.The FG1625RFM requires a 1" diameter hole to fit snuggly and securely into a drop ceiling or sheetrock. The detector can be tested by clapping your hands while it is in test mode. You can also select the sensitivity of it by adjusting the two DIP switches in the unit with a small screwdriver.
The FG1625RFM can detect breaks in all types of glass including plate, tempered,laminated, and wired to name a few.
Here are the specifications for the FG1625RFM:
|

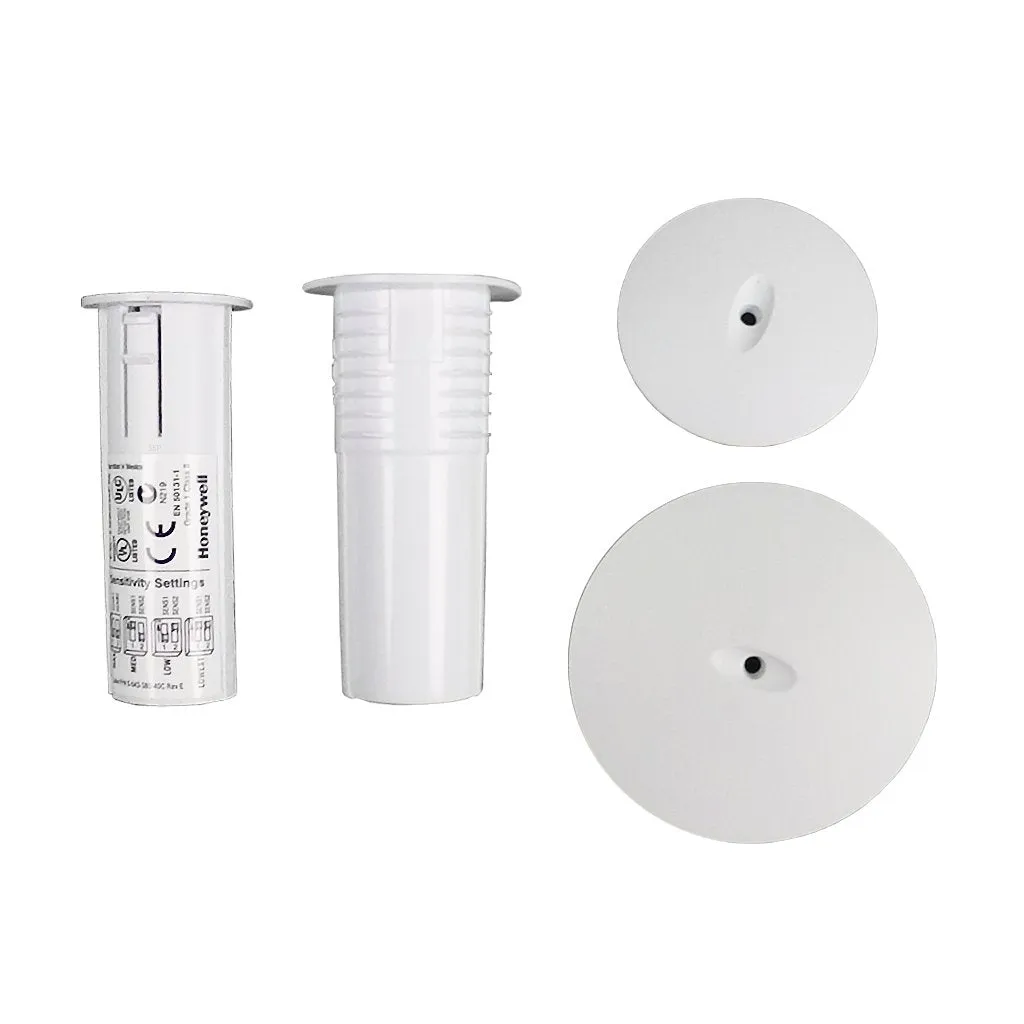

Physical Dimensions: - Small Front Cover: 1.8" (45mm) diameter - Large Front Cover: 2.5" (63.5mm) diameter - Wall Sleeve: For installation in 1.0" (25mm) hole. Maximum depth, without wire 2.6" (66mm) |
Power Requirements: - 8 - 16VDC, 5mA typical at 12VDC; 12mA max (Latched LED) - AC ripple: 4V peak to peak at the normal 12VDC - RFI Immunity 30V/m, 10 MHz -1000 MHz |
Range: - 25' (7.6 m) maximum, omnidirectional. Range is adjustable; no minimum range |
|
Alarm Relay: - FG-1625: Form A, 90mA max, 16VDC max |
Alarm Duration: - Five seconds (unaffected by alarm LED latching) |
ESD Immunity: - 10kV discharges of either polarity to exposed surfaces |
|
Weight: - Product Only: 0.96 oz (27.2g) Pkgd Product: 1.90 oz (54g) |
Operating Temperature: - 14° to 122° F (-10° to 50° C) - Storage: -4° to 122° F (-20° to 50° C) |
|
