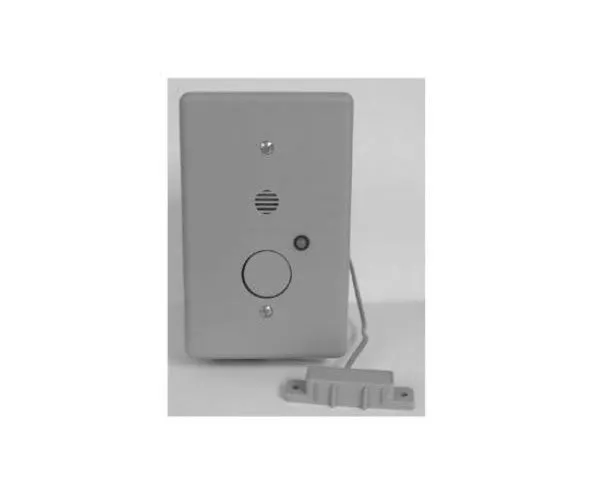

Home Water Leak Instant Alarm System - Form C Relay

The Home Water Leak Alarm System is designed as a signaling device for use as a self contained Home Water Leak Alarm System. The Instant Home Water Leak Alarm System will sound a local alarm and flash an LED indicator, should water come in contact with the alarm's water sensor.

The Home Water Leak Alarm System uses a microprocessor to monitor a Water Sensor, a Cancel Button, Supply Voltage and provides control for a Sounder, LED indicator and a Form C Relay. The Water Alarm System is set to alarm the instant water is bridged across the two stainless steel wire straps on the water sensor. The sounder will continue to sound until the reset/cancel button is depressed. Other features for the Instant Home Water Leak Alarm System would include an adjustable sounder volume, power/alarm LED indicator, a latching relay and a low battery signal.

Features

Instant Alarm
Signaling Device
Self Contained
Local Alarm and Flashing LED
Low Battery Indicator
6’ Jacketed Lead
Form C Relay
Additional Sensors, 20’ jacketed lead, max. wire run 106 ft. (WS-20-240-S, Sold Separately)
Up To 6 Sensors Per Unit Capacity
Made In U.S.A.

Technical Specs:

Battery Type (Volt Alkaline)		9
Battery Life Approximately (Months)		6
Recommended External Power (VDC @ mA)		9 to 12 @ 100
Low Battery Mode (VDC)		6.5
Sounder Rated (dB at ft.)		85 at 10 (3.5 M)
Wire Run Maximum		106’
Nominal Switching Capacity (A@VDC)		2@30
Max Switching Power (W)		60
Max Switching Current (A)		2
