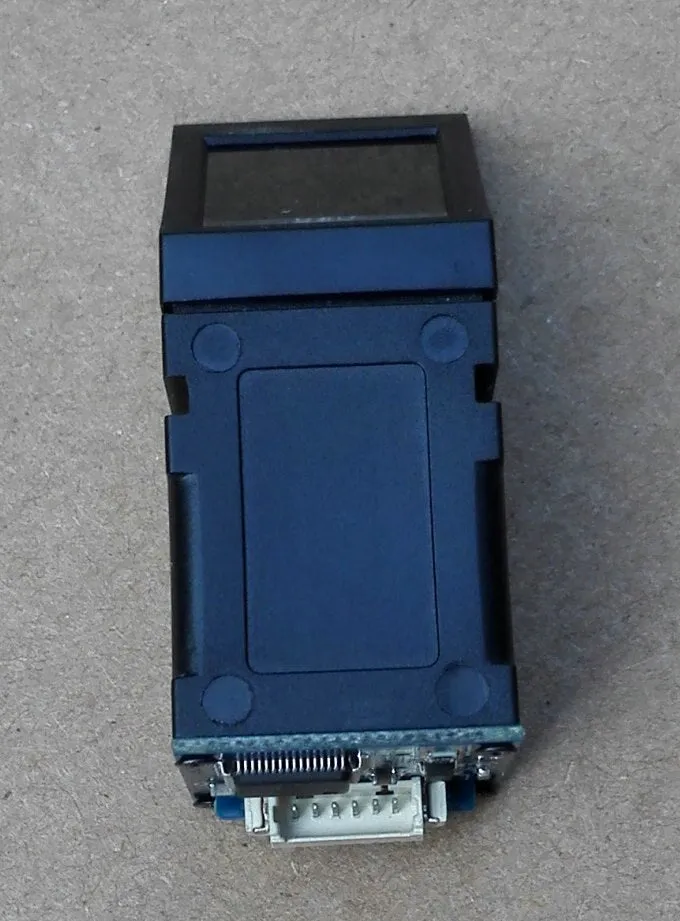

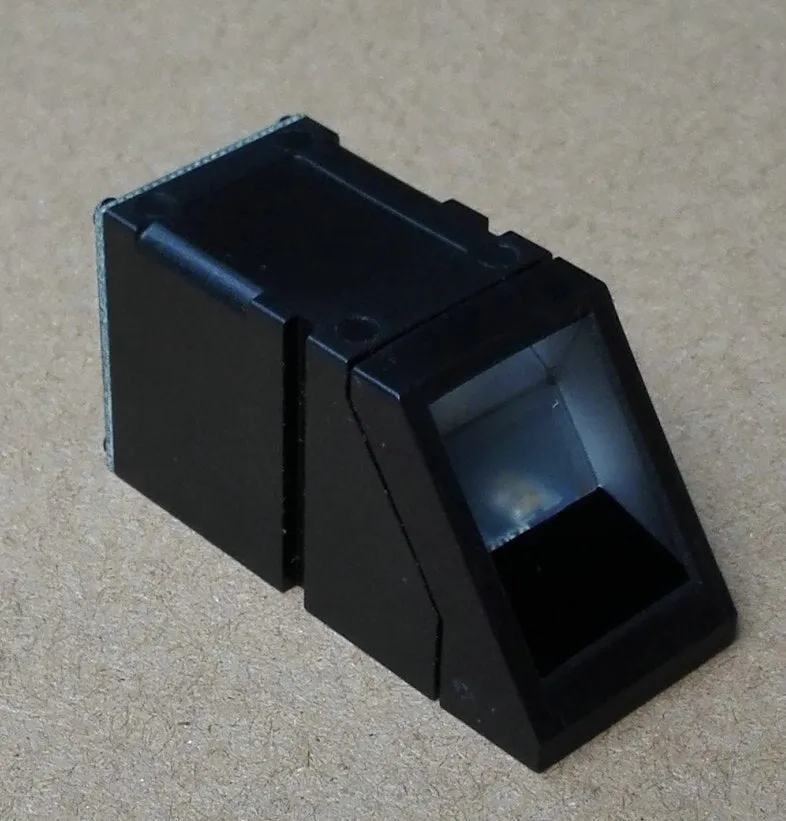

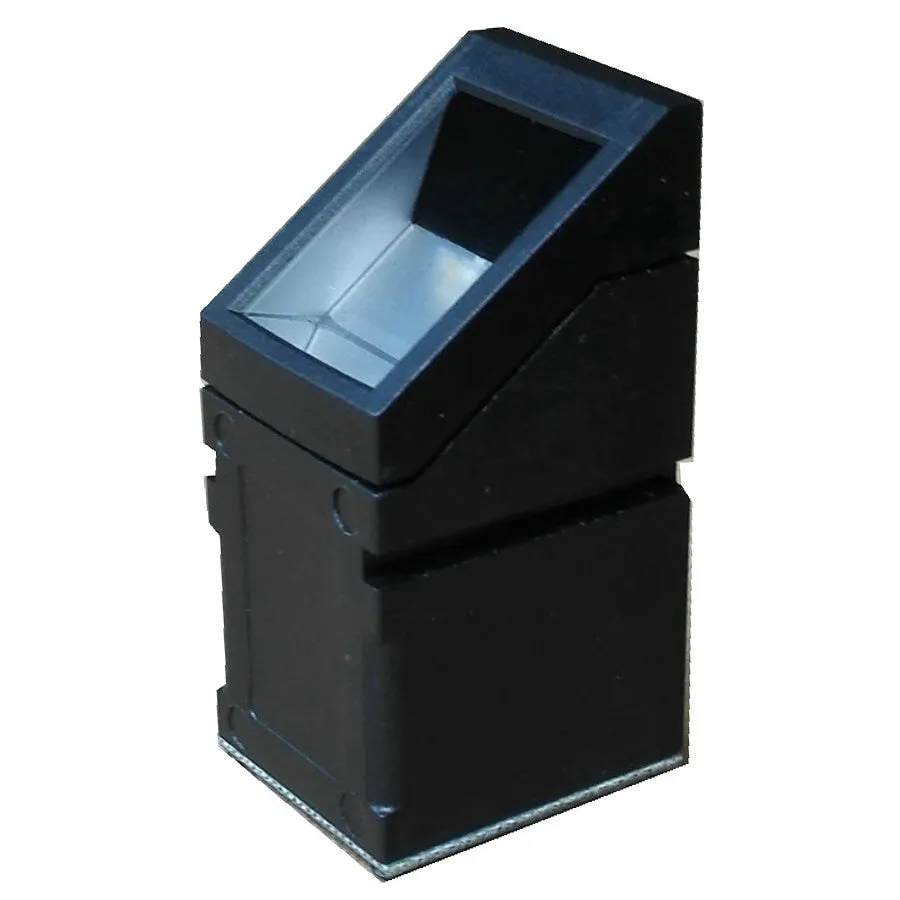

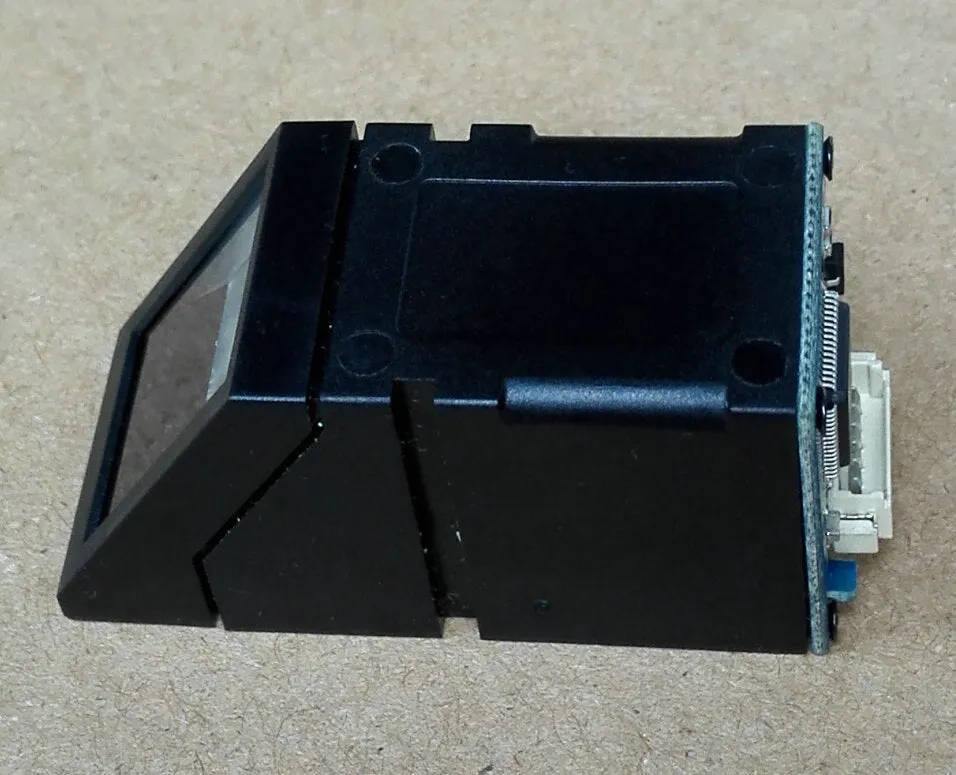

GROW R307 Finger Touch Function Optical fingerprint Module Sensor Reader
Mian Function:
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi
7. Finger detection function.
Specification:
|
Model
|
R307
|
|
Type
|
Optical Fingerprint Module
|
|
Interface
|
USB,UART(RS232 TTL)
|
|
Resolution
|
508 DPI
|
|
Voltage
|
DC 4.2-6V
|
|
Fingerprint Capacity
|
1000
|
|
Sensing array
|
300000 pixel
|
|

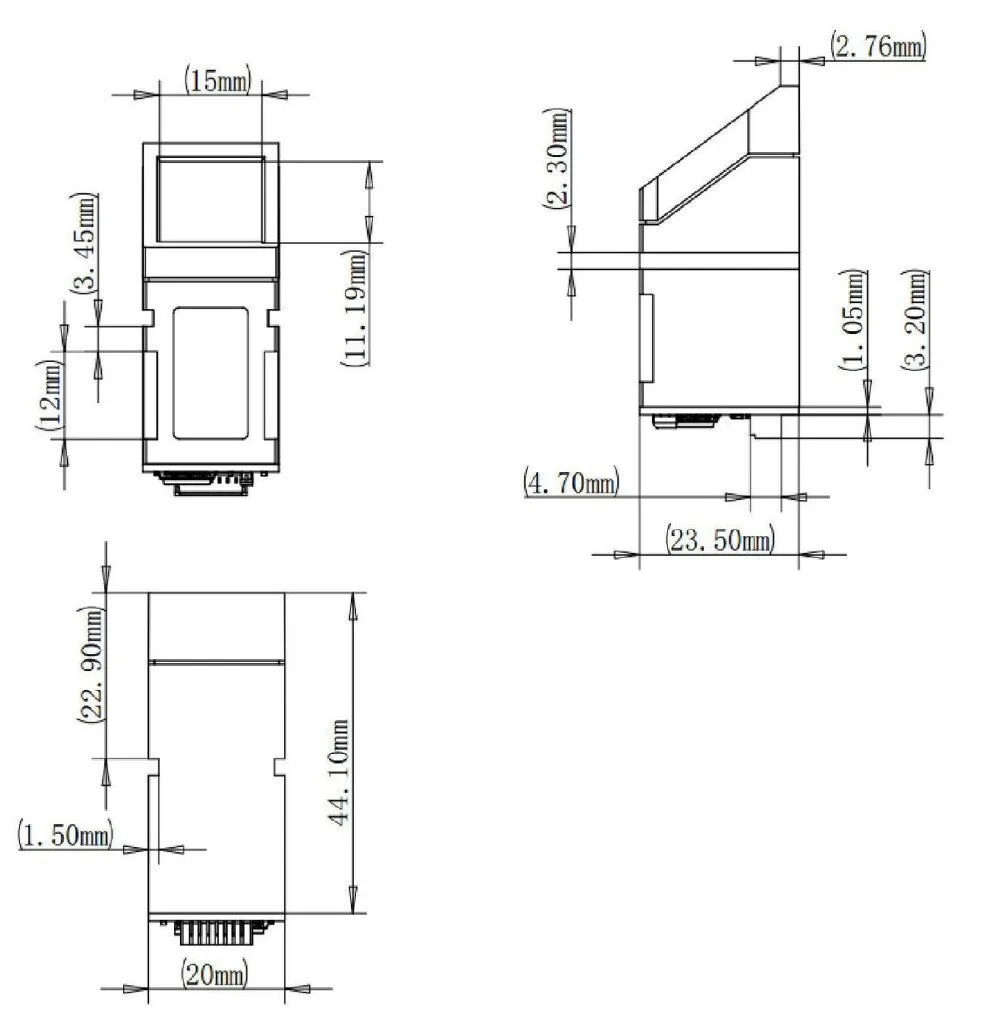

Fingerprint module size
|
52*20*22 (mm)
|
|
Effective collection area
|
11 * 15 (mm)
|
|
Scanning Speed
|
< 0.2 second
|
|
Verification Speed
|
< 0.3 second
|
|
Matching Method
|
1:1; 1:N
|
|
FRR
|
≤0.1%
|
|
FAR
|
≤0.001%
|
|
Work environment
|
-20C ---50C
|
|
Work Humidity
|
10-85%
|
|
Anti-static capacity
|
15KV
|
|
Abrasive resistance intensity
|
1 million times
|
|
Communications baud rate (UART):
|
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
|
You can dowload R307 user manual from the following website:
If need SDK files, pls contact us freely.
For shipping list, please see the following photo:

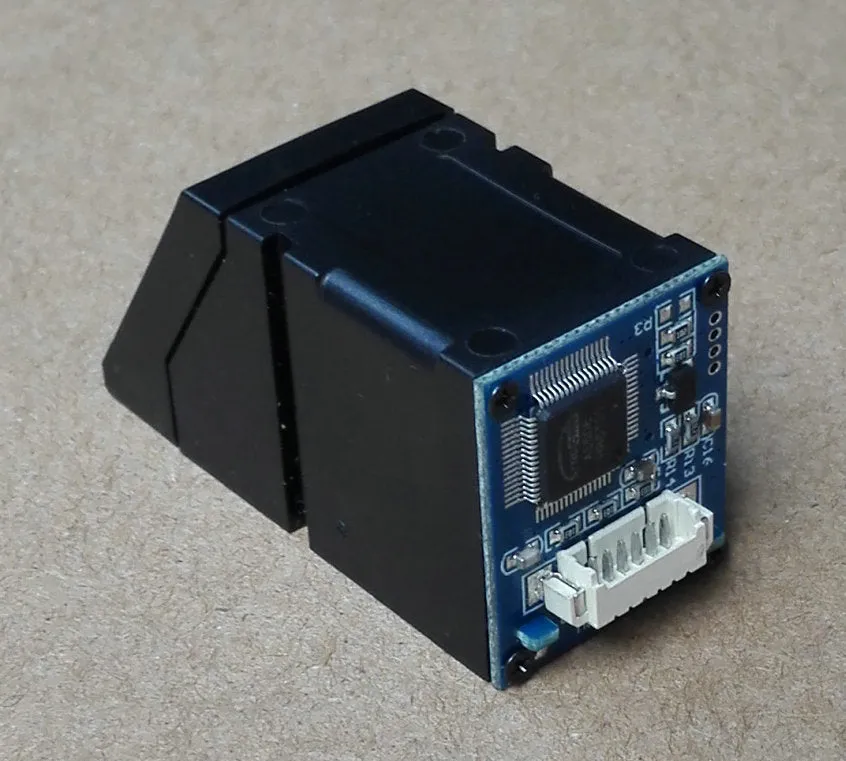

R307 fingerprint module circuit board diagram
3.3VDC power may be selected to supply when short ciucuit as the following drawing.
Caution: Operating carefully, and R307 will be damaged when wong connection.
Need to install the bracket, please click here:
Sliver:
Black:
If need fingerprint control board, R307 can be used together with K200,K212,K215,K216 fingerprint control board.
