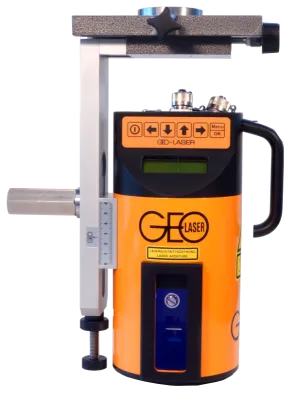

GEO-Laser VL-70 Fully Automatic Drifting Pipe Laser Level
PRODUCT OVERVIEW
The VL-70 is a systematic further development of our proven GEO drifting laser VL-11. Although it was specially developed for pipe driving, it can also be used for many other purposes. The target beam can be levelled automatically or directed at a defined angle. The laser power of the beam is adjustable.
FEATURES
-
Fully automatic
Automatic levelling, inclination zeroing, direction centring and cut-out in case of low battery or jerky movement. -
Advantageus diode laser beam
Low power consumption with high life expectancy. Target beam laser power adjustable in five steps from 1 to < 5 mW for various requirements. -
Increased safety
Control indicators with blinking warning system for levelling, low battery and end positions. Shift guard for inclination and direction setting. The values that have been set remain stored in the laser even after switching off or in the case of a low battery. The name of the owner can be saved in the device to protect against theft. -
Illuminated, clearly legible LCD display
Self-explanatory, for on/off, device data, company data, lock function, inclination, algebraic sign, unit % or ‰, centring, direction limitation, operating status and menu. -
Easy-to-use keyboard
Clear layout, big, user-friendly, self-explanatory keys. -
Robust metal housing
Anodised, plastic-coated, filled with nitrogen, 100% watertight. -
Flexible power supply

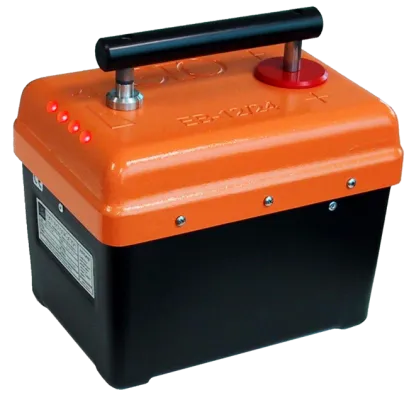

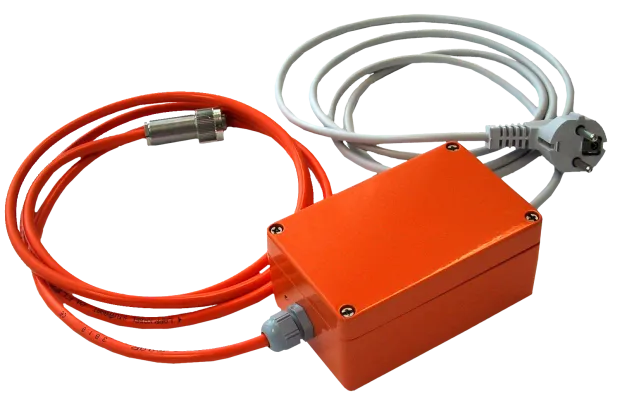

12 V/DC = Energy box EB-12/24 or 12 V rechargeable battery 230 V/AC = Power supply NE-12 or other 12 V/DC power sources -
Menu
For various settings and adjustments: sensitivity, kick guard, % or ‰ , shutter, flicker, laser power, factory defaults and service/workshop information. -
Perfected design
Excellent handling, high functionality and reliable operation.
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
SPECIFICATIONS
| Laser class | class 3R, < 5 mW |
|---|---|
| Laser | Diode visible red 658 nm |
| Laser range | up to 500 m |
| Beam diameter at laser | at laser 13 mm, ca. 5,5 mm per 100 m |
| Inclination range | - 10 % to 40 % |
| Reading accuracy | 0,001 % |
| Permissible deviation | ± 0,005 % |
| Direction setting | ± 5 % (10 m over 100 m) |
| External power supply | 10 to 13,8 Volt DC/ 0,4 A |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 20° C to 50° C |

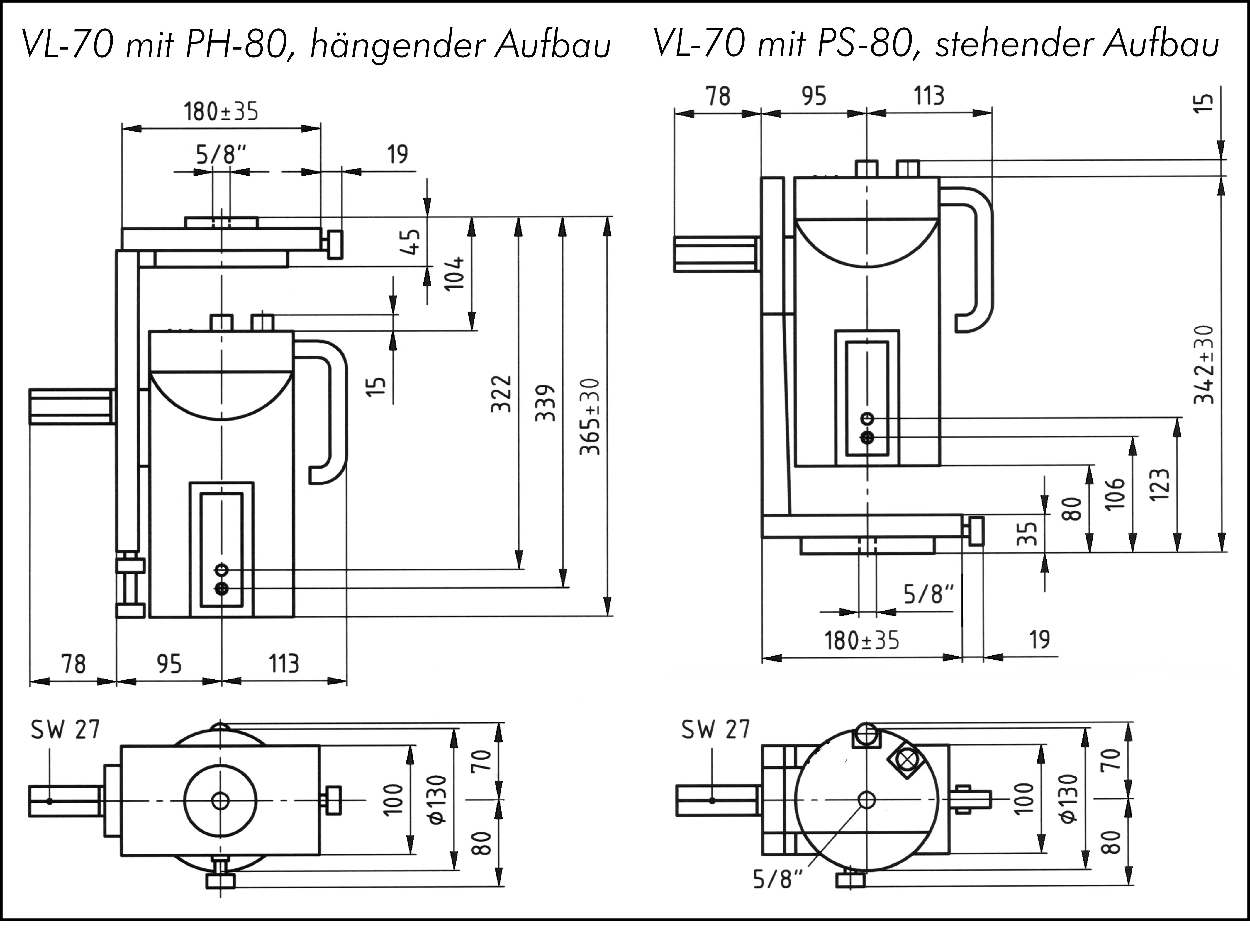

| Weight | VL-70 3,1 kg PH-80 2,2 kg = 5,3 kg |
| Guarantee | 24 month |
| Adjustment | possible in the field without having to open the device |
