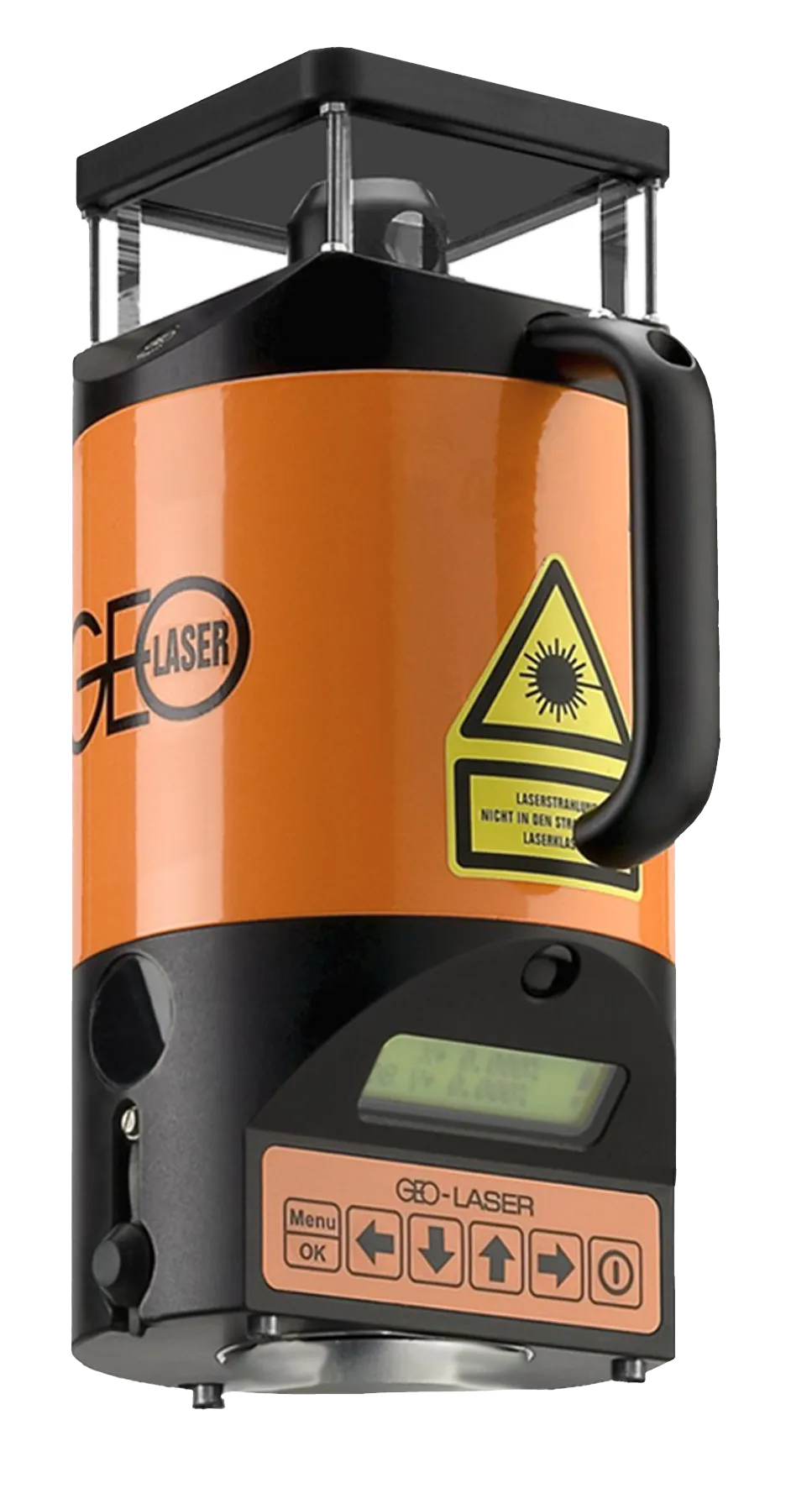

GEO-Laser RL-71L Fully Automatic Rotating Laser with 1km range
PRODUCT OVERVIEW

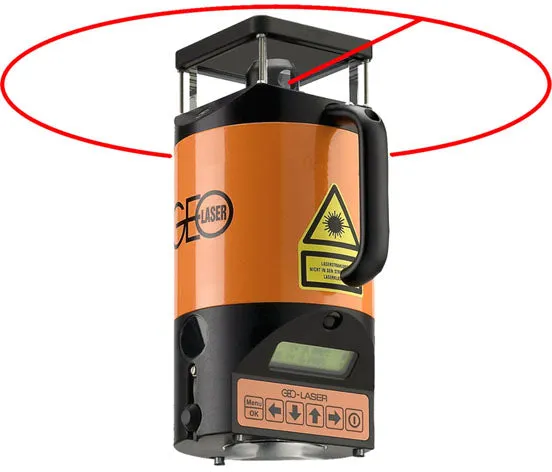

The automatic rotary laser, type RL-70L/-71L is an all-round laser for horizontal use capable of electronic self-levelling over two axis. It emits a laser beam, which turns into a light plane as it rotates.
FEATURES
-
Performance features
Laser class 3R, laser power < 5 mW. -
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movement. -
Automatic function can be switched off
Therefore inclination adjustment by points of reference is possible. -
Optical sight
For quick alignment of the inclination axis. -

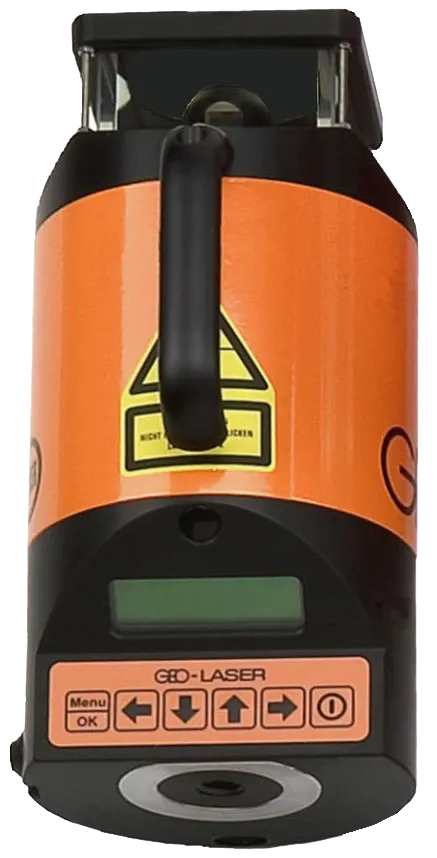

Illuminated, clearly legible LCD display
Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu. -
Increased safety
Control indicators with blinking warning system for levelling, operating status and low battery. -
Robust metal housing
100 % watertight, Plastic-coated, swept and filled with nitrogen. -
Special laser beam quality
Diode laser with visible beam, high-powered lens, high lifeexpectancy and low power consumption. -
Lithium ion rechargeable battery
Operation time to 28 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery -
Uncompromisingly easy
All you have to do is switch on/off. The rest is done by the RL-70L/-71L automatically. -
Checking and adjustment
Easily possible at the building site as well. The device does not have to be opened for adjustment. -
Examples of use
Industrialised building, sheet pile ramming, ceiling installation, screed work, height transfer, height control, excavation work, road/track levelling, shuttering, foundation work, concrete work, lifting of buildings, tank construction, body-making and for machine control of excavators, caterpillars, finishers, graders.
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
SPECIFICATIONS
| Laser class | 3R, < 5 mW |
|---|---|
| Laser | Diode visible red 635 nm |
| Laser range | to 1000 m |
| Beam diameter at laser | at laser 13 mm |
| Self-levelling range | ± 5 % |
| Permissible deviation | ± 5 mm/100 m |
| Operating time | up to 28 hours |
| External power supply | 11 V DC to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to 50° C |
| Weight | 3,4 kg |
| Guarantee | 24 month |
| Rotor speed | adjustable in steps from 0 to 800 RPM |
| Adjustment | possible in the field without having to open the device |
