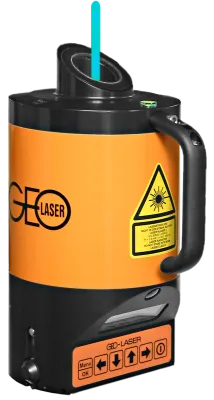

GEO-Laser LL-91L Plumb up /-2.5.0mm / 100m Green Beam Laser
PRODUCT OVERVIEW
The automatic plumb laser LL-91L with green laser beam is a laser for plumbing up in laser class 3R, capable of electronic self-levelling over two axes. OIur new green laser beam noticeably enhances visibility of the target, even in difficult lighting conditions. This is because the human eye is four times more receptive to green light than to red. In addition, green light does not get overpowered so much by the red spectrum of the sunlight.
Every time where there is the need to project a point exactly vertically up, this laser is the right choice.
This laser is also available with a higher precision of ± 2,5 mm/100 m and alternatively as LL-90L in laser class 2.
-
Performance features
Laser class 3R, laser power < 5 mW, high-power version. Laser power adjustable in five steps. -
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movement. -
Automatic function can be switched off
Therefore inclination adjustment by points of reference is possible. -
Illuminated, clearly legible LCD display
Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu. -
Robust metal housing
100 % watertight, Plastic-coated, swept and filled with nitrogen. -
Special laser beam quality
Diode laser with visible beam, high-powered lens, high life expectancy and low power consumption. -
Lithium ion rechargeable battery
Operation time up to 34 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery. -
Increased safety
Control indicators with blinking warning system for levelling, operating status and low battery. -
Uncompromisingly easy
All you have to do is switch on/off. The rest is done by the LL-91 automatically. -
Checking and adjustment
Easily possible at the building site as well. The device does not have to be opened for adjustment.
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
SPECIFICATIONS
| Laser class | 3R, < 5 mW |
|---|---|
| Laser | diode laser, visible green, 520 nm |
| Laser range | up to 500 m |
| Beam diameter at laser | at laser 13 mm |
| Self-levelling range | ± 5 % |
| Permissible deviation | ± 2.5 mm/100 m |
| Operating time | up to 34 hours |

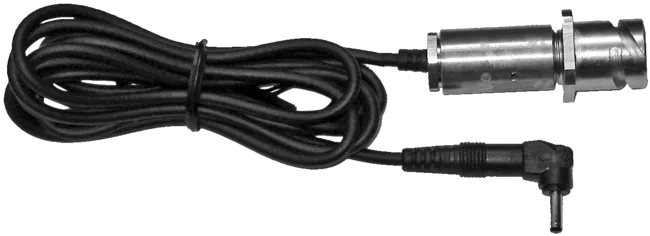

| External power supply | 11 V DC to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to 50° C |
| Weight | 3.4 kg |
| Guarantee | 24 month |
| Adjustment | possible in the field without having to open the device |
