Product Details
＋

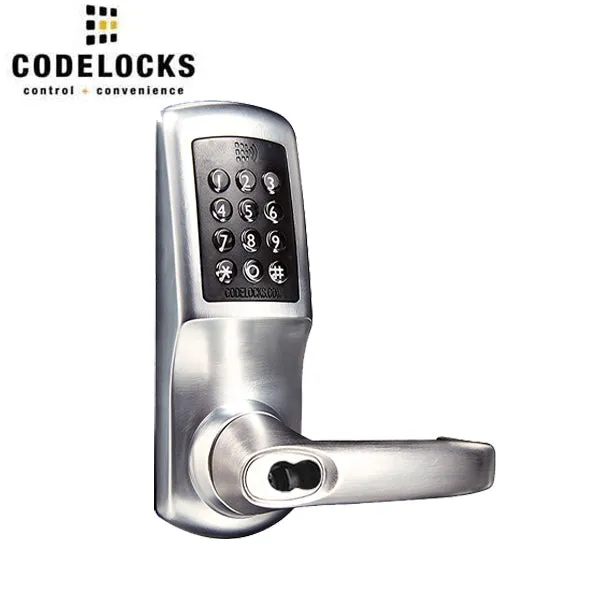

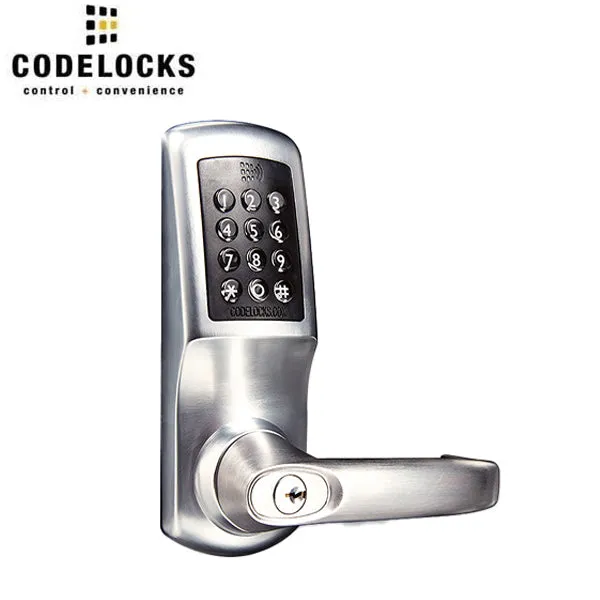

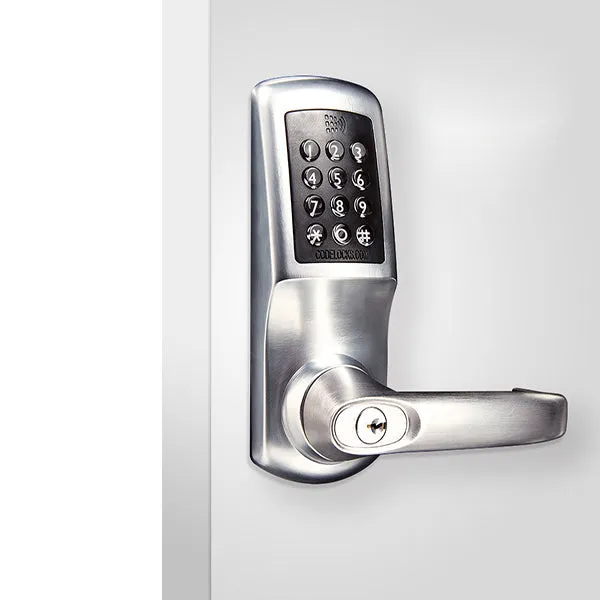

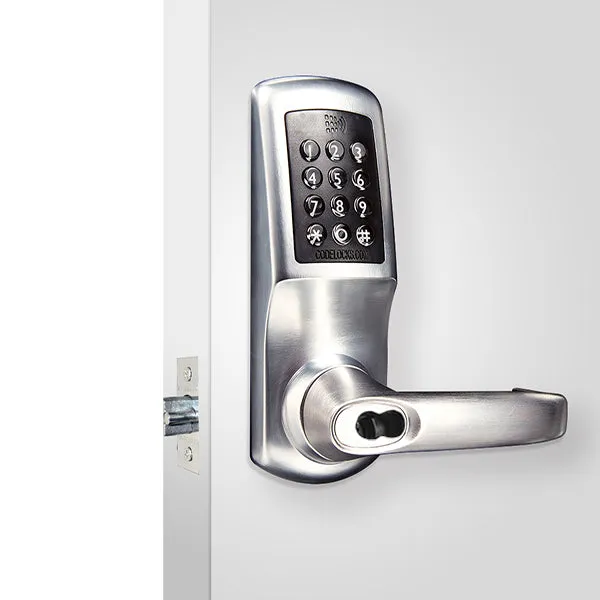

CDL-CL5550
Managing and operating locks has never been easier. The CL5550 ANSI Grade 2 Smart Lock offers advanced programming and access methods, as well as simple retrofit opportunities for easy upgrades from the CL5000 range.
Features:
- Optional IC Cylinder Prep: Prepped to receive a Small Format Interchangeable Core. SFIC Core is not included.
- Manage and operate locks via smartphone
- Keyless entry - no lost keys
- ANSI Grade 2
- 3-hour UL 10C certification (must be installed with UL fire rated lock case)
- 12 button back-lit keypad
- NetCode® generation technology
- Set up to 10 Code Free access periods
- Suspend and restore any or all clients
- Keypad indicates locked / unlocked status
- Tamper time out and low battery warning
- Personal wireless connectivity for management
- Simple upgrade from electronic range using same fixings
- Auxiliary connections enabling four modes of operation
Specifications:
| Brand |
Code Locks |
| Buttons |
3 x 4 |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Clients – Smart Cards | Up to 150 Client Smart Cards |
| Clients – Smart Phones | Up to 100 Phone Clients |
| Clients – User Codes | Up to 100 Client User Codes |
| Code Change Method |
Keypad (On Door) |
| Function | NetCode |
| Material | Zinc Alloy |
| Finish Color | Brushed Steel |
| Handed |
Non-handed |
| Keypad |
12 Stainless Steel Buttons |
| Memory |
Stores 350 different Clients |
| Netcode | Available via the App or online Portal |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Operations | 10,000 operations from 4 x AA batteries |
| Power | 4 x AA batteries |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| User Levels | Master, Sub Master, Standard User |
| User Types | Code, Card, Smartphone, NetCode® |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Fire Rated | UL/ULC Fire Rating 3 hours |
| Manufacturer Warranty | Limited Lifetime Warranty |
