Product Details
＋
CDL-CL515-BB

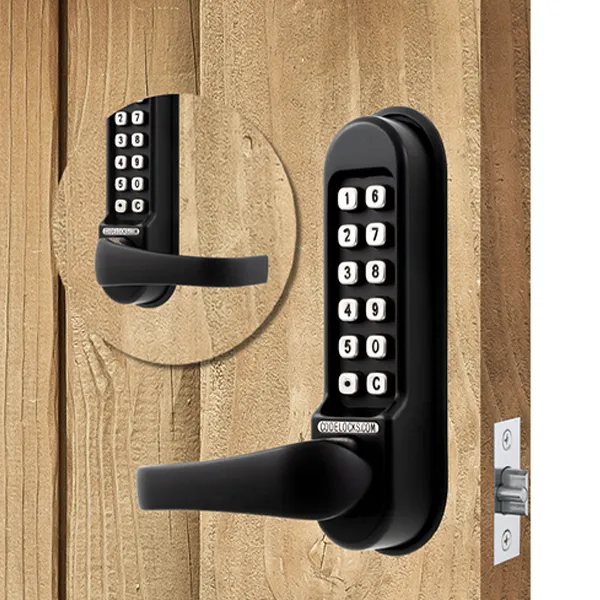

The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
Heavy duty tubular mortise latch. The outside lever handle will retract the latch after a correct code is entered. The spring loaded latchbolt will lock automatically when the door is closed.
Features:
- Code Free Passage Mode Function: The CL515 models provide a passage function. These models feature a black dot on the ‘Y’ button. When the ‘Y’ button is pressed along with a correct code input, the lever will retract the latch freely until disabled.
- Double Sided: Allows for coded entry on both sides of the door
- Large full size lever handles with return to door
- Ball shape knob available
- Suitable for internal and external use
- Tumbler alignment for easy code change
- Large three coil lever return spring suitable for high traffic use
- Neoprene seals included
- Codelocks Fire Kit Packs can be fitted to latch locks for 30 or 60 minute fire doors.
- Tested in accordance with BS EN 1634-1:2008
Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing*.
Specifications:
| Brand |
Code Locks |
| Buttons |
2 x 6 |
| Door Thickness | 1-3/4" 2-3/8" |
| Code Change Method |
Tumblers (Off door) |
| Codes |
Single code storage - 8,191 non-sequential combinations available |
| Material | Zinc Alloy |
| Finish Color | Marine Grade, Stainless Steel |
| Handed |
Non-handed |
| Keypad |
12 Stainless Steel Buttons |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Manufacturer Warranty | Limited Lifetime Warranty |
