Product Details
＋

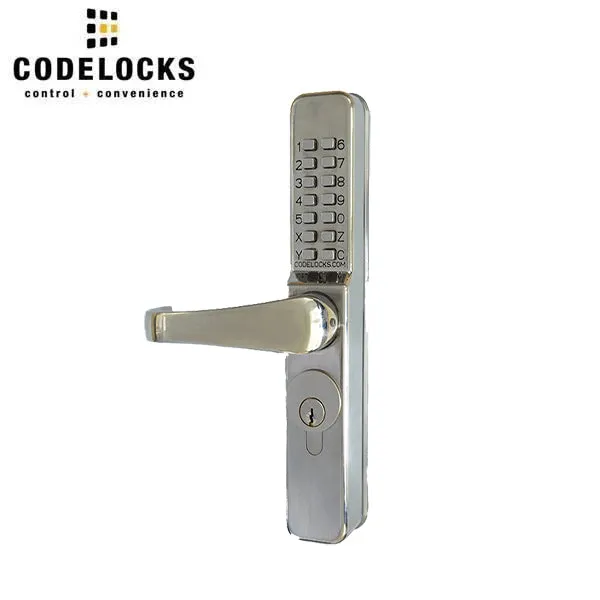

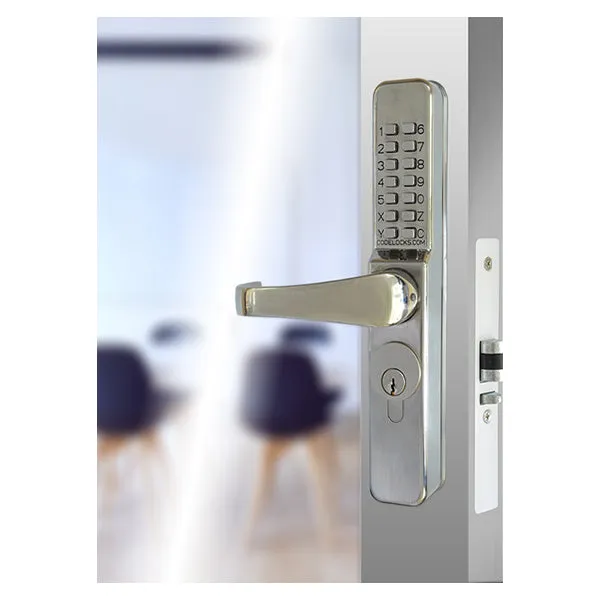

Narrow stile mechanical Codelock suitable for aluminum doors with threaded cylinder.
Features:
- Internal and external aluminium doors
- Mechanical narrow stile Codelock
- Medium duty lock
- Lever handle (standard) lock for doors hung on the left or right
- Ball shape knob and short lever handle available
- Complete with cams and threaded cylinder
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- Designed as a retrofit for Adams Rite 4510 lockcase or similar style ANSI round cylinder Mortise deadlatches.
Specifications:
| Brand |
Code Locks |
| Buttons |
2 x 7 |
| Door Thickness | 1-3/4" 2-3/16" |
| Code Change Method |
Tumblers (Off door) |
| Codes |
Single code storage - 8,191 non-sequential combinations available |
| Material | Zinc Alloy |
| Finish Color | Staineless Steel |
| Handed |
Non-handed |
| Keypad |
14 Stainless Steel Buttons |
| Latch Type | Tubular Latchbolt - 2 3/4" |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Manufacturer Warranty | Limited Lifetime Warranty |
