Product Details
＋

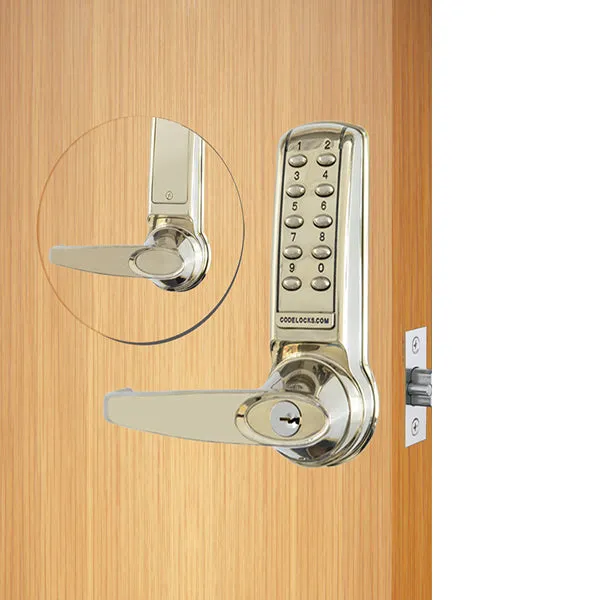

CDL-CL4210
The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code.
Features
- Mortise Latch
- Lever and knob handles available
- Over 200,000 operations from 4 x AA cells (supplied)
- Tamper time out and low battery warning
- Connections for remote release
- Alarm release included
- Internal and external applications
- Suited for residential, commercial and non-commercial
Specifications
| Brand | Codelocks |
| Buttons | 2 x 5 Programming |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 10 Individual stainless steel buttons |
| Latch Type | Mortise Latch |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 per set of 4 x AA batteries |
| Orientation | Vertical |
| Power | 4x AA |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
