Product Details
＋
CDL-CL415

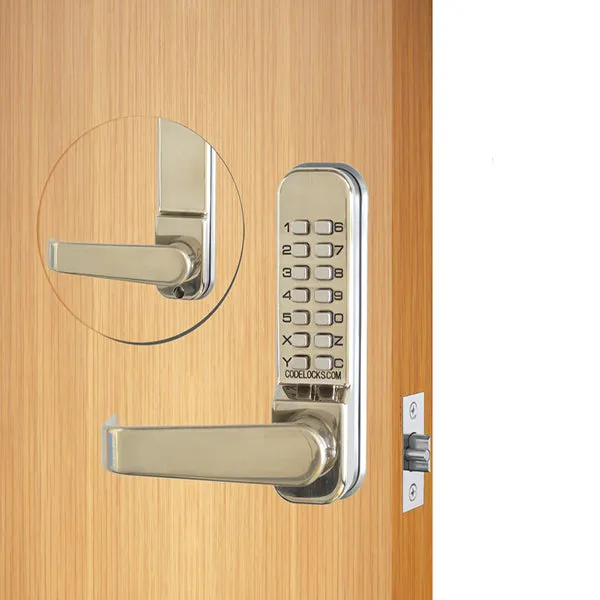

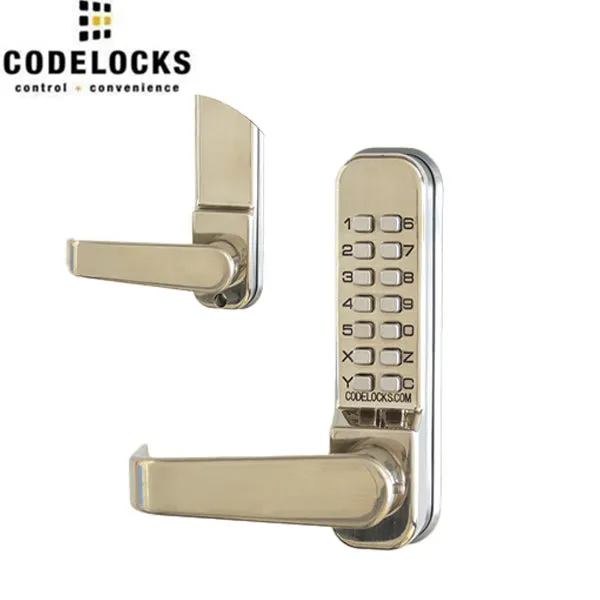

The CL415 is a medium-duty push button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.
Features:
- Internal doors and external doors
- Mechanical Codelock
- Medium duty tubular latch
- Lever handle lock for doors hung on the left or right
- Available in stainless steel, Marine Grade Black
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

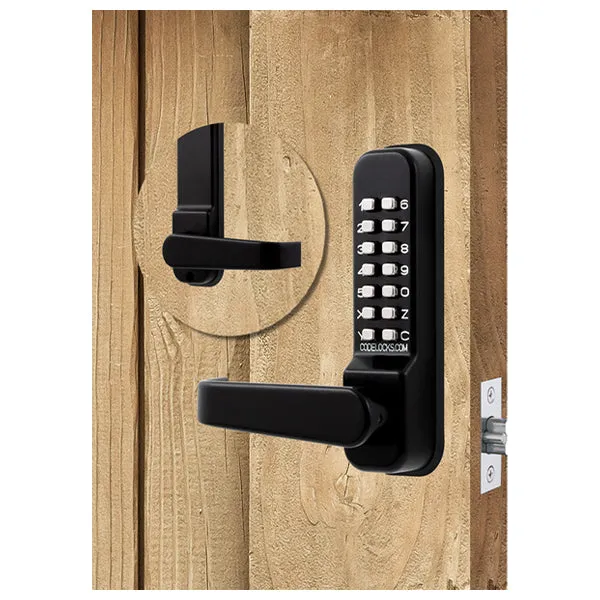

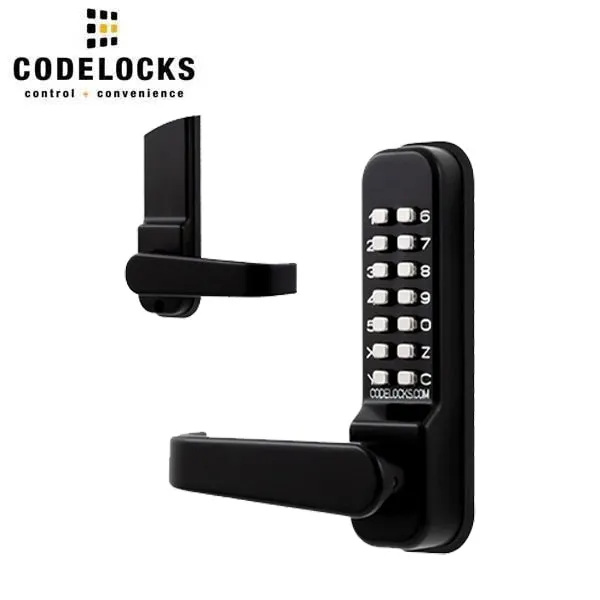

- Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
- Code Free Passage Mode Function: The CL415 models provide a passage function. These models feature a black dot on the ‘Y’ button. When the ‘Y’ button is pressed along with a correct code input, the lever will retract the latch freely until disabled.
Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing*.
| Brand |
Code Locks |
| Buttons |
2 x 7 |
| Code Change Method |
Tumblers (Off door) |
| Code Free Option |
Yes |
| Function | Passage Mode |
| Material | Zinc Alloy |
| Finish Color | Stainless Steel, Marine Grade Black |
| Handed | Non-handed |
| Keypad |
14 Stainless Steel Buttons |
| Latch Type | Tubular Latchbolt - 2 3/4" or 2 3/8" |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞) |
| Orientation |
Vertical |
| Manufacturer Warranty |
Limited Lifetime Warranty |
