CDL-CL2210

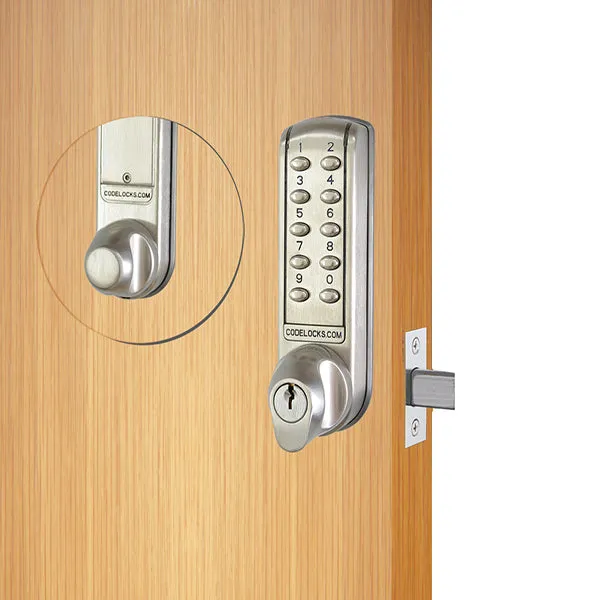

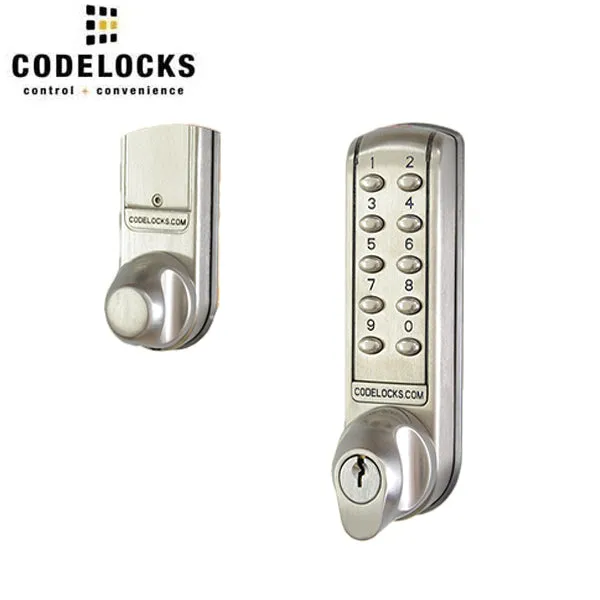

The CL2210 is a medium duty electronic lock. The outside knob turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights burn, the knob will retract the latchbolt. The key will open the door for management functions. Code Free Mode can be programmed at the keypad using the Master Code.
Features
- Mortise deadbolt
- Rapid retrofit for basic single code mechanical locks
- On door programming via Master Code in seconds
- Allows up to 80 User Codes
- Allows up to 10 One-Time User Codes
- Over 80,000 operations from 2 x AA cells (supplied)
- Non handed
- PVD low maintence finish
- Key override as standard
Specifications
| Brand | Codelocks |
| Buttons | 2 x 5 Programming |
| Code Change Method | Keypad (On Door) |
| Codes | Allows up to 10 one time User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 10 Individual stainless steel buttons |
| Latch Type | Mortise Latchbolt |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 80,000 operations per 2 x 1.5v AA batteries |
| Orientation | Vertical |
| Power | 2x AA |
| Spindle | Flat bar spindle, 5⁄16" (8mm) adaptor supplied |
| Suitable For | Internal, External |
| User Types | Code |
Dual Backset Latch 2 3/8" - 2 3/4"
