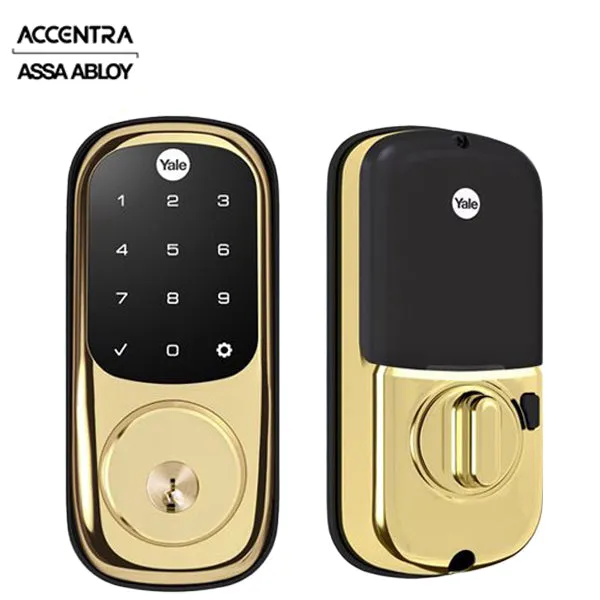

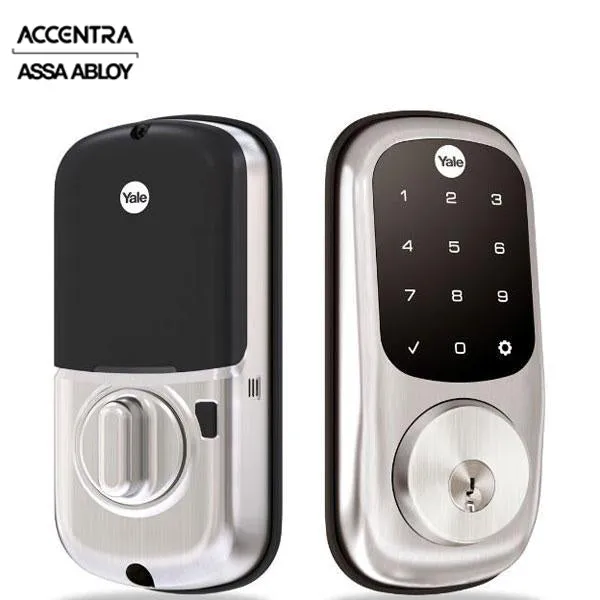

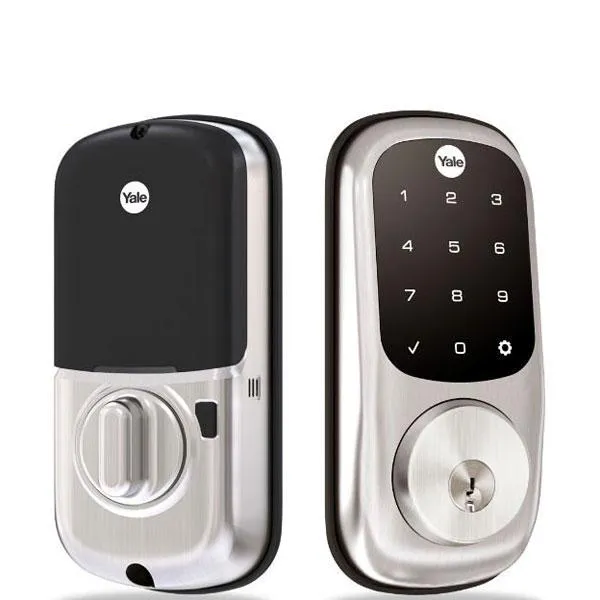

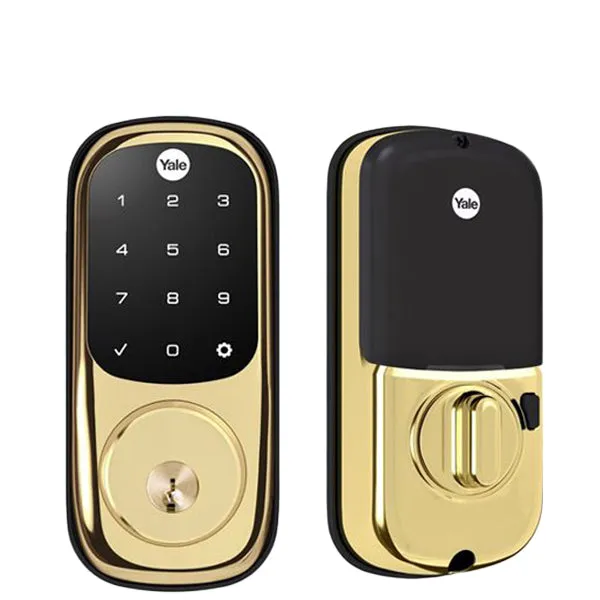

YALE-YARYRD226

Upgrade your deadbolt with the Assure Lock and enjoy the convenience of unlocking and locking your door using the backlit touchscreen keypad; you'll never have to carry around your keys again. Create unique entry codes for friends and family and remove codes whenever you need to. The lock is Grade 2 certified and backed Yale, the world's favorite lock since 1840.

Features

• Create up to 250 unique entry codes to share with friends and family (25 for Standalone models).
• Keypads wake with a touch and feature backlit numbers that won’t wear off.
• Key free model features a 9V battery back-up to prevent lockouts.
• Z-Wave Technology Optional
• • When upgraded with a Yale Smart Modules, lock and unlock remotely, view access history and share access rights from your smartphone with most Z-Wave systems or with the Yale
• Latch operated from outside by electronic touchscreen interaction, or outside by key, inside by T turn.
• Access app when using a Yale Access Module.



Specifications

Function	Keyed Touchscreen Deadbolt
Door Specs	2-1/8" Face Bore, 1" Edge Bore, 2-3/8" or 2-3/4" Backset
Door Thickness	1-3/8" to 2-1/4" (requires thin door gasket to support doors 1-3/8" - 1-3/4")
Strike	1" x 2-1/4" RC (Round Corner)
Latch	2-3/8" or 2-3/4" Adjustable
Latch Faceplate	1" x 2-1/4" RC (Round Corner)
Keyway	Schlage "C"
Keys	2
Keying	KD (Keyed Different)
Technology	Standalone, Z-Wave Plus
Finish	619 - Satin Nickel, 605 - Polished Brass
Certifications	A156.36 Grade 2, UL/cUL Listed
Manufacturer's Warranty	1 Year Electronic, Limited Lifetime Mechanical and Finish
