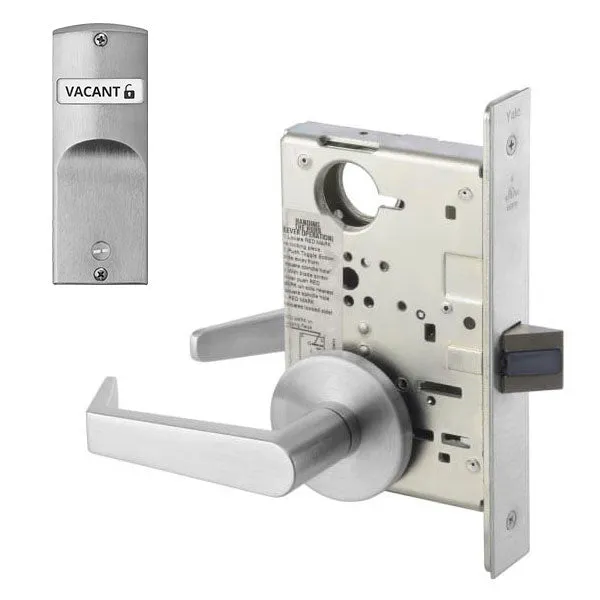

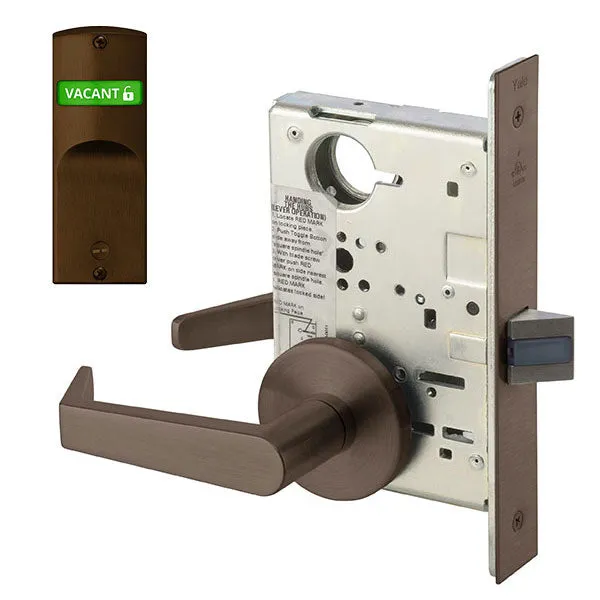

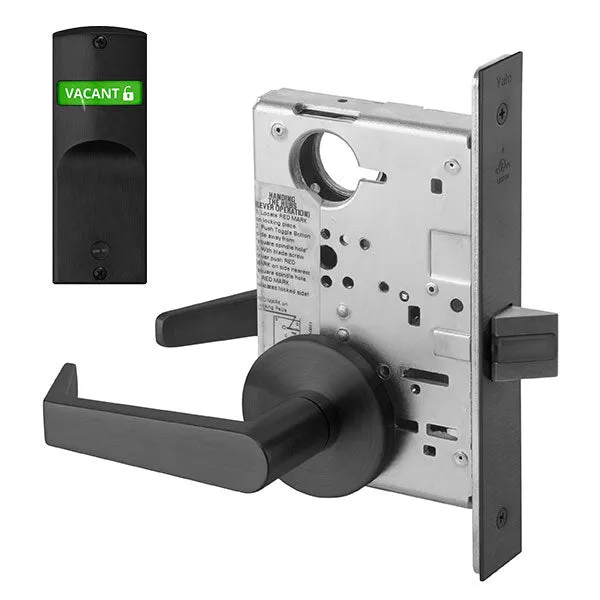

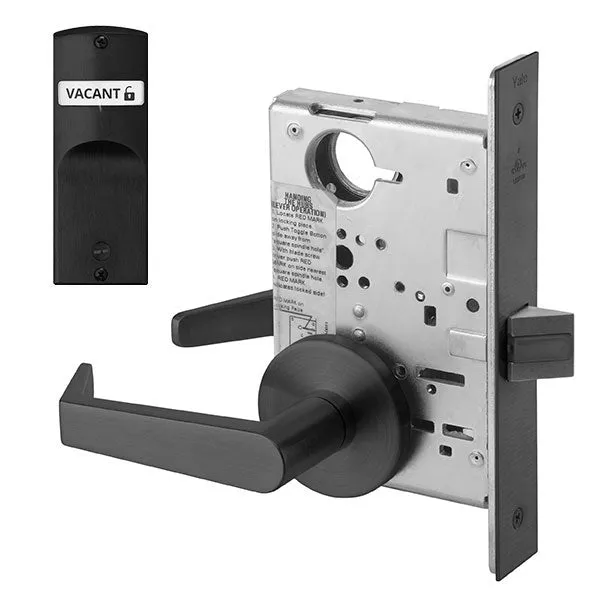

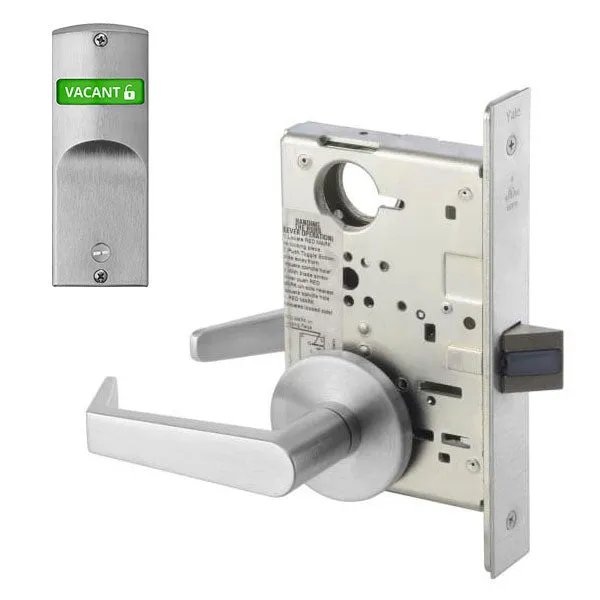

Accentra (formerly Yale) AUR8862FL ANSI/BHMA Grade 1 Certified Mortise Lock, Privacy, Bedroom, or Bath Function, Single Indicator Outside, Sectional Augusta AUR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.
8800 Series indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/ unlocked status of a room.

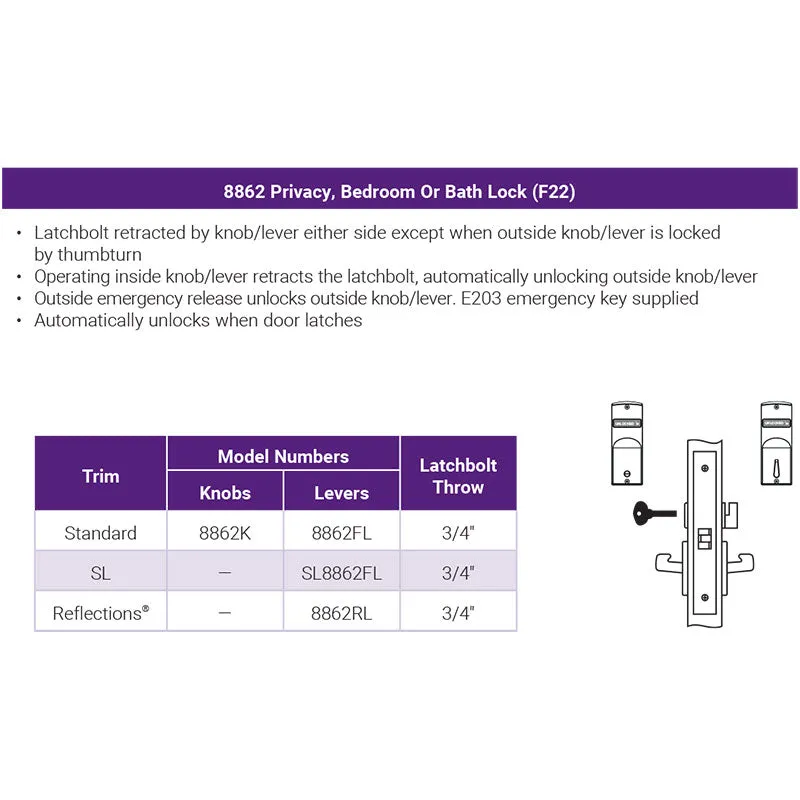

ANSI F22 – Privacy, Bedroom or Bath
- Latchbolt retracted by knob/lever either side except when outside knob/lever is locked by thumbturn
- Operating inside knob/lever retracts the latchbolt, automatically unlocking outside knob/lever
- Outside emergency release unlocks outside knob/lever. E203 emergency key supplied
- Automatically unlocks when door latches
Features
- Large viewing indicator window
- Patented curved design for viewing at multiple angles
- Highly reflective viewing window for increased safety
- Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL/cUL fire rated up to 3 hours
- Windstorm Certified (refer to local codes)
- 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Field reversible handing

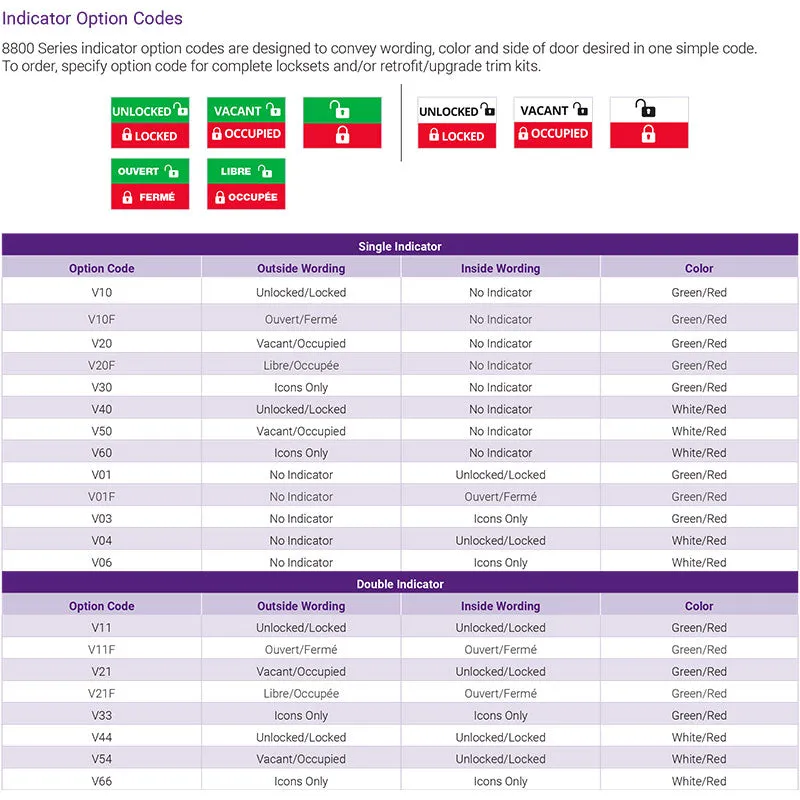

Indicator Option Codes
- V20 Single Indicator Outside (Vacant/Occupied in Green/Red)
- V50 Single Indicator Outside (Vacant/Occupied in White/Red)
Applications
- Restrooms
- Quiet rooms
- Nursing mother’s rooms
- Classroom doors
