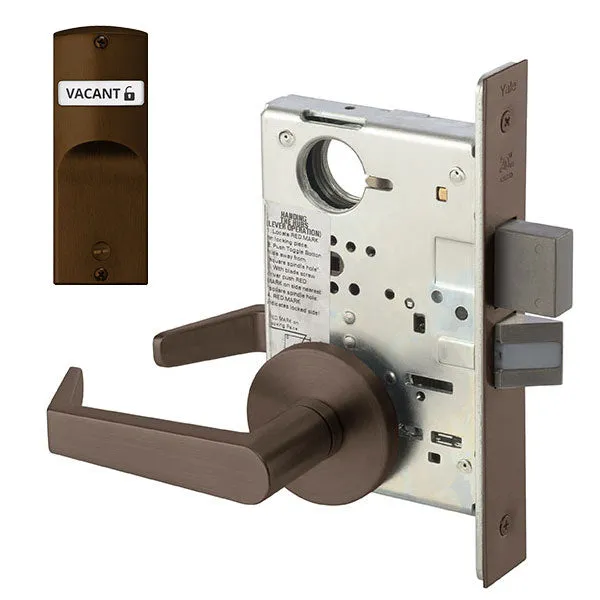

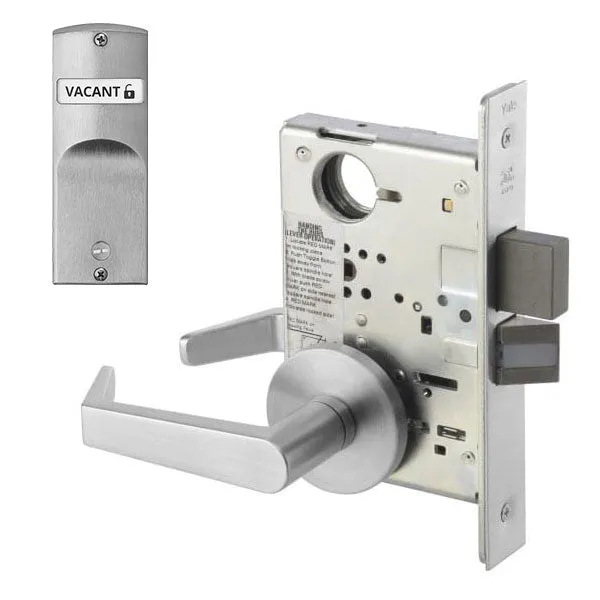

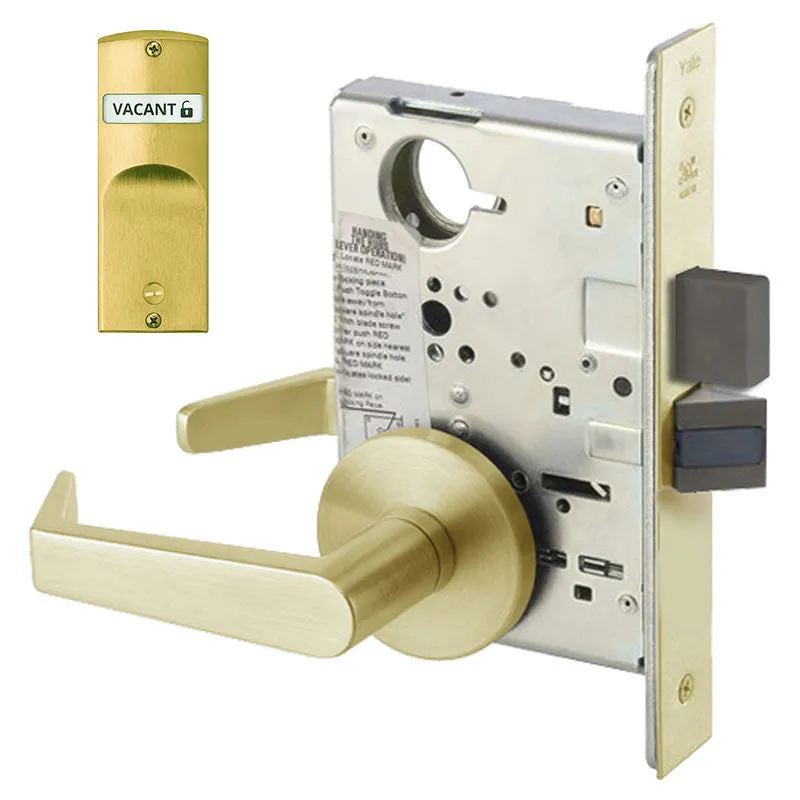

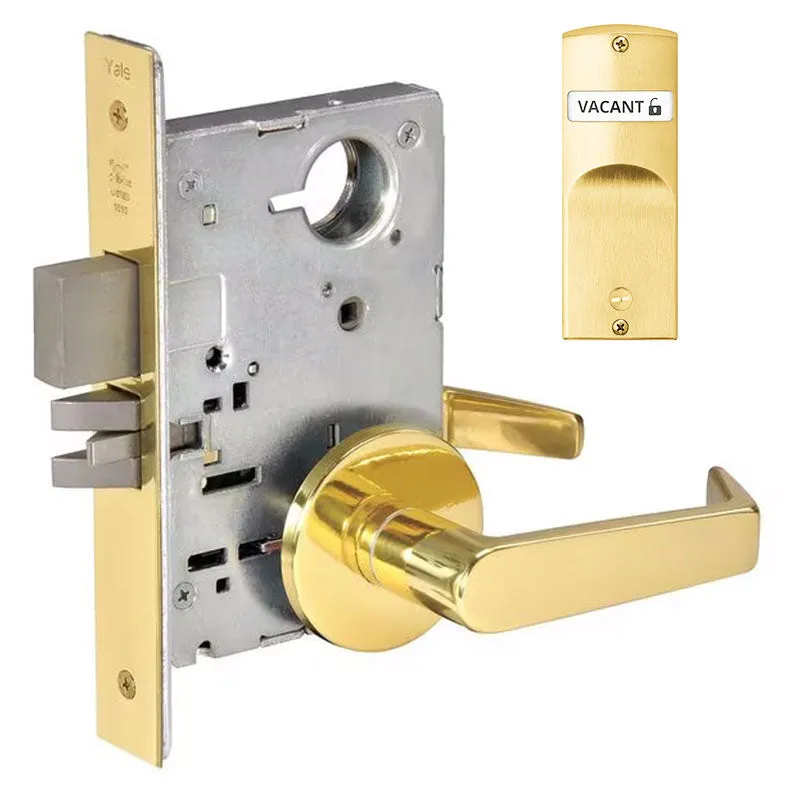

Accentra (formerly Yale) AUR8802FL ANSI/BHMA Grade 1 Certified Mortise Lock, Privacy, Bedroom, or Bath Function, Single Indicator Outside, Sectional Augusta AUR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

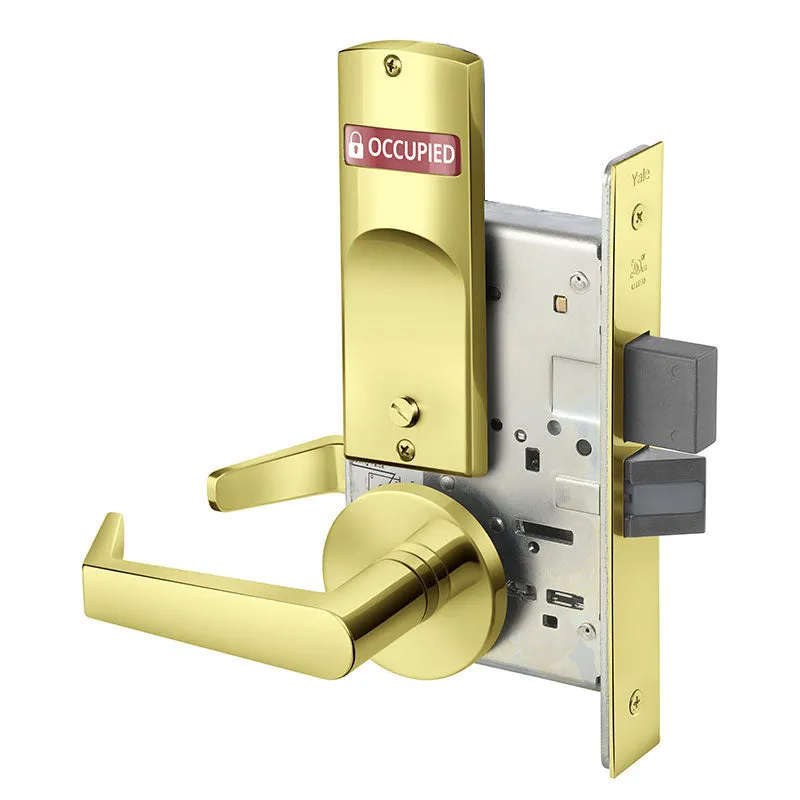

8800 Series indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/ unlocked status of a room.

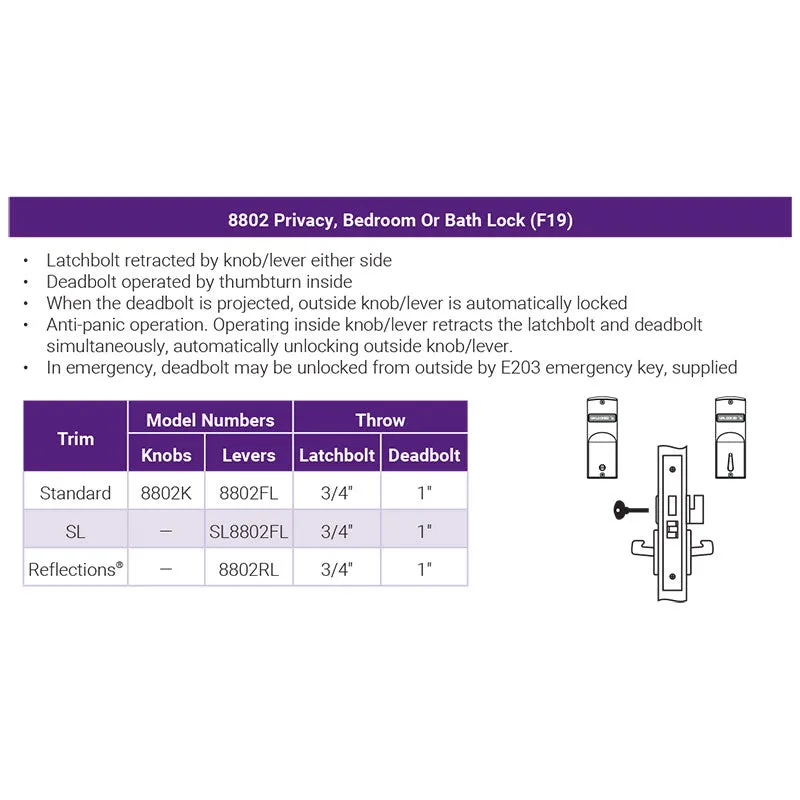

ANSI F19 – Privacy, Bedroom or Bath – Latchbolt retracted by lever either side. Deadbolt operated by thumbturn inside. When the deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever. In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied.
Features
- Large viewing indicator window
- Patented curved design for viewing at multiple angles
- Highly reflective viewing window for increased safety
- Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL/cUL fire rated up to 3 hours
- Windstorm Certified (refer to local codes)
- 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Field reversible handing

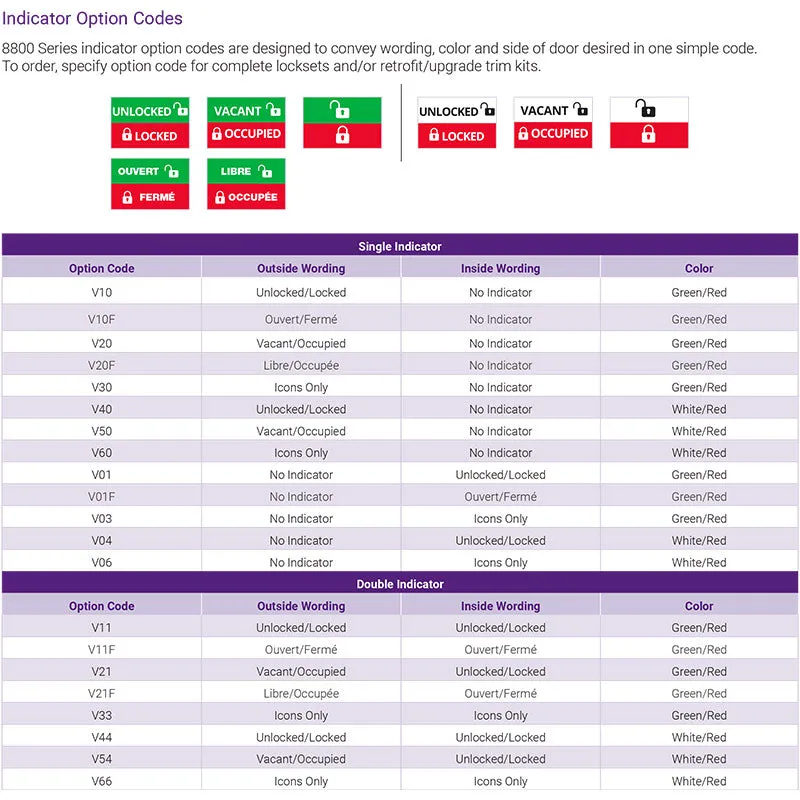

Indicator Option Codes

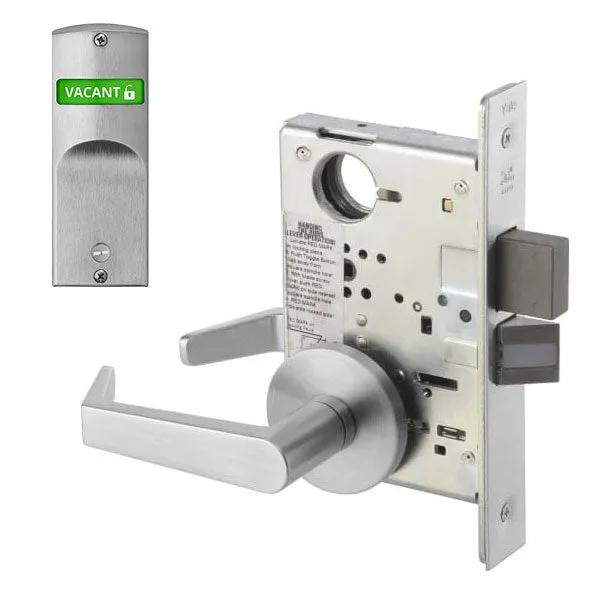

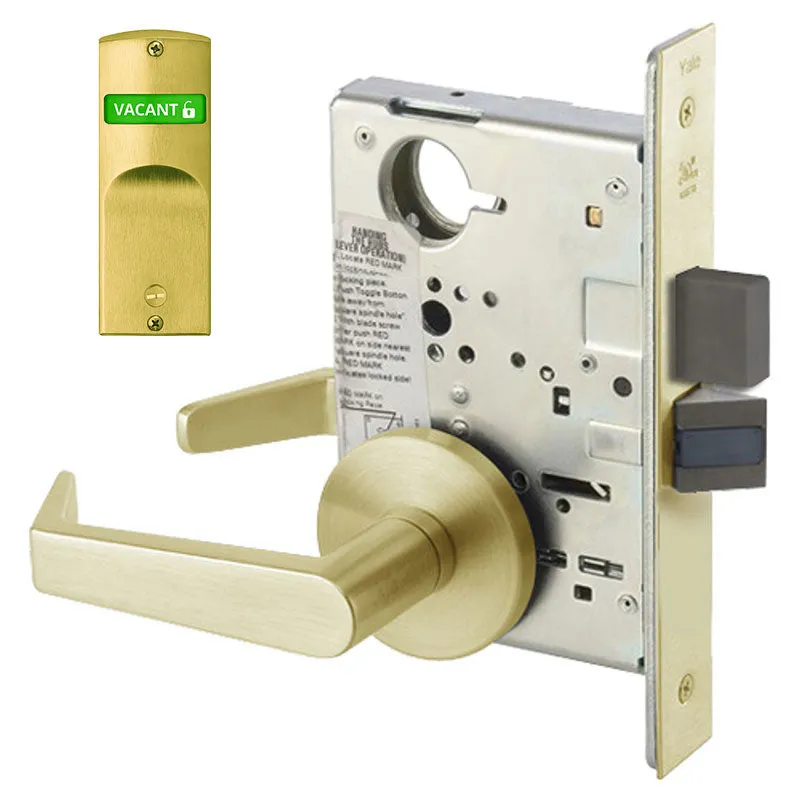

- V20 Single Indicator Outside (Vacant/Occupied in Green/Red)
- V50 Single Indicator Outside (Vacant/Occupied in White/Red)
Applications
- Restrooms
- Quiet rooms
- Nursing mother’s rooms
- Classroom doors
