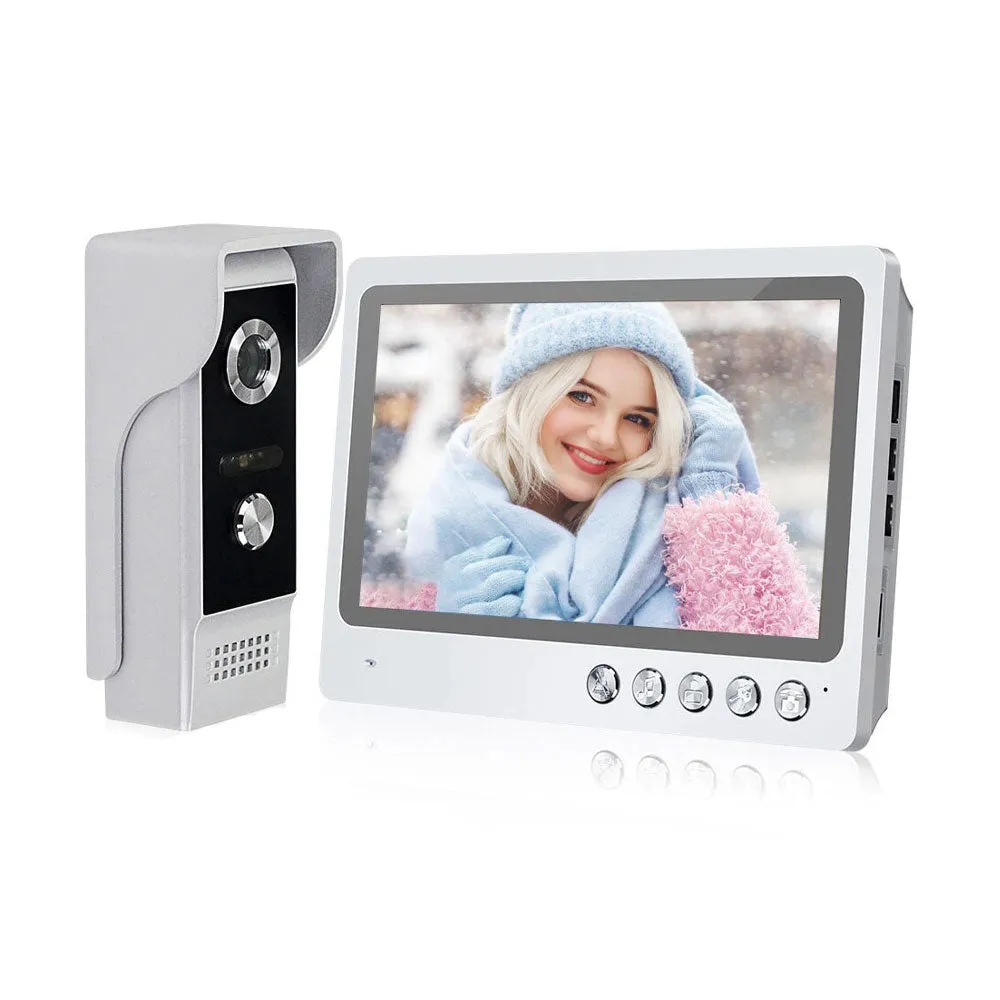

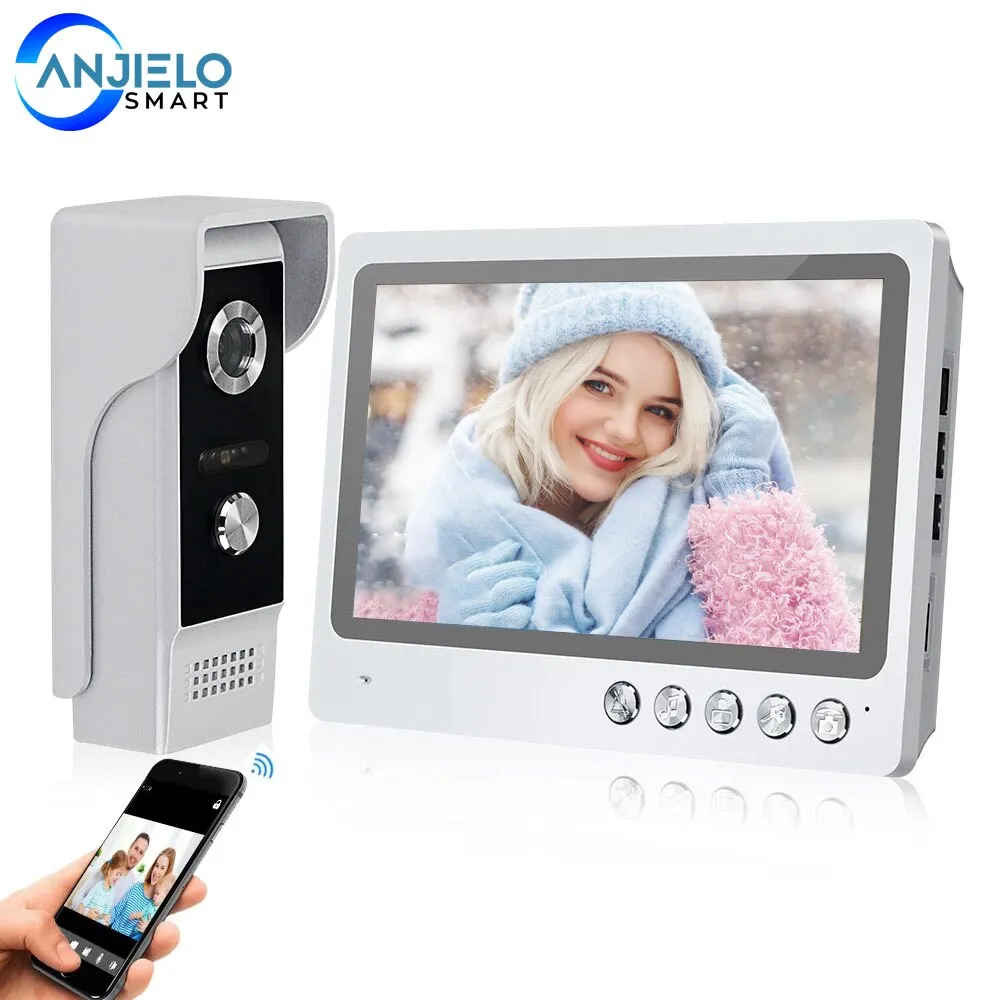

9 Inch WiFi Video Intercom System Wireless Video Doorbell with Night Vision Waterproof  Support 32G TF Card Video Recording







Product Details



We recommend the latest generation Wifi IP Video Intercom System for you

This intercom system supports connect multiple security devices for your front door, back door and garden.
You can monitor the all the cameras anytime via the phone, the cameras will automatically snapshot or recording when some press the doorbell, push the notification to your phone at once.







Innovative Wifi IP video intercom system

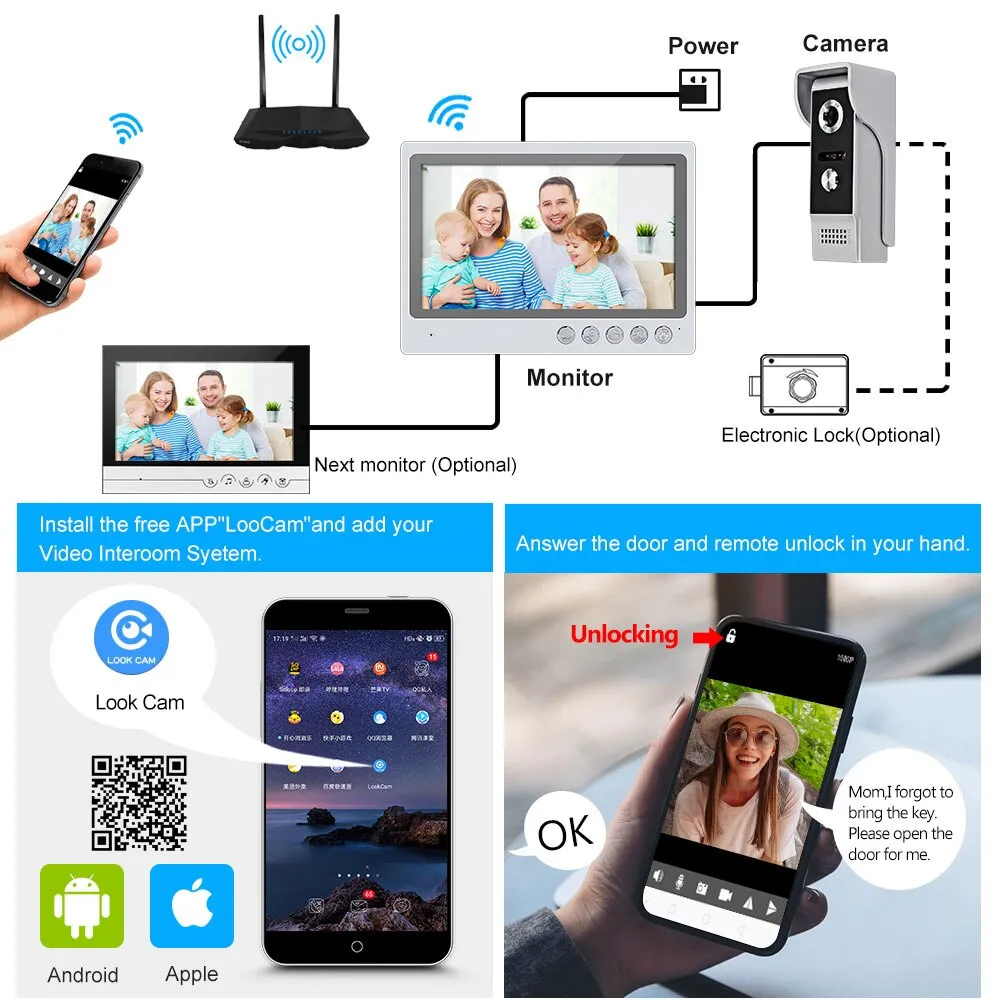

Your phone will receive the notification (APP: LooCam) when visitor press the doorbell, you can see, hear and speak to anyone at your door, even remote unlock via the app in everywhere. You can answer the door in your hand!









Multiple ringtones - free switch

The 25 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear voice or hear it too loud any more.









Handsfree Dual-way Intercom and Indoor Monitoring

When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s.

Support 4 mobile phones to receive push information at the same time, you can watch outside on the APP and call, take pictures, video, etc.

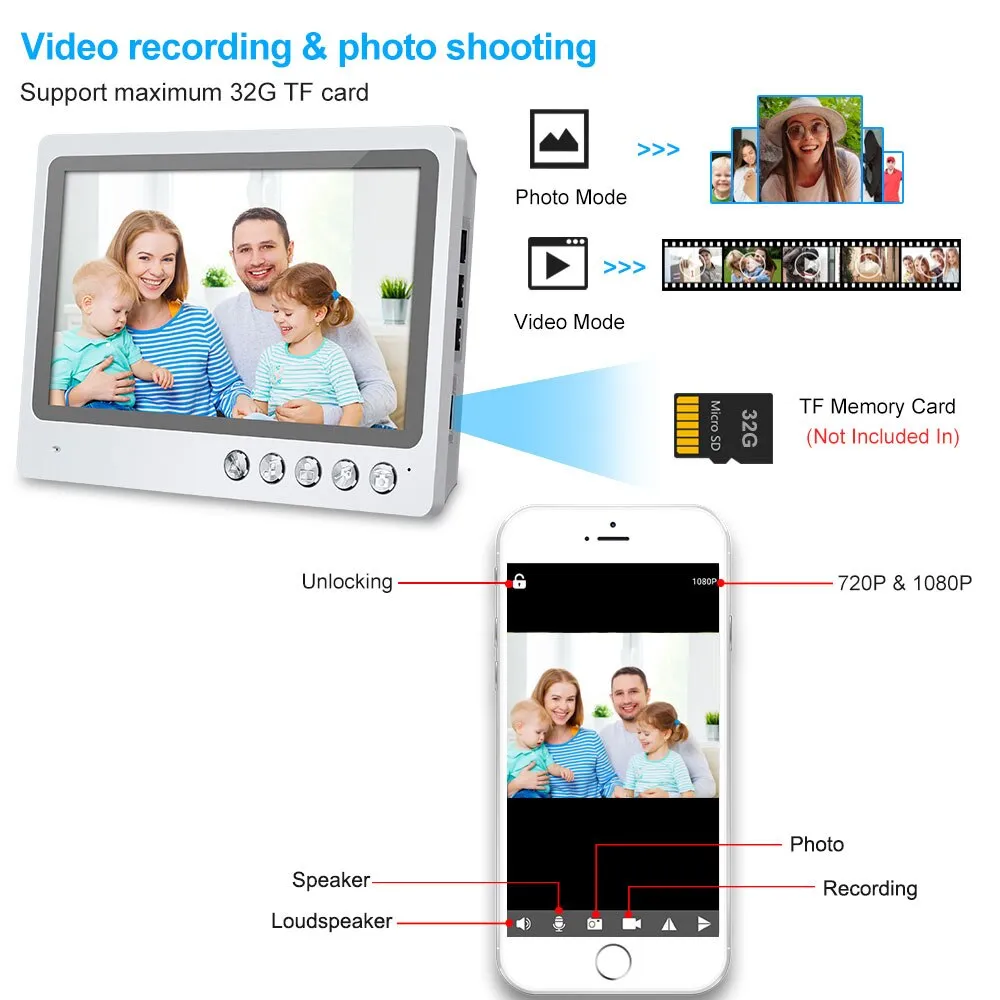

Support Automatically Snapshot or Recording function.

Support max 32G TF Card

The wifi video intercom system will automatically snapshot or record if visitor press the video doorbell

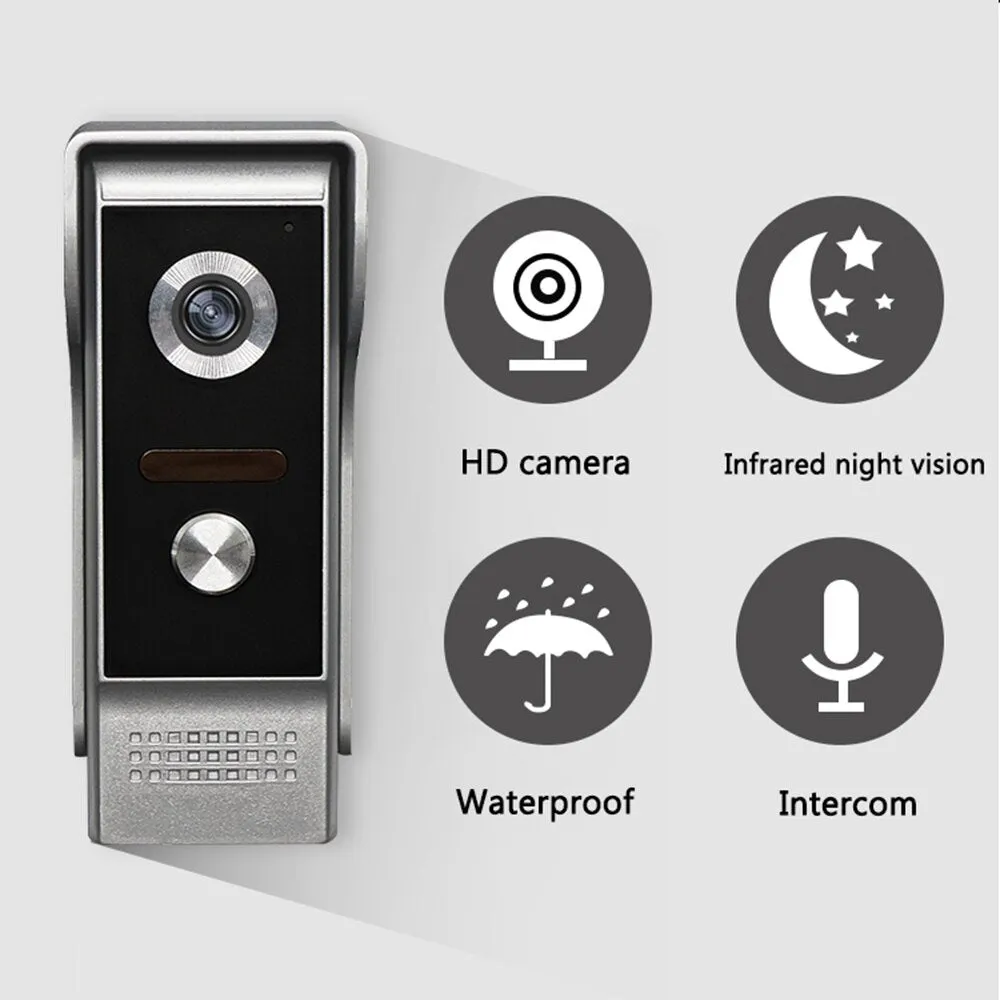

700TVL IR Night Vision Camera

The outdoor camera build-in 4 LED light. With this function, you can see outside no matter day or night. Keep your home more safer.







IP55 Waterproof and dustproof

The outdoor camera equip with a weatherproof cover, can be used outside even in very bad weather.









Can be installed a electric lock

You can open the door via indoor monitor and APP

(The locks need to buy extra)







Product Analysis

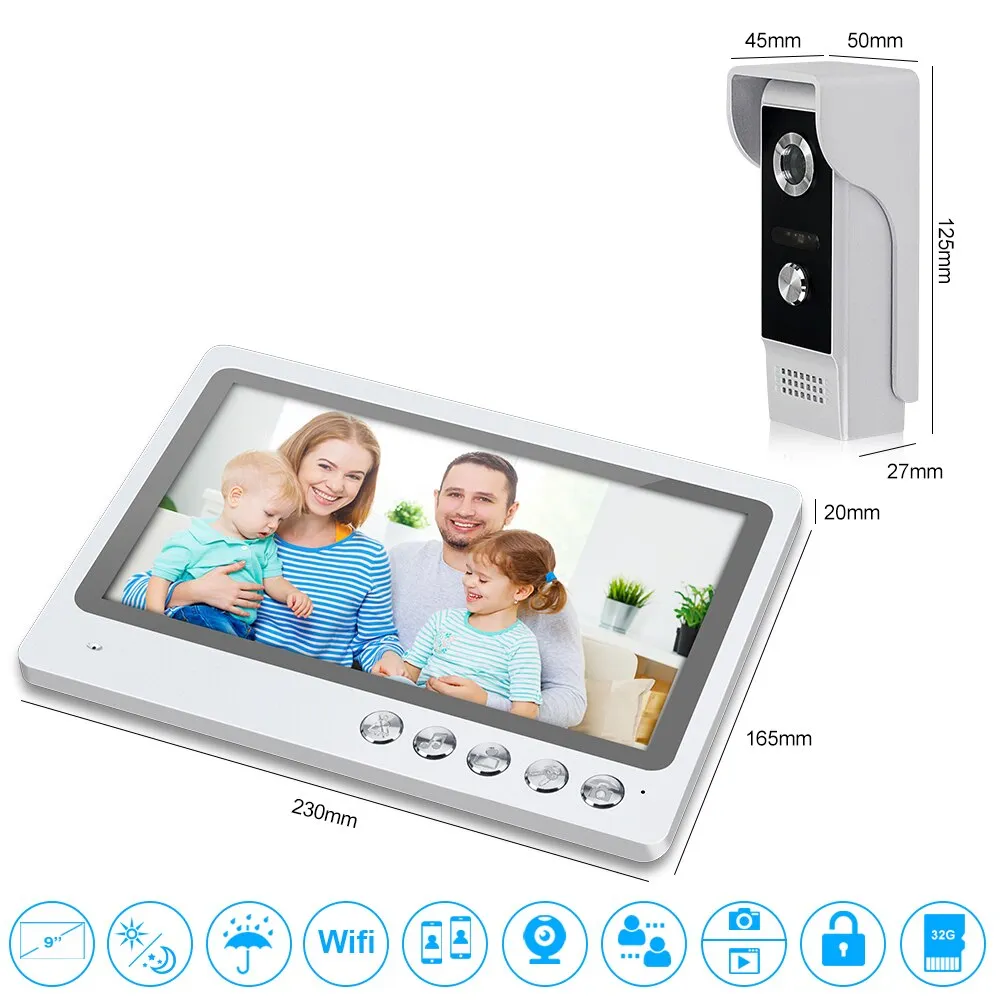

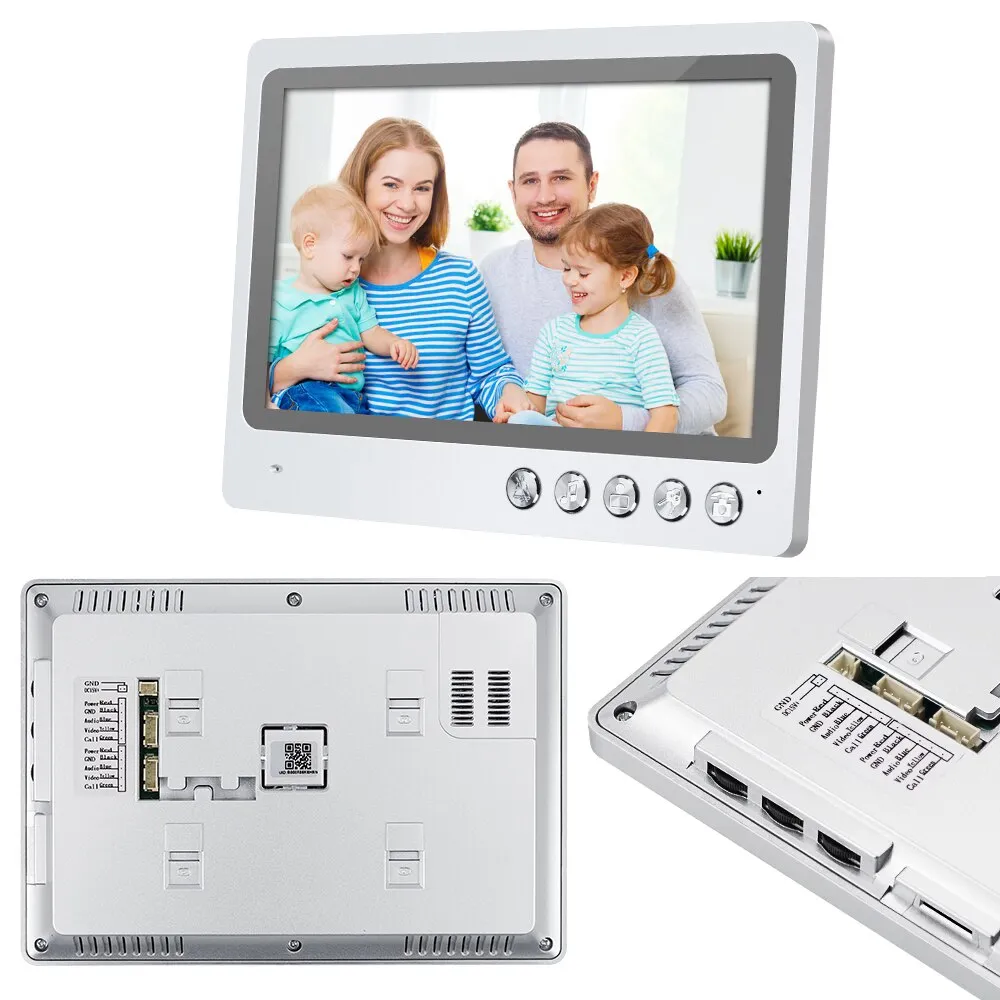

Product Specifications   Outdoor Camera Camera Resolution 700TVL Night Vision Up to 2 meters Working Temperature -20 °C ~ 60 °C View angle 90° Waterproof Come with a weaterproof cover Dimension 50mm(L) x 27mm(W) x 125mm(H) Installation Surface mounted Material Metal, Aluminum wire drawing  Wire System 4 Wire system Model XSL-M4 Indoor Monitor Screen 9" colour TFT-LCD   Effective Pixels 800 x 400 Wiring 4-wire pin end Room to Room intercom Yes Adapter Input AC100 - 240V 50-60HZ Adapter Output DC 15V 1500mA   Case ABS Plastic Working Temperature -35 °C ~ 55 °C Installation Wall mounted Dimension 230mm(L) x 165mm(W) x 20mm(H) Function Intercom, monitor, take pictures, video record, unlock the door Model XSL-V90S

 About Wifi connection:

Please note the wifi video intercom system does not mean you do not need wire any cables. The monitor support WIFI network, but the indoor monitor and doorbell is Wired, which make sure the power, the video work stable and you can extend longer distance for your front door, garden and second floor. Using the 4 wires cable to connect the camera to monitor.



Wiring Instruction

It is a 4-wire system, we will provide 5 meters 4 core cable to you to test the products. You need to buy longer cable when installing them.
(Please note the locks, power supply, and exit button at below photo is not included, if you need, please feel free to contact us)

   Wiring Diagram1





Wiring Diagram2









Package Including

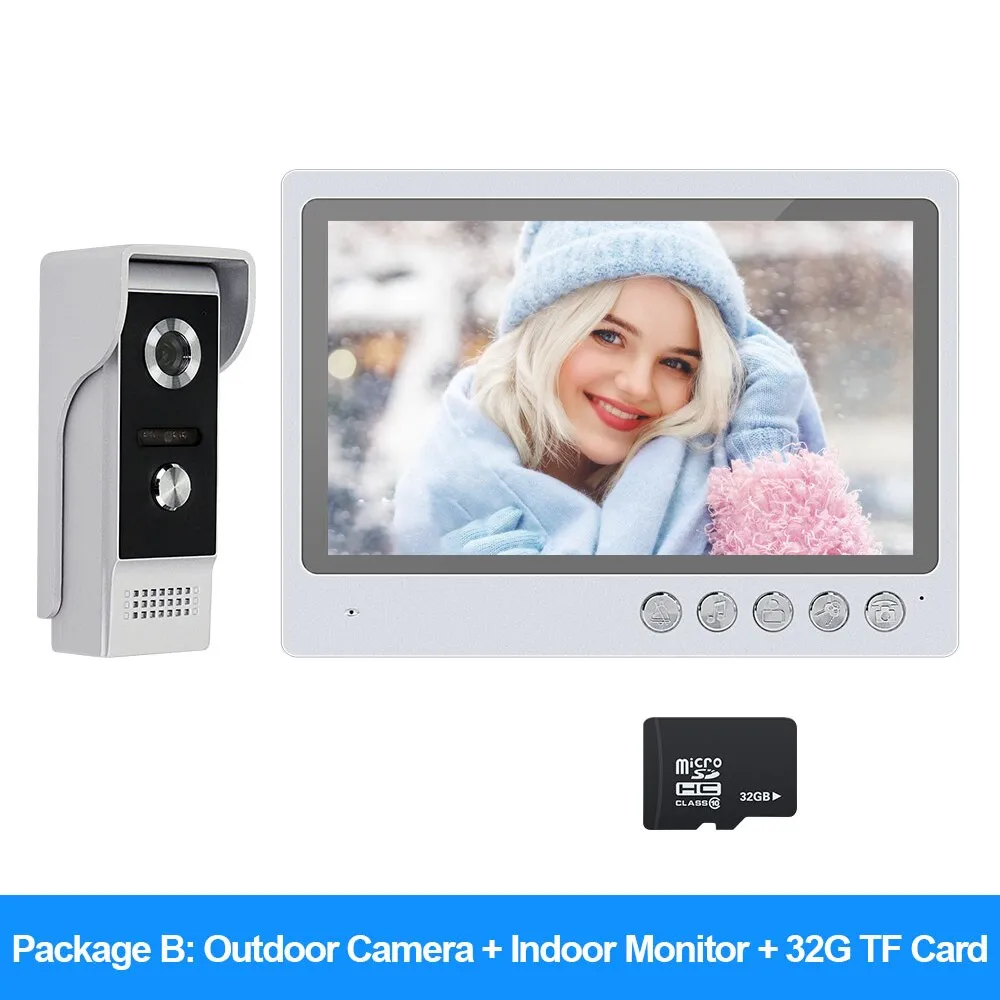

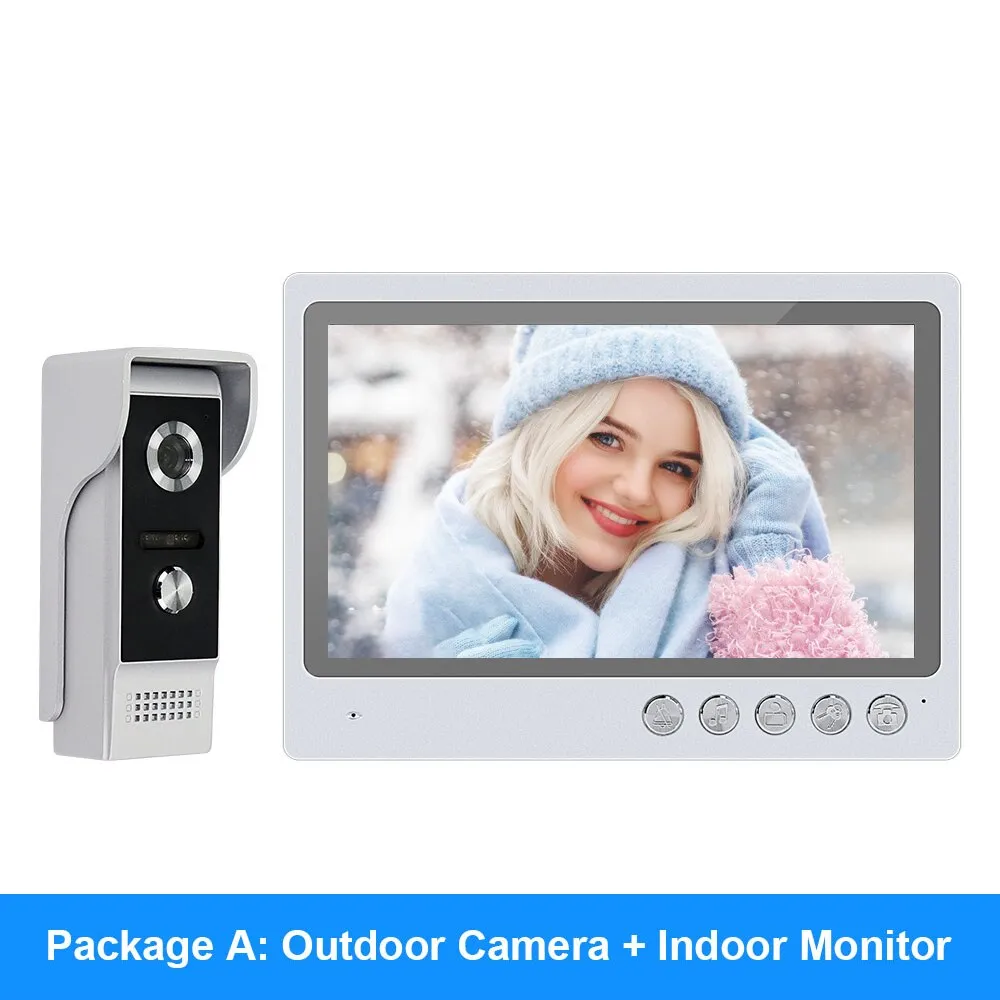

1x Outdoor unit (Camera) 1x Indoor Unit (Monitor) 1x Power adapter (US /AU / EU / UK plug) 1x Cable(5m) 3x Short Cable 1x Mounting plate 1x Bag of screws 1x User manual 1x 32G TF Card (optional)   Very Important:  Please leave us message which type of the power plug you want, otherwise, we will send EU type by default.
